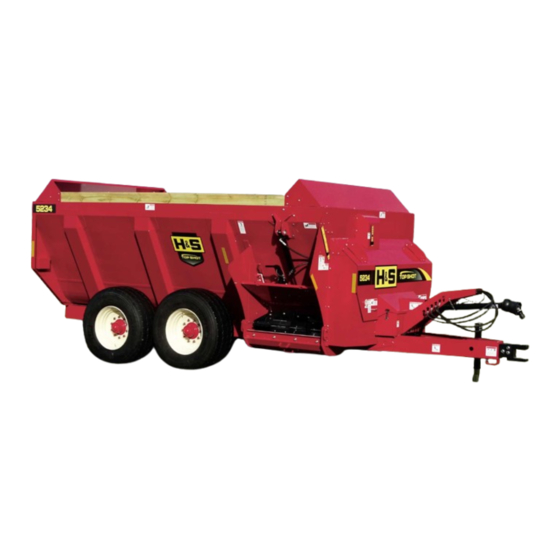

H&S 5234 Operator's Manual

Top shot spreader

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

Top Shot

SPREADER

READ AND UNDERSTAND THIS MANUAL BEFORE

OPERATING THIS EQUIPMENT. UNSAFE OPERATION

OR MAINTENANCE OF THIS EQUIPMENT CAN RESULT

IN SERIOUS INJURY OR DEATH.

Starting Serial #322TS34001

5234

WARNING

Part#76942

O O

P P

A A

E E

N N

R R

U U

A A

T T

L L

O O

R R

S S

Rev. #04

HSMFG0123

Table of Contents

Summary of Contents for H&S 5234

Page 1 5234 5234 Top Shot Top Shot SPREADER SPREADER WARNING WARNING READ AND UNDERSTAND THIS MANUAL BEFORE READ AND UNDERSTAND THIS MANUAL BEFORE OPERATING THIS EQUIPMENT. UNSAFE OPERATION OPERATING THIS EQUIPMENT. UNSAFE OPERATION OR MAINTENANCE OF THIS EQUIPMENT CAN RESULT OR MAINTENANCE OF THIS EQUIPMENT CAN RESULT IN SERIOUS INJURY OR DEATH.
Page 2: Table Of Contents
CONTENTS Warranty ..............1 Manufacturer’s Statement .
Page 3: Warranty
H&S WARRANTY H&S Manufacturing Co., Inc. (“H&S”) warrants this product to be free from defect in material and workmanship. Except as noted below, this warranty term is twelve (12) months on parts and labor, and twenty-four (24) months on parts only from the date of delivery of the product to the original purchaser by an authorized H&S dealer.
Page 4: Manufacturer's Statement
MANUFACTURER’S STATEMENT Congratulations on your selection of an H&S product. Your new H&S product has been manufactured of the finest quality materials and components. The performance you receive from your machine is largely dependent upon how well you read, understand this manual, and apply this knowledge. There is a right and a wrong way to do everything.
Page 5: Warranty Registration Form
WARRANTY REGISTRATION • Date of Purchase: __________________________ • Purchaser Name: ________________________________________________ • Street Address: _________________________________________________ • City: __________________________________________________________ • State: __________________________________ Zip: ____________________ • Phone Number: _________________________________________________ • E-mail Address: _________________________________________________ • Product: _______________________________________________________ • Model Number: _________________________________________________ • Serial Number: __________________________________________________ •...
Page 6 Intentionally Left Blank...
Page 7: Dealer Pre-Delivery Checklist
DEALER PRE-DELIVERY CHECKLIST AFTER COMPLETION, DEALER SHOULD REMOVE AND RETAIN FOR RECORDS After the Top Shot has been completely set up, check to be certain it is in correct operating order before delivering to the customer. The following is a list of points to inspect. Check off each item as you have made the proper adjustments and found the item operating satisfactorily.
Page 8 Intentionally Left Blank...
Page 9: Dealer Delivery Checklist
DEALER DELIVERY CHECKLIST AFTER COMPLETION, DEALER SHOULD REMOVE AND RETAIN FOR RECORDS This checklist that follows is an important reminder of valuable information that should be passed on to the customer at the time this machine is delivered. Check off each item as you explain it to the customer. This delivery checklist, when properly filled out and signed, assures the customer that the Pre-Delivery Service was satisfactorily performed.
Page 10 Intentionally Left Blank...
Page 11: Safety Information - Be Alert Symbol
SAFETY INFORMATION ALERT! YOUR SAFETY IS INVOLVED. THIS SYMBOL IS USED THROUGHOUT THIS BOOK WHENEVER YOUR PERSONAL SAFETY IS INVOLVED. TAKE TIME TO BE CAREFUL. REMEMBER: THE CAREFUL OPERATOR IS THE BEST OPERATOR. MOST ACCIDENTS ARE CAUSED BY HUMAN ERROR. CERTAIN PRECAUTIONS MUST BE OBSERVED TO PREVENT THE POSSIBILITY OF INJURY OR DAMAGE.
Page 12: Explanation Of Safety Signs
SAFETY INFORMATION Keep signs in good condition. Immediately replace any missing or damaged signs. RECOGNIZE SAFETY INFORMATION This is the safety alert symbol. When you see this symbol on your machine or in this manual, be alert to the potential for personal injury.
Page 13: Safety Decals
SAFETY INFORMATION -11-...
Page 14 SAFETY INFORMATION -12-...
Page 15: Safety Information - Warning - Owner Must Read And Understand
TRACTORS: This Operator’s Manual uses the term ″Tractor″ when identifying the power source. W A R N I N G TO PREVENT SERIOUS INJURY OR DEATH BEFORE YOU ATTEMPT TO OPERATE THIS EQUIPMENT, READ AND STUDY THE FOLLOWING INFORMATION. IN ADDITION, MAKE SURE THAT EVERY INDIVIDUAL WHO OPERATES OR WORKS WITH THIS EQUIPMENT, WHETHER FAMILY MEMBER OR EMPLOYEE, IS FAMILIAR WITH THESE SAFETY PRECAUTIONS.
Page 16: Cap Screw Torque Values
CAP SCREW TORQUE VALUES The specifications below are the torque values for fasteners as it adheres to the SAE torque value standards. All fasteners should be torqued to the proper values found in the figures below unless otherwise specified by the engineering drawing. •...
Page 17: Hydraulic Torque Specs
HYDRAULIC FITTING TORQUE SPECIFICATIONS -15-...
Page 18 HYDRAULIC FITTING TORQUE SPECIFICATIONS -16-...
Page 19: Set-Up & Assembly
SET-UP & ASSEMBLY WARNING: Some photographs used in the following pages show guards or shields removed for clarification. Never operate machine until these guards or shields are in proper operating position. NOTE: Determine right or left side of the Manure Spreader by viewing it from the rear. If instructions or parts lists call for hardened bolts, refer to the Cap Screw Torque Values page to identify.
Page 20: Transporting
TRANSPORTING TRANSPORT LIGHTING & REFLECTORS Transport lighting with a 7-pin plug is standard equipment on all Top Shot Models. The lighting system is to be connected to the 7-pin power receptacle (per SAEJ560B) on your tractor. If your tractor is not equipped with the proper receptacle, see your tractor dealer for details.
Page 21: Preparing For Operation
PREPARING FOR OPERATION PREPARING Top Shot Properly lubricate the Top Shot, check automatic oiler level, and fill if necessary before operating. Refer to Lubrication Section of this Operator’s Manual for locations. If theTop Shot is going to be operated in freezing temperatures, review and comply with recommendations in the Operation Chapter under the Winter Operation section.
Page 22 PREPARING FOR OPERATION The Top Shot is equipped with a constant velocity telescoping PTO drive shaft. This constant velocity capability results in a smooth, quiet running drive line without power fluctuation. The Top Shot can only be properly hooked-up to a tractor which has PTO and hitch dimensions conforming to ASAE Standard S203.
Page 23: Operation
OPERATION EMERGENCY SHUTDOWN In case a foreign object becomes lodged in the expeller or auger area, disengage the PTO. Stop the tractor engine, remove ignition key, and allow all mechanisms to stop before cleaning or working on the machine. If an object is lodged inside the tank, block-up the discharge gate and raise the conveyor auger before attempting to remove the object.
Page 24 OPERATION APPLICATION RATE The side discharge style Top Shot features a hydraulically operated discharge gate to control the material flow out of the tank and into the expeller. Several factors influence the rate of discharge and the spread pattern. These factors include: ground speed, type or consistency of discharge material, PTO RPM, and discharge gate opening.
Page 25 OPERATION UNLOADING & SPREADING Packed Material To unload and spread packed material and prevent unnecessary stress on the drive line components, observe the following guidelines: 1. Make sure the auger is completely lowered. 2. Engage the tractor PTO at as low an RPM as possible. Then, slowly bring the PTO up to the rated RPM.
Page 26 OPERATION DRIVE CHAIN TOLERANCES Drive chains must be kept in adjustment within the following tolerances: Jackshaft Chain Spring Length - 9 3/4″ to 10 1/4″ Auger Chain Spring Length - 13 1/2″ to 14″ Expeller Drive Chain Deflection - 1/2″ to 3/4″ AUGER &...
Page 27 OPERATION CONTROLS & SAFETY EQUIPMENT Top Shots are provided with several features for operator safety and convenience. Guards & Shields Whenever possible and without affecting the operation of the Top Shot, guards, shields and/or hinged shields have been used on this equipment to protect potentially hazardous areas.
Page 28 OPERATION Jack A jack is furnished with the Top Shot to support the machine when the tractor is disconnected and to adjust the hitch clevis to the tractor drawbar for hookup. The jack should never be used to support a loaded Top Shot. When the jack is not being used to support the Top Shot, it should be relocated...
Page 29: Adjustments
ADJUSTMENTS DRIVE CHAIN IDLERS Expeller Drive Chain Idler The expeller drive chain is tensioned with an adjustable sprocket idler. The chain is properly tensioned when the chain can be deflected 1/2″ to 3/4″ (13 to 19 mm) with hand pressure. NOTE: If an idler fails to maintain proper tension, replace the worn chain.
Page 30 ADJUSTMENTS FRONT & REAR AUGER SLIDES The front and rear auger slide assemblies are retained by adjustment plates with diagonal slots. To adjust, loosen retaining hardware and drive the plates downward with a hammer until the slide assembly is snug against the tank, then retighten the retaining hardware. Grease the slide assembly to ensure a leak-free seal.
Page 31: Service
SERVICE EXPELLER Periodically inspect the expeller teeth for wear or damage. Damaged, broken, or missing expeller teeth will cause excessive machine vibration. Consult with your local H&S dealer for additional ordering information. AUGER & EXPELLER SPEED OPTIONS The expeller input drive sprocket can be changed by raising the auger and then removing the indicated sprocket which is retained by a snap ring and set screws.
Page 32 SERVICE TIRES & WHEELS Check the tire pressure after every 10 hours of operation. Tires should be inflated to the appropriate pressure listed in the table. Tire Pressure 21.5L x 16.1 – 18 Ply 445/65R22.5 49x19x20 700/50x22.5 Wheel lug torque should be checked after every 50 hours of operation and tightened to the appropriate torque.
Page 33: Optional Equipment
OPTIONAL EQUIPMENT NOTE: The optional features & accessories listed in this chapter are shipped with separate instruction for installation, as applicable. AUGER SPEED OPTIONS Several different drive sprockets are available to change auger speeds to various spreading needs. Sprockets are available as service parts. EXPELLER SPEED OPTIONS Several different drive sprockets are available to change expeller speeds to various spreading needs.
Page 34: Lubrication Guide
LUBRICATION GREASING There are numerous grease fittings on the Top Shot that must be lubricated properly and often with a high-quality grease. Replace any missing or plugged grease fittings. Become familiar with all lubrication points and establish a routine to ensure complete lubrication of the Top Shot. Wipe dirt from the fittings before greasing to prevent the dirt from being forced into the bearing or pivot.
Page 35 LUBRICATION DRIVE CHAINS The drive chains are lubricated by a automatic chain oiler using 10W-30 oil. Any time that the discharge door is raised, a specified amount of oil is sent to the brushes on each of the chains. The oiler is adjust- able to set the amount that is being discharged.
Page 36 LUBRICATION Grease Fitting Locations - Grease Every 10 Hours (or Daily) 1. Main Auger Thrust Washer 2. Main Auger Front Bearing 3. Front Auger Slide Plate (4 Remote Zerks) 4. Auger Jackshaft (Zerk in Sprocket Hole) 5. 2 Idler Arms (1 Zerk on each) 6.
Page 37 LUBRICATION Grease Fitting Locations - Grease Every 10 Hours (or Daily) Rear Expeller Bearing Rear Auger Bearing Expeller Pan Release Pivot Rear Auger Slide Plate (4 Zerks) WHEEL BEARING LUBRICATION - GREASEABLE HUBS Grease wheel bearings on the hub zerk as needed depending on amount of travel. Wheel Pivot (Each Side) Axle Hubs FOLLOW THE INSTRUCTIONS ABOVE FOR GREASEABLE...
Page 38: Decal Location
DECAL LOCATION Your H&S Top Shot was manufactured with operator safety in mind. Located on the Top Shot are various decals to aid in operation, and to warn of danger or caution areas. Pay close attention to all the decals on your Top Shot. DO NOT REMOVE ANY OF THESE DECALS.
Page 39 DECAL LOCATION 111209C 71064 022310 71071 71188B DCAMB 093366 093020 71064 DCAMB 86060 022310 DCRED 093020 111209B 11210B 093020 111209C 71064 71071 DCAMB -37-...
Page 40 DECAL LOCATION 51010 LW112901 111209C 71092 71094 9194B 54033 66076 84044 1494B 111209A 9194A 82602 5896B 9194A 5896B 9194A 5896B 8515 DCAMB 1494L 1494J 82602 102196 9194A 111209A 093020 1494B 11599 72203A -38-...
Page 41 DECAL LOCATION 1494A 11599 11599 1494A 081312 093020 11211176 11599 111210 111209A Remote Grease 86060 DCAMB 111209B 51010 51010 111209B DCAMB 71088 11599 TFM97 111209C DCRED 32320 51010 093020 DCRED -39-...
Page 42: Troubleshooting Guide
TROUBLESHOOTING NOTE: This Troubleshooting Chapter presents problems, causes and suggested remedies beyond the extent of loose, worn or missing parts and it was developed with the understanding that the machine is in otherwise good operating condition. 1. Material NOT discharging •...
Page 43: Service Notes
SERVICE NOTES -41-...
Page 44 SERVICE NOTES -42-...
