Summary of Contents for TRENDnet TFC-1600
- Page 1 TFC-1600 Media Converter Chassis System User’s Guide...
-
Page 3: Fcc Warning
FCC Warning This equipment has been tested and found to comply with the regulations for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. -
Page 5: Table Of Contents
EATURES ...5 UNPACKING AND INSTALLATION NPACKING...6 NSTALLATION ...6 ECIDING OW TO Mounted to 19-inch standard rack...8 Installing Media Converter...9 Connecting to Power (Power Supply)... 10 Installing and Removing the Power Supply... 11 UNDERSTANDING LED INDICATORS RONT ANEL...12 OWER AND TECHNICAL SPECIFICATIONS... - Page 6 1000T ~ 1000SX/LX M 100FX ~ 100FX M 1000SX ~ 1000LX M 1000LX ~ 1000LX M OWER UPPLY...18 CPU M ODULE ...18 EDIA ONVERTER...17 EDIA ONVERTER...17 EDIA ONVERTER...18 EDIA ONVERTER ...18...
-
Page 7: Preface
REFACE This manual describes how to install and use the 19” Media Converter Chassis System. The system introduced here is capable of housing up to sixteen media converters, each of which offers one channel media conversion solution. Below is a list of the available media conversions:... -
Page 8: 19" Media Converter Chassis System

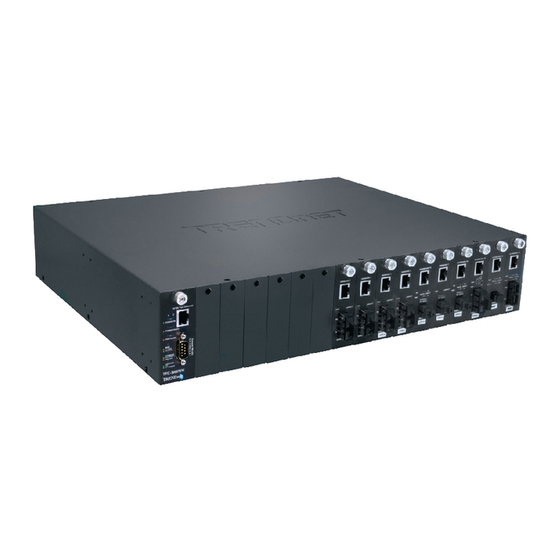

19” Media Converter Chassis System The chassis can be equipped with two power supplies and sixteen media converters. The chassis system ships with only one power supply. Attention! Proprietary media converters and a second power supply are not included! -
Page 9: Product Features
RODUCT EATURES This chapter describes the features of the Media Converter Chassis System. Product Features Plug-and-Play Houses up to Sixteen media converters Front panel LEDs for bay and fan power status Standard 19” rackmountable size, 2 Unit Height (2U) Non-stop operation & minimal downtime The following items are designed to be “hot swappable”... -
Page 10: Unpacking And Installation
Unpacking When unpacking the product package, you shall find these items listed below. 19” Media Converter Chassis System One power supply installed in the chassis One AC power cord User’s Manual Accessories: rack -mount screws (8 pcs.), rack -mount ears (2 pcs.),... -
Page 11: System
As with any electric device, you should place the equipment where it will not be subjected to high temperatures, high humidity, or electromagnetic interference. The site you selected should meet the following requirements: The ambient temperature should be between 32 and 104 degrees Fahrenheit (0 to 40 degrees Celsius). -
Page 12: Mounted To 19-Inch Standard Rack
.Mounting to 19-inch standard rack Use the rack-mount brackets and screws to install the chassis into any EIA 19” standard rack. Step 1: Attach the brackets to both sides of the chassis. Apply four screws to each side and secure them. Step 2: Carefully position the chassis into the rack. -
Page 13: Installing Media Converter
The chassis is equipped with sixteen media converter carriers, each of which is fitted into bays of the chassis. Step 1: To install a media converter module onto the chassis, you have to unscrew the bay cover from the desired bay first. -
Page 14: Connecting To Power (Power Supply)
Connecting to Power (Power Supply) The chassis ships with only one power supply. An optional second power supply is available. When the chassis is equipped with two power supplies, you can have the following advanced features. Hot Swappable – The design of the power system is based on an idea of providing maximum flexibility and redundancy. -
Page 15: Installing And Removing The Power Supply
The chassis system is equipped with one power supply and you can install one additional power supply for redundancy. For reliable operation, we suggest that you run the chassis system with two power supplies. Step 1: Connect the supplied AC power cord to the back of the chassis. Step 2: Attach the plug into a standard AC outlet with a voltage range from 100~240Vac. -
Page 16: Understanding Led Indicators
attached the rubber foot on the bottom of the Chassis (one at each corner) and then place the Chassis on the flat surface. NDERSTANDING The front panel LEDs provide instant operating status and help monitor and troubleshoot the Chassis. Front Panel There are six LED indicators that provide you with instant feedback on the status of the power supply and the fan. -
Page 17: Technical Specifications
ECHNICAL Sixteen bays for housing up to sixteen Capacity media converters Material Sheet Metal One hot-swappable power supply. Power *A second power supply (optional) for load-sharing/redundancy is also available. Cooling Two fans. 2 LEDs for fan status 2 LEDs for power on/off status Indicators 2 LEDs for power supply’s status 415 mm ×... - Page 18 Rated 12VDC Voltage 3200 RPM +/- 250 RPM Speed 42.5 CFM Air Delivery 36.5dB(A) Noise Level Bearing Precise ball bearing system System 80 × 80 × 25 mm Dimensions AC inputs: Power Consumption: Temperature Humidity Overload Protection Emissions: Power Supply 100 to 240 VAC, universal power supply 150 watts.
-
Page 19: Ordering Information
RDERING NFORMATION Note: Please contact your dealer for product model name and availability. 100Base-TX ~ 100Base-FX Media Converters Port One Cable / Speed Connector 2-pairs Cat. 5 100TX RJ-45 2-pairs Cat. 5 100TX RJ-45 2-pairs Cat. 5 100TX RJ-45 2-pairs Cat. 5 100TX RJ-45 2-pairs Cat. -
Page 20: 10/100Tx ~ 100Fx Media Converter
10/100Base-TX ~ 100Base-FX Media Converters Port One Cable / Speed Connector 2-pairs Cat. 5 10/100 RJ-45 2-pairs Cat. 5 10/100 RJ-45 2-pairs Cat. 5 10/100 RJ-45 2-pairs Cat. 5 10/100 RJ-45 2-pairs Cat. 5 10/100 RJ-45 2-pairs Cat. 5 10/100 RJ-45 2-pairs Cat. - Page 21 1000Base-T ~ 1000Base-SX/LX Media Converters Port One Cable / Speed Connector 4-pairs Cat. 5 1000T RJ-45 4-pairs Cat. 5 1000T RJ-45 4-pairs Cat. 5 1000T RJ-45 4-pairs Cat. 5 1000T RJ-45 100Base-FX ~ 100Base-FX Media Converters Port One Cable / Speed Connector 100FX...
-
Page 22: C Onverter
1000Base-SX ~ 1000Base-LX Media Converters 1000Base-LX ~ 1000Base-LX Media Converter Port One Cable / Speed Connector MMF of 850nm 1000SX (50µm) MMF of 850nm 1000SX (62.5µm) MMF of 850nm 1000SX (50µm) MMF of 850nm 1000SX (62.5µm) 1000LX (9µm or 10µm)
