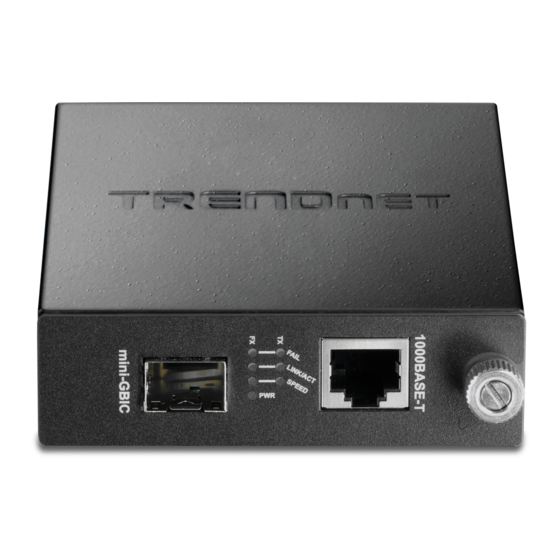

- Page 1 TFC-1000 Series 1000Base-T to 1000Base-SX/LX Gigabit Ethernet Media Converter Quick Installation Guide...
-
Page 2: Fcc Class B Certification
FCC Class B Certification This equipment has been tested and found to comply with the regulations for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment operated commercial... - Page 3 Introduction Thank you for choosing the 1000Base Gigabit Ethernet Media Converter, Converter introduced here provides one channel media conversion between 1000BASE-TX 1000BASE-FX. About Media Converter This Media Converter is a network technology specified by IEEE 802.3ab and IEEE 802.3z 1000BASE-TX/FX standards.
-
Page 4: Product Features
Product Features One-channel media conversion between 1000BASE-TX and 1000BASE-FX Fiber media allows: multimode fiber and singlemode fiber using SC connector Auto negotiation of duplex mode on TX port Auto-MDI for TX port Full wire-speed forwarding rate Front panel status LEDs Setup as a stand-alone device or with the optional 16-slot chassis Hot-swappable when used with the chassis... -
Page 5: Installation
Installation This chapter gives step-by-step installation instructions for the Converter. Selecting a Site for the Equipment As with any electric device, you should place the equipment where it will not be subjected to extreme temperatures, humidity, or electromagnetic interference. Specifically, the site you select should meet the following requirements: The ambient temperature should be... -
Page 6: Connecting To Power
of the equipment. The power outlet should be within 1.8 meters of the switch. Connecting to Power This Converter is a plug-and-play device. Connect the supplied AC to DC power adaptor with a power voltage of 7.5Vdc/1.5Amp to the DC-Jack on the converter, and then attach the plug into a standard AC outlet. - Page 7 Installing in a Chassis The Converter can be fit into any of the expansion slots on optional chassis. ? First, install the converter onto a carrier supplied with the chassis: Step 1- Unscrew and pull out the media converter board. Step 2- Plug in the media board to any of the vacant slot on the chassis.
-
Page 8: Led Indicator
LED Indicator The LED indicators give you instant feedback on status of the converter: LEDs State Indication On (solid) Power on Power (PWR) Power off On (solid) Linked On (blinking) Activity LINK/ACT Not Linked... -
Page 9: Specifications
Specifications IEEE802.3ab 1000BASE -T X Standards: IEEE802.3z 1000BASE -SX/LX Data Transfer 1,488,000pps for 1000Mbps Rate: Full-Duplex Duplex Mode: LED indicators: PWR, LNK/ACT RJ-45, SC Media Interface: FCC Class B CE Certification, Class B Compatiblity: VCCI Class B Storage: -10?C ~ 70?C Temperture: Operating: 0?C ~ 40?C 10% ~90% non-condensing... -
Page 10: Ordering Information
Ordering Information Please include the following information when ordering: 1. Fiber type: multi-mode or single-mode 2. Fiber connector type: SC, LC or MT-RJ 3. Segment distance range for the fiber port TX port Connector Cabling Segment Distance Type RJ-45 Copper Wire Max.
