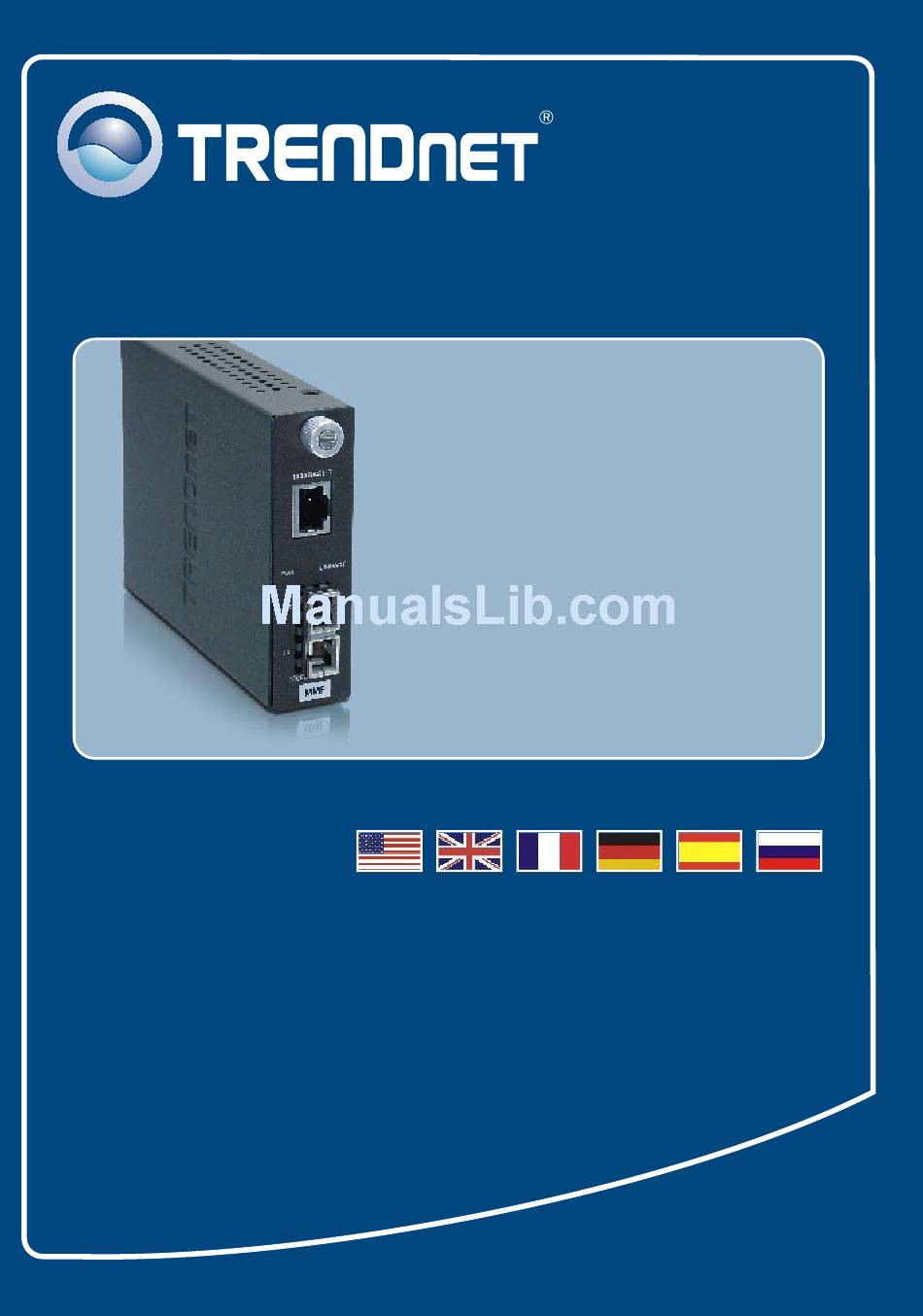

- Page 1 Quick Installation Guide 1000Base-SX/LX Fiber Converters...
-
Page 2: Table Of Contents
Table of Contents Table of Contents English ... 1. Before You Start Hardware Installation Spefications ... Ordering Information... Troubleshooting ... Version 07.26.2006... -
Page 3: English
1. Before You Start System Requirements An environment that is free from strong electromagnetic field generators (such as motors), vibration, dust and direct exposure to sunlight TFC-1600 chassis (optional) or sturdy, level surface that can support the weight of the Fiber Converter 10/100Mbps Ethernet Switch Multi-mode or Single-mode Fiber cables CAT-5 or CAT-6 RJ-45 Ethernet Cable... -
Page 4: Hardware Installation
2. Hardware Installation Installing two stand alone Fiber Converters 1. Connect the fiber cable to the fiber converters. This cable must be multi-mode for the TFC-1000MSC. This cable must be single-mode for the TFC-1000S20/S50/S70/S10D3/ S10D5. 2. Connect an RJ-45 Ethernet cable from the Ethernet port on the fiber converters to an Ethernet port on your switch (e.g TEG-S160TX or... - Page 5 4. Unscrew the bay cover from the desired bay on the chassis. 5. Unfasten the thumbscrew and remove the fiber converter from the metal casing. 6. Slide the media converter into an available slot and fasten the thumbscrew. Your installation is now complete. English...
-
Page 6: Spefications
Specifications Applicable Standards: Fixed Ports: Forwarding rate: LED Indicators: DIP Switches: Cable : Dimensions: Weight: Power: Power Consumption: Temperature: Humidity: Certifications: IEEE802.3ab 1000BASE-TX IEEE802.3z 1000BASE-SX/LX 1 TX port, 1 FX port 1488000pps for 1000Mbps PWR, LNK/ACT Switch 1: On(Forced Mode); Off(Auto-Negotiation) Switch 2: On(LLR enabled);... -
Page 7: Ordering Information
Ordering Information Model Number Speed Cable/Connector (Mbps) TFC-1000MSC 1000 TFC-1000S20 1000 TFC-1000S50 1000 TFC-1000S70 1000 TFC-1000S10D3 1000 TFC-1000S10D5 1000 Note: MMF (multi-mode fiber); SMF (single-mode fiber) Media Converters Port 1 Speed Max. (Mbps) Distance Cat. 3, 4, 5, EIA/TIA-568 100M 1000 100-ohm STP Cat. -
Page 8: Troubleshooting
Wait 15 seconds, then plug the switches and the fiber converters back What is the maximum distance that is supported by the fiber converter? Please reference section 4 for distance information. If you still encounter problems or have any questions regarding the Fiber Converters please contact TRENDnet's Technical Support Department. - Page 9 Return Material Authorization (RMA) number, accompanied by a copy of the dated proof of the purchase. Products returned to TRENDnet must be pre- authorized by TRENDnet with RMA number marked on the outside of the package, and...
- Page 10 ANY OTHER LIABILITY IN CONNECTION WITH THE SALE, INSTALLATION, MAINTENANCE OR USE OF TRENDNET’S PRODUCTS. TRENDNET SHALL NOT BE LIABLE UNDER THIS WARRANTY IF ITS TESTING AND EXAMINATION DISCLOSE THAT THE ALLEGED DEFECT IN THE PRODUCT DOES NOT EXIST OR WAS CAUSED BY CUSTOMER’S OR ANY THIRD PERSON’S...
- Page 11 Certifications This equipment has been tested and found to comply with FCC and CE Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received. Including interference that may cause undesired operation.
- Page 12 English/Espanol - 24/7 Francais/Deutsch - 11am-8pm, Monday - Friday MET Product Warranty Registration Please take a moment to register your product online. Go to TRENDnet’s website at http://www.trendnet.com 20675 Manhattan Place Torrance, CA 90501 Copyright ©2006. All Rights Reserved. TRENDnet.
