TRENDnet TFC-110 Specifications

FEATURES
• Compliant with IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX / 100Base-FX standards
• One 10/100Base-TX auto-negotiation RJ-45 port
• Auto-negotiation 10/100Mbps connection speed and half- / Full-duplex mode on TX port
• Auto MDI-X / MDI-II for 10/100Base-TX port
• One 100Mbps fiber port with Multi-mode SC, MT-RJ, or Single-mode SC connector
• Half- / Full-Duplex mode selector on Fiber port
• Status LED indicators for Power, Link/Activity, Full-Duplex, and Speed
• Optional 19" system chassis with redundant power supply, holds up to 16 TFC series Media Converters
• 5 Year Warranty

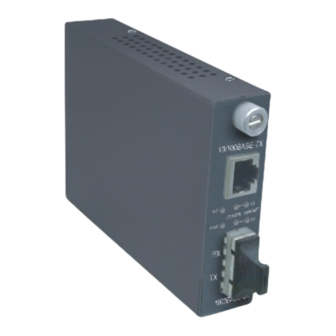

TFC-110 SERIES Fiber Media Converter
TFC-110
TRENDnet's TFC-110 series Fiber Media Converter transforms
10/100Base-TX UTP/STP media to 100Base-FX media and vice
versa. The 10/100Base-TX port auto-sense 10 or 100Mbps
connection speed, auto-negotiates half-/full-duplex mode, and auto-
selects MDI-X / MDI-II media type. The fiber connection can be
multi-mode SC, MT-RJ, or single-mode SC Connector and it has a
slide-switch for selecting half- or full-duplex mode. This converter
will give your Switch/Hub the ability to interface with fiber connection
over a distance up to 100 km. With the optional 16-slot EIA-19" rack-
mount chassis; the TFC series converters are the perfect solutions
for various fiber media conversions for your network.
TFC-110
rev:08.01.2006
