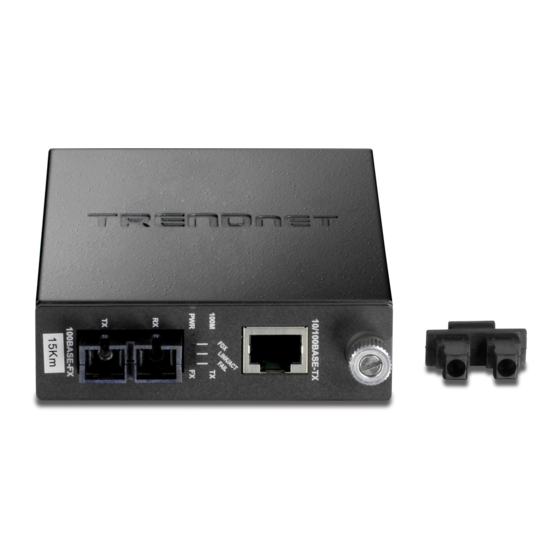

TRENDnet TFC-110S15i Quick Installation Manual
Intelligent 100base-lx fiber converters
Hide thumbs
Also See for TFC-110S15i:
- Specifications (2 pages) ,
- Quick installation manual (12 pages) ,
- Quick installation manual (12 pages)
Advertisement
Quick Links
Advertisement
Related Manuals for TRENDnet TFC-110S15i
Summary of Contents for TRENDnet TFC-110S15i
- Page 1 Quick Installation Guide Intelligent 100Base-LX Fiber Converters...
-
Page 2: Table Of Contents
Table of Contents Table of Contents English ... 1. Before You Start Hardware Installation Spefications ... Ordering Information... Troubleshooting ... Version 11.27.2006... -
Page 3: English
Fiber Converter TFC-1600MM (optional) Note: Management feature requires the TFC-1600 chassis and the TFC- 1600MM management module. Product Detail Model Name TFC-110S15i TFC-110S30i TFC-110S60i Package Contents Fiber Converter Quick Installation Guide AC Power Supply (7.5 DC, 1.5A) -
Page 4: Hardware Installation
2. Hardware Installation Installing two stand alone Fiber Converters 1. Connect the fiber cable to the fiber converters. This cable must be single-mode. 2. Connect an RJ-45 Ethernet cable from the Ethernet port on the fiber converters to an Ethernet port on your switch (e.g TEG-160WS) 3. - Page 5 4. Unscrew the bay cover from the desired bay on the chassis. 5. Unfasten the thumbscrew and remove the fiber converter from the metal casing. 6. Slide the media converter into an available slot and fasten the thumbscrew. Your installation is now complete. English...
-
Page 6: Spefications
Specifications Applicable Standards: Fixed Ports: Speed: Forwarding rate: LED Indicators: DIP Switches: Cable : Dimensions: Weight: Power: Power Consumption: Operating Temperature Storage Temperature Humidity: Certifications: IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX & 100BASE-FX 1 x 10/100BASE-TX port, 1 x 100BASE-FX port 10/20Mbps for half/full-duplex 100/200Mbps for half/full-duplex 148,800pps... -
Page 7: Ordering Information
Ordering Information Model Number Speed Cable/Connector (Mbps) TFC-110S15i 10/100 TFC-110S30i 10/100 TFC-110S60i 10/100 Model Number Description TFC-1600 16 bay chassis for storing up to 16 media converters. Management module for the Chassis System (manage/monitor chassis TFC-1600MM status via console port or Ethernet port with SNMP software) -
Page 8: Troubleshooting
Wait 15 seconds, then plug the switches and the fiber converters back in. What is the maximum distance that is supported by the fiber converter? Please refer to the Ordering Information section. If you still encounter problems or have any questions regarding the Fiber Converters please contact TRENDnet's Technical Support Department. - Page 9 Return Material Authorization (RMA) number, accompanied by a copy of the dated proof of the purchase. Products returned to TRENDnet must be pre- authorized by TRENDnet with RMA number marked on the outside of the package, and...
- Page 10 ANY OTHER LIABILITY IN CONNECTION WITH THE SALE, INSTALLATION, MAINTENANCE OR USE OF TRENDNET’S PRODUCTS. TRENDNET SHALL NOT BE LIABLE UNDER THIS WARRANTY IF ITS TESTING AND EXAMINATION DISCLOSE THAT THE ALLEGED DEFECT IN THE PRODUCT DOES NOT EXIST OR WAS CAUSED BY CUSTOMER’S OR ANY THIRD PERSON’S...
- Page 11 Certifications This equipment has been tested and found to comply with FCC and CE Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received. Including interference that may cause undesired operation.
- Page 12 English/Espanol - 24/7 Francais/Deutsch - 11am-8pm, Monday - Friday MET Product Warranty Registration Please take a moment to register your product online. Go to TRENDnet’s website at http://www.trendnet.com 20675 Manhattan Place Torrance, CA 90501 Copyright ©2007. All Rights Reserved. TRENDnet.
