- Page 1 WASHING MACHINE USER’S MANUAL GWN 37631 AUS GUTEM GRUND www.grundig.com Document Number 2820524831_EN/ 25-09-15.(23:15)
- Page 2 Please read this user manual first! Dear Customer, Thank you for preferring a Grundig product. We hope that you get the best results from your product which has been manufactured with high quality and state-of- the-art technology. Therefore, please read this entire user manual and all other accompanying documents carefully before using the product and keep it as a reference for future use.
-
Page 3: Table Of Contents
TABLE OF CONTENTS Important instructions for safety Preparing the machine ... . .22 and environment Programme selection ....22 Programmes . -
Page 4: Important Instructions For Safety And Environment
Important instructions for safety and environment This section contains safety instructions that will help protect from risk of personal injury or property damage. Failure to follow these instructions shall void any warranty. General safety • This product can be used by children at and above 8 years old and by persons whose physi- cal, sensory or mental capabilities are not fully developed or who lack experience and knowl-... -
Page 5: Product Safety
"Cancelling the programme" section. • Connect the product to a grounded outlet pro- tected by a 16 A fuse. Have the grounding instal- lation made by a qualified electrician. Our com- pany shall not be liable for any damages that will arise when the product is used without ground- ing in accordance with the local regulations. -
Page 6: Intended Use
loading door will be ready to open just a few min- utes after the washing cycle comes to an end. In case of forcing the loading door to open, the door and the lock mechanism may get damaged. • Use detergents, softeners and supplements suit- able for automatic washing machines only. -
Page 7: Compliance With The Weee Directive
tervening with the product. • Do not forget to close the loading door when leaving the room where the product is located. • Store all detergents and additives in a safe place away from the reach of the children by closing the cover of the detergent container or sealing the detergent package. -
Page 8: Package Information
Package information • Packaging materials of the product are manu- factured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points desig- nated by the local authorities. -
Page 9: Your Washing Machine

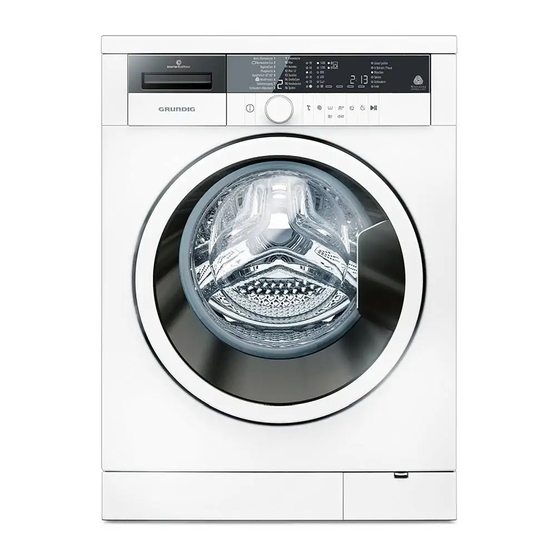

Your washing machine Overview 1- Power cable 2- Top panel 3- Control panel 4- Filter cap 5- Adjustable feet 6- Loading door 7- Detergent drawer 8- Drain hose... -
Page 10: Package Contents
Package Contents 1- Power cable 2- Drain hose 3- Transportation safety bolts * 4- Mains water inlet hose (One of the following filter types is used for the mains hose connection.) a- Electronic water shut-off b- Mechanical water shut-off c- Standard 5- Liquid detergent container** 6- User Manual 7- Blind plug***... -
Page 11: Technical Specifications
Technical specifications Complying Commission Delegated Regulation (EU) No 1061/2010 Supplier name or trademark GRUNDIG Model name GWN 37631 Rated capacity (kg) Energy efficiency class / Scale from A+++ (Highest Efficiency) to D (Lowest Efficiency) A+++ Annual Energy Consumption (kWh) Energy consumption of the standard 60°C cotton programme at full load (kWh) 0.950... -
Page 12: Installation
Installation Removing packaging reinforcement Tilt the machine backwards to remove Refer to the nearest Authorised the packaging reinforcement. Remove Service Agent for installation of the the packaging reinforcement by pulling product. To make the product ready the ribbon. for use, review the information in the user manual and make sure that the electricity, tap water supply and water drainage systems are appropriate... -
Page 13: Connecting Water Supply
• Remove transportation safety • Connect the special hoses bolts by turning them gently. supplied with the product to the water inlets on the product. Red hose (left) (max. 90 ºC) is for hot water inlet, blue hose (right) (max. 25 ºC) is for cold water inlet. -
Page 14: Connecting To The Drain
Connecting to the drain m. To avoid water leak failures, the connection between the • The end of the drain hose must extension hose and the drain be directly connected to the hose of the product must be fitted wastewater drain or to the well with an appropriate clamp as washbasin. -
Page 15: Electrical Connection
Electrical connection Connect the product to a grounded outlet protected by a 16 A fuse. Our company shall not be liable for any damages that will arise when the product is used without grounding in accordance with the local regulations. •... -
Page 16: Preparation
Preparation Sorting the laundry • Sort laundry according to type of fabric, colour, and degree of soiling and allowable water temperature. • Always obey the instructions given on the garment tags. LAUNDRY WASH SYMBOLS Machine Wash Symbols WASH Maximum Water Temperatures Symbol(s) Drying... -
Page 17: Preparing Laundry For Washing
Preparing laundry for washing Things to be done for energy saving • Laundry items with metal Following information will help you attachments such as, underwired use the product in an ecological and bras, belt buckles or metal energy-efficient manner. buttons will damage the machine. •... -
Page 18: Correct Load Capacity
Correct load capacity Using detergent and softener The maximum load capacity depends When using detergent, softener, on the type of laundry, the degree of starch, fabric dye, bleach or soiling and the washing programme limescale remover, read the desired. manufacturer's instructions on The machine automatically adjusts the package carefully and follow the suggested dosage values. - Page 19 do not forget to place the liquid • If the liquid detergent has lost its detergent cup into the main wash fluidity, dilute it with water before compartment (compartment nr. putting in the detergent cup. "2"). Choosing the detergent type The type of detergent to be used depends on the type and colour of the fabric.
-
Page 20: Tips For Efficient Washing
Tips for efficient washing Using starch • Add liquid starch, powder starch Clothes or the fabric dye into the softener Light colours and whites compartment. • Do not use softener and starch (Recommended temperature range based on soiling level: 40- together in a washing cycle. - Page 21 Clothes Clothes Colours Dark colours (Recommended temperature (Recommended temperature range based on soiling level: cold range based on soiling level: cold -40 °C) -40 °C) Liquid detergents suitable for Powder and liquid detergents Heavily colours and dark colours can be recommended for colours can be Soiled used at dosages recommended...
-
Page 22: Operation
Operation Control panel 1 - Programme Selection display 7 - End Time setting 2 - Cover lock LED indicator 8 - Auxiliary Function buttons 3 - Child Lock LED indicator 9 - Spin Speed Adjustment button 4 - Display 10 – Temperature setting 5 - Program Follow-up indicator 11 - Programme Selection knob 6 - Start / Pause button... - Page 23 compared to the Cottons programme. • HygieneCare (BabyProtect) For curtains and tulle, use the This is a long lasting programme Synthetics 40˚C programme with which you may use for your laundry for which you require an anti-allergic and prewash and anti-creasing functions selected.
-
Page 24: Special Programmes
• Selbstreinigung (Self Clean) Selecting the spin speed Use regularly (once in every 1-2 Whenever a new programme is months) to clean the drum and selected, the recommended spin provide the required hygiene. Apply speed of the selected programme is this procedure without any laundry in displayed on the Spin Speed indicator. -
Page 25: Programme And Consumption Table
Programme and consumption table Auxiliary functions Selectable temperature Programme (°C) range °C Buntwäsche Eco 60** 44,5 0.95 1600 Cold-60 Buntwäsche Eco 60** 0.64 1600 Cold-60 Buntwäsche Eco 40** 0.63 1600 Cold-60 Koch-/Buntwäsche 2.20 1600 • • • Cold-90 Koch-/Buntwäsche 1.55 1600 •... -
Page 26: Auxiliary Function Selection
The auxiliary functions in the table may vary according to the model of your machine. Water and power consumption may vary from the above table subject to the changes in water pressure, water hardness and temperature, ambient temperature, type and amount of laundry, selection of auxiliary functions and spin speed, and changes in electric voltage. -
Page 27: End Time
Spin steps are cancelled for a silent Indicator lights of the auxiliary washing and the cycle ends with the functions that are not allowed Rinse Hold step. After completion of to be selected with the current the programme, run Spin cycle to spin programme will flash and an audio warning is given. -
Page 28: Starting The Programme
Pause light continue to flash. Cancelling the End Time function Also, when the loading door is ready to be opened, Loading Door light will also If you want to cancel the End Time countdown and start the programme turn off in addition to the programme step light. -
Page 29: Cancelling The Programme
Your machine is equipped in the programme selection display on the panel. When this warning appears, with a "Standby Mode" button can 1st Auxilliary Function In case of not starting any programme be released. or waiting without making any other operation while the machine is in the To deactivate the Child Lock: selection step after it is turned on by... -
Page 30: Quick User Guide Preparing The Machine
Quick User Guide Preparing the machine Cancelling the programme • Check if the hoses are connected The programme is cancelled when the tightly. machine is turned off and on again. • Plug in your machine. Press and hold On / Off button for 3 •... -
Page 31: Maintenance And Cleaning
Maintenance and cleaning Cleaning the loading door Service life of the product extends and frequently faced problems decrease if and the drum cleaned at regular intervals. For products with drum cleaning Cleaning the detergent drawer programme, please see Operating the product - Programmes. -
Page 32: Cleaning The Body And Control Panel
carefully in their places and Foreign metal substances will tighten the hose nuts by hand. cause rust stains in the drum. Clean the stains on the drum Draining remaining water and surface by using cleaning agents cleaning the pump filter for stainless steel. -
Page 33: If The Product Has An Emergency Draining Hose, To Discharge The Water
• Open the filter cap. If the product has an • If the filter cap is composed of emergency draining hose, two pieces, press the tab on the to discharge the water: filter cap downwards and pull the piece out towards yourself. If the filter cap is one piece, pull the cap from both sides at the top to open. -
Page 34: Troubleshooting
Troubleshooting Program does not start after closing the door. *Press the Start / Pause / Cancel • Start / Pause / Cancel button was not pressed. >>> button. Programme cannot be started or selected. • Washing machine has switched to self protection mode due to a supply problem (line Press and hold On / Off button for 3 seconds to reset voltage, water pressure, etc.). - Page 35 Loading door cannot be opened. Drain the water by • Door lock is activated because of the water level in the machine. >>> running the Pump or Spin programme. Wait until the • Machine is heating up the water or it is at the spinning cycle. >>> programme completes.
- Page 36 Washing performance is poor: Laundry turns grey. (**) Use the • Insufficient amount of detergent was used over a long period of time. >>> recommended amount of detergent appropriate for water hardness and the laundry. • Washing was made at low temperatures for a long time over a long period of time. >>> Select the proper temperature for the laundry to be washed.
- Page 37 Laundry became stiff after washing. (**) Using insufficient amount of detergent for • Insufficient amount of detergent is used. >>> the water hardness can cause the laundry to become stiff in time. Use appropriate amount of detergent according to the water hardness. •...
- Page 38 Laundry remains wet at the end of the programme. (*) • Excessive foam might have occurred and automatic foam absorption system might have Use recommended amount of been activated due to too much detergent usage. >>> detergent. Machine does not switch to spinning step when the laundry is not evenly distributed in the drum to prevent any damage to the machine and to its surrounding environment.
- Page 39 E-Mail: ersatzteile.hausgeraete@grundig.com Sehr geehrte Kundin, sehr geehrter Kunde, als Käufer eines Gerätes der Marke Grundig stehen Ihnen die gesetzlichen Gewährleistungsrechte (Nachbesse- rung und Nacherfüllung) aus dem Kaufvertrag zu. Die Gewährleistung erfolgt für die Fehlerfreiheit bei Geräte- übergabe entsprechend dem jeweiligen Stand der Technik. Änderungen in der Konstruktion oder der Ausführung, die weder die Funktionstüchtigkeit noch den Wert der Ware beeinträchtigen, stellen keinen Fehler dar.
- Page 40 BEKO DEUTSCHLAND GMBH THOMAS-EDISON-PLATZ3 63263 NEU ISENBURG AUS GUTEM GRUND www.grundig.com...
