TEW-PS1U F.A.Q.
Q: Why doesn't PS-Admin utility detect my print server?
A:
If you are using Windows XP you will have to disable the built in firewall. But for all operating
systems you have to disable any other form of firewall software such as Norton Internet Security,
Black Ice, and ZoneAlarm.
Make sure that you have "Client Services for Netware" installed, it should automatically install
IPX/SPX. If not please do so.
Note: Windows XP Home edition does not have the capability to install Client Services for
Netware.

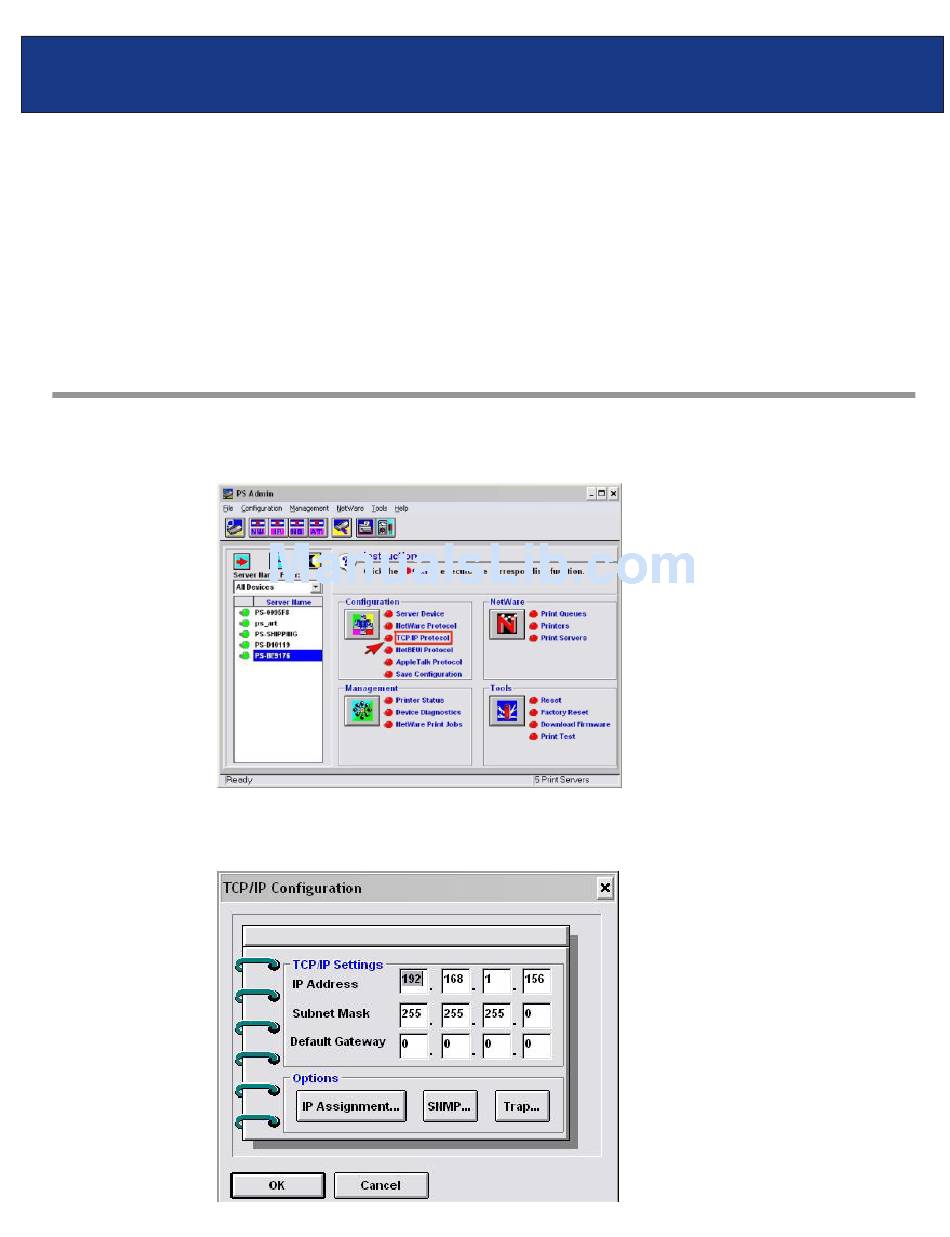

Q: How do I change the IP address of my print server?
A:
Step 1.
Open up the PS-Admin Utility and click on "TCP IP Protocol".
Step 2.
Change IP Address:
In this dialog box, you can Manually Assign. When completed, click "OK".
Advertisement
Related Manuals for TRENDnet TEW-PS1U
Summary of Contents for TRENDnet TEW-PS1U
- Page 1 Note: Windows XP Home edition does not have the capability to install Client Services for Netware. Q: How do I change the IP address of my print server? Step 1. Open up the PS-Admin Utility and click on “TCP IP Protocol”.
- Page 2 TEW-PS1U F.A.Q. Q: How do I find the Port Name of the Print Server? Step 1. Click on “Server Device”. Step 2. Click on the port that you have your printer plugged into. Step 3. Write down the Port Name for future reference.
- Page 3 TEW-PS1U F.A.Q. Q: How do I setup my wireless settings? Step 1. Click on “Server Device”. Step 2. Click on the “Wireless” button.
- Page 4 TEW-PS1U F.A.Q. Step 3. Input the ESS-ID and channel of your wireless access point or router. If you are using Encryption on your wireless network, you will be required to input the WEP key. For 64 bit hex you will be required to input 10 characters and for 128 bit WEP, you will be required to input 26 characters.
- Page 5 TEW-PS1U F.A.Q. Step 3. Click on Have Disk > Browse. Browse to the location of the extracted LPR Client. Step 4. Click OK 3 times. Step 5. From the list highlight LPR for TCP/IP and click on Properties.
- Page 6 Click on Add Port. In the top field type in the IP address of your print server. In the bottom field type in the port name of your print server, the Port Name is the PS-xxxxxx-P1, x being the actual number listed in the Port Name box.
- Page 7 TEW-PS1U F.A.Q. Printer Installation Step 1. Open your printers folder. Go to Start > Settings > Printers. Step 2. Double-click on the Add Printer icon which will launch the Add Printer Wizard. Step 3. Select Network Printer and click on Next.
- Page 8 Highlight the Print Server and click on OK to return to the Add Printer Wizard. Step 5. Click on Next. If you are unable to do this you can manually enter the Print Server by using two backlashes, the IP address, one backlash and the port name of you printer.
- Page 9 TEW-PS1U F.A.Q. Step 6. You will now be asked to select a printer to install. If you can not find your printer from the list, click on the Have Disk button and browse to the printer drivers for your printer (floppy, CD, or downloaded).
- Page 10 TEW-PS1U F.A.Q. Q: How do I install my printer on Windows 2000/XP? Step 1. Go to Start>Settings>Printers>Add New Printer (Win XP - Start>Printers and Faxes>Add a Printer). Step 2. Select Local Printer. Make sure to uncheck Automatically detect and install my plug and play printer.
- Page 11 TEW-PS1U F.A.Q. Step 4. Enter the IP address of the router (192.168.0.1). Leave the port name with the default name. Click Next. Step 5. You will get a message saying that additional port information required. Step 6. Select Custom and then click Settings.
- Page 12 Step 7. Set Protocol to LPR. Step 8. For the LPR Settings for the TEW-PS1U the Queue Name will be PS-xxxxxx-P1, X being the actual number listed in the Port Name box. It is case sensitive! Step 9. Select OK > Finish.
- Page 13 TRENDnet print servers do not support embedded driver codes. TRENDnet print servers, whether in Gateways or Stand Alone, are plain TCP/IP print servers.
