Summary of Contents for Yaber K2s

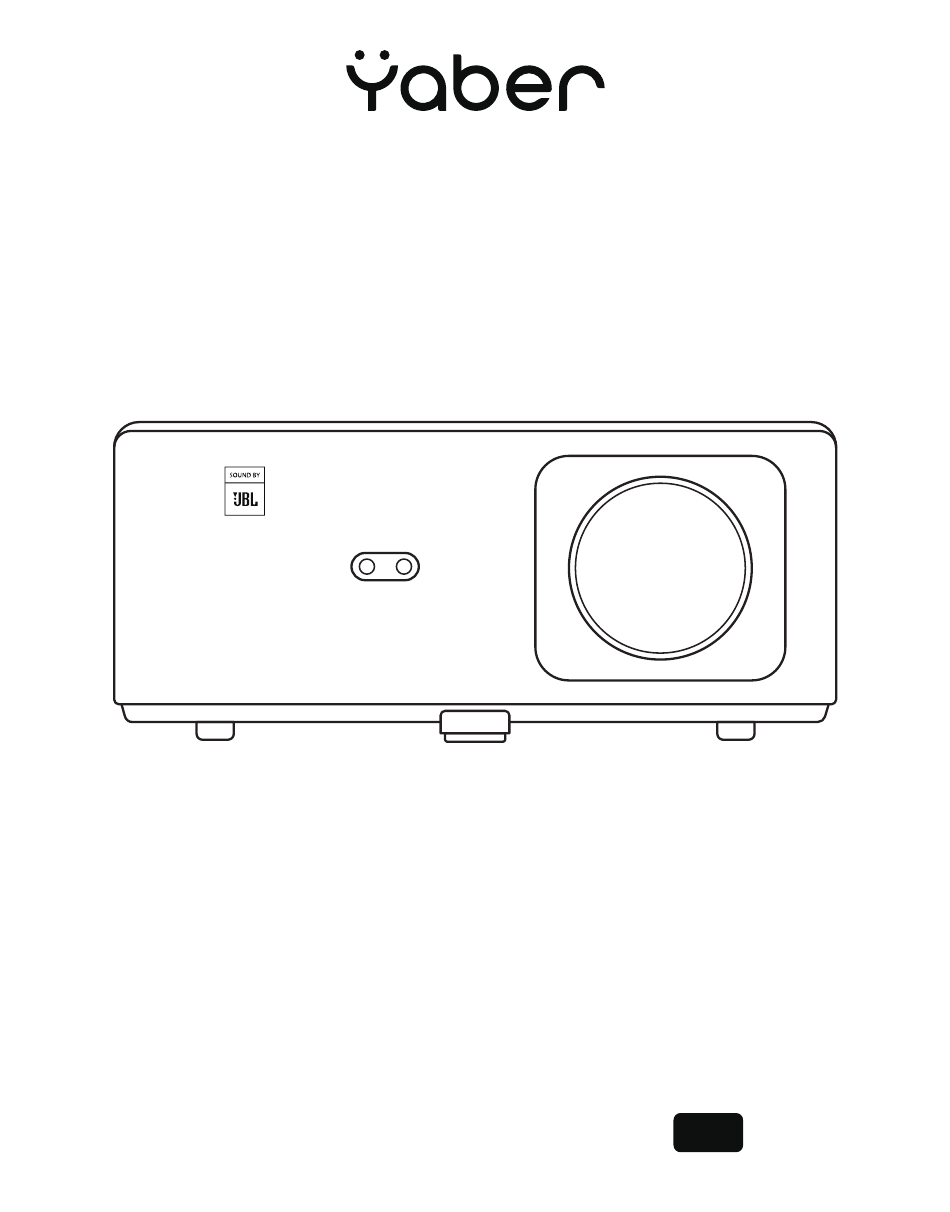

  • Page 1 Quick Start Guide Smart Projector K2s...
  • Page 2: Package Contents

    Package Contents Projector K2s Projector HDMI Cable Remote Control TV Dongle TV Dongle Power Cord Remote Control 3-in-1 AV Cable Quick Start Guide Cleaning Kits Lens Cover...
  • Page 3: Product Overview

    Product Overview IR Window IR Window Air Inlet Power Port HDMI Port USB Port Automatic Focus Projector Lens USB-C Port Signal Receiver Headphone Jack AV Port NFC Area Heat-Sink Window Bluetooth Speaker Mode Quiet Mode Volume Power Angle Adjusting Stand Rubber Pad (Remove for Ceiling Mount) TV Dongle Slot Bottom Label...
  • Page 4 Install the TV Dongle Micro USB port (Mark on the Back) Mounted TV Dongle Micro HDMI port (Mark on the Back) Tray TV Dongle Slot 1. Push once to open the lid, and take out the tray. 2. Mount the TV Dongle and make sure the Micro HDMI port downside and the Micro USB port upside.
  • Page 5 Alexa Smart Voice Control Setup Alexa 1. Connect K2s to the Wi-Fi network and start Alexa Setup from the projector home screen and log in with your Amazon account. 2. Open Alexa on your phone and log in with your Amazon account.
  • Page 6: Connect Devices

    Turn on Yaber Projector Connect Devices Yaber K2s projector has 5 ports, HDMI port/USB port/USB-C port/AV_in/Audio out. Please select the correct connecting port to connect your devices. (PC, Phone, DVD Player, Bluetooth Speaker, USB)
  • Page 7: Nfc Settings

    NFC Settings 1. Download and install E-share App by scan QR code or visit http:/ /h.eshare.app 2. Make sure your phone and projector are connected to same network, and connect the projector on E-share App. EShare K2s_1234 Connected to: 3. Go to Settings on E-share App, Select "Write NFC Tags" and follow the prompts to activate the NFC area on the projector.
  • Page 8: Quiet Mode

    Bluetooth Speaker Mode 1. Click the Bluetooth Speaker Mode button on the projector. 2. Pair the mobile device with the projector to play music. Quiet Mode Click the Quiet Mode button on the projector to enter the Quiet Mode, and click again to exit.
  • Page 9 Scan and download the PDF user manual The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. Where to Get More Help support@yabertech.com aftersales@yabertech.com www.yaber.com @Yaber Entertainment Projector @Yaber Entertainment Projector...
  • Page 10 Kurze Startanleitung Smart Beamer K2s...
  • Page 11 Lieferumfang K2s Beamer Projektor-Fernbedienung HDMI-Kabel TV-Dongle TV-Dongle-Fernbedienung Netzkabel 3-in-1-AV-Kabel Schnellstartanleitung Reinigungskit Objektivschutz...
  • Page 12 Produktübersicht IR-Fenster IR-Fenster Lufteinlass der Netzanschluss HDMI-Anschluss USB-Anschluss automatischer das Projektions- USB-C-Anschluss Empfang von Kopfhöreranschluss objektiv Fokussignalen AV-Anschluss Kühlluft-Fenster Bluetooth- Lautsprechermodus Leiser Lautstärke Power Ständer zur Winkeleinstellung Gummiauflage (für die Deckenmontage entfernen) TV Dongle-Steckplatz Bodenaufkleber...
  • Page 13 TV-Dongle installieren Klappe Fach Montierter TV-Dongle 1. drücken Sie einmal, um den Deckel zu öffnen, und nehmen Sie das Fach heraus. Micro-USB-Anschluss (Markierung auf der Rückseite) Eingebauter TV-Dongle Micro-HDMI-Anschluss (Markierung auf der Rückseite) 2. Montieren Sie den TV-Dongle und achten Sie darauf, dass der Micro-HDMI-Anschluss unten und der Micro-USB-Anschluss oben ist.
  • Page 14 TV-Dongle installieren 3. stecken Sie den eingebauten TV-Dongle in den Steckplatz. USB- Netzkabel 4. Stecken Sie das USB-Netzkabel in den Micro-USB-Anschluss, und drücken Sie auf den Deckel, um ihn zu schließen.
  • Page 15: Gerät Anschließen

    Yaber Beamer einschalten Gerät anschließen Der Yaber K2s Beamer hat 5 Anschlüsse, HDMI-Anschluss/USB-Anschluss/USB-C-An- schluss/AV_in/AUDIO out. Bitte wählen Sie den richtigen Anschluss, um Ihre Geräte anzuschließen. (PC, Telefon, DVD-Player, Bluetooth-Lautsprecher, USB)
  • Page 16 NFC-Einstellungen 1. laden Sie die E-Share App herunter und installieren Sie sie, indem Sie den QR-Code scannen oder http:/ /h.eshare.app 2. stellen Sie sicher, dass Ihr Telefon und der Projektor mit demselben Netzwerk verbunden sind, und verbinden Sie den Projektor mit der E-Share App. EShare K2s_1234 Connected to:...
  • Page 17: Bluetooth-Modus

    Bluetooth-Modus 1 Klicken Sie auf die Schaltfläche Bluetooth-Lautsprechermodus am Projektor. 2. verbinden Sie das mobile Gerät mit dem Projektor, um Musik abzuspielen. Leiser Modus Klicken Sie auf die Taste "Leiser Modus" am Projektor, um den Leisemodus zu aktivieren, und klicken Sie nochmals, um ihn zu beenden. Bildeinstellung Wenn Sie den Projektor einschalten, warten Sie bitte geduldig 2-3 Sekunden, der Projektor stellt automatisch scharf und korrigiert die Trapezeinstellung automatisch.
  • Page 18 Scannen und Herunterladen des PDF-Gebrauchsanweisung Wo Sie weitere Hilfe erhalten support@yabertech.com aftersales@yabertech.com www.yaber.com @Yaber Entertainment Projector @Yaber Entertainment Projector...
  • Page 19: Instrukcja Obsługi

    Instrukcja obsługi Inteligentny projektor K2s...
  • Page 20: Zawartość Zestawu

    Zawartość zestawu Projektor K2s Pilot sterowania projektora Kabel HDMI Pilot do Dongle TV Przewód zasilający Dongle TV Zestaw do czyszczenia Kabel AV 3 in 1 Instrukcja obsługi Osłona obiektywu...
  • Page 21: Przegląd Produktu

    Przegląd produktu Czujnik IR Czujnik IR Wlot powietrza Złącze zasilania Port HDMI Port USB Auto Focus Obiektyw Port USB-C Odbiornik sygnału Port audio Jack Port AV Okno radiatora Strefa NFC Tryb głośnika Bluetooth Tryb Uśpienia Głośność Włącznik Wspornik do regulacji kąta Gumowa podkładka (wymontuj w celu montażu sufitowego) Gniazdo TV Dongle Etykieta znamionowa...
  • Page 22 Instalacja TV Dongle Pokrywka Tacka Slot dongle TV 1. Naciśnij raz, aby otworzyć pokrywę i wyciągnij tacę. Port mikro-USB (Logo z tyłu) Uchwyt do Dongle TV Port mikroHDMI (Logo z tyłu) 2. Zamontuj Dongle TV i upewnij się, że port Micro HDMI jest skierowany w dół, a port Micro USB jest skierowany w górę.
  • Page 23 Instalacja TV Dongle 3. Włóż zmontowany TV Dongle do gniazda. Kabel Zasilajacy 4. Włóż kabel zasilający USB do portu Micro USB i naciśnij, aby zamknąć pokrywę.
  • Page 24 Uruchomienie projektora Yaber Podłącz urządzenia Projektor Yaber K2s ma 5 portów, port HDMI/port USB/port USB-C/wejście AV/wyjście AUDIO. Wybierz właściwy port połączenia, aby podłączyć urządzenia. (komputer, telefon, odtwarzacz DVD, głośnik Bluetooth, USB)
  • Page 25 Ustawienia NFC 1. Pobierz i zainstaluj aplikację E-share, skanując kod QR lub odwiedź stronę http:// h.eshare.app 2. Upewnij się, że telefon i projektor są podłączone do tej samej sieci i podłącz projektor w aplikacji E-share. EShare K2s_1234 Connected to: 3. Przejdź do Ustawień w aplikacji E-share, wybierz opcję „Zapisz tag NFC” i postępuj zgodnie z instrukcjami, aby włączyć...
  • Page 26: Tryb Bluetooth

    Tryb Bluetooth 1. Kliknij przycisk Tryb głośnika Bluetooth na projektorze. 2. Sparuj urządzenie mobilne z projektorem, aby odtwarzać muzykę. Tryb cichy Kliknij przycisk Tryb cichy na projektorze, aby przejść do trybu cichego, a następnie kliknij ponownie, aby wyjść. Regulacja obrazu Po włączeniu projektora odczekaj 2-3 sekundy, projektor automatycznie ustawi ostrość, a zniekształcenia trapezowe zostaną...
  • Page 27 Dystrybutor w Polsce DMTrade Mikołaj Tomaszewski sklep@dmtrade.pl www.dmtrade.pl Gdzie uzyskać dodatkową pomoc support@yabertech.com aftersales@yabertech.com www.yaber.com @Yaber Entertainment Projector @Yaber Entertainment Projector...
  • Page 28 Leader of Entertainment Projectors...
