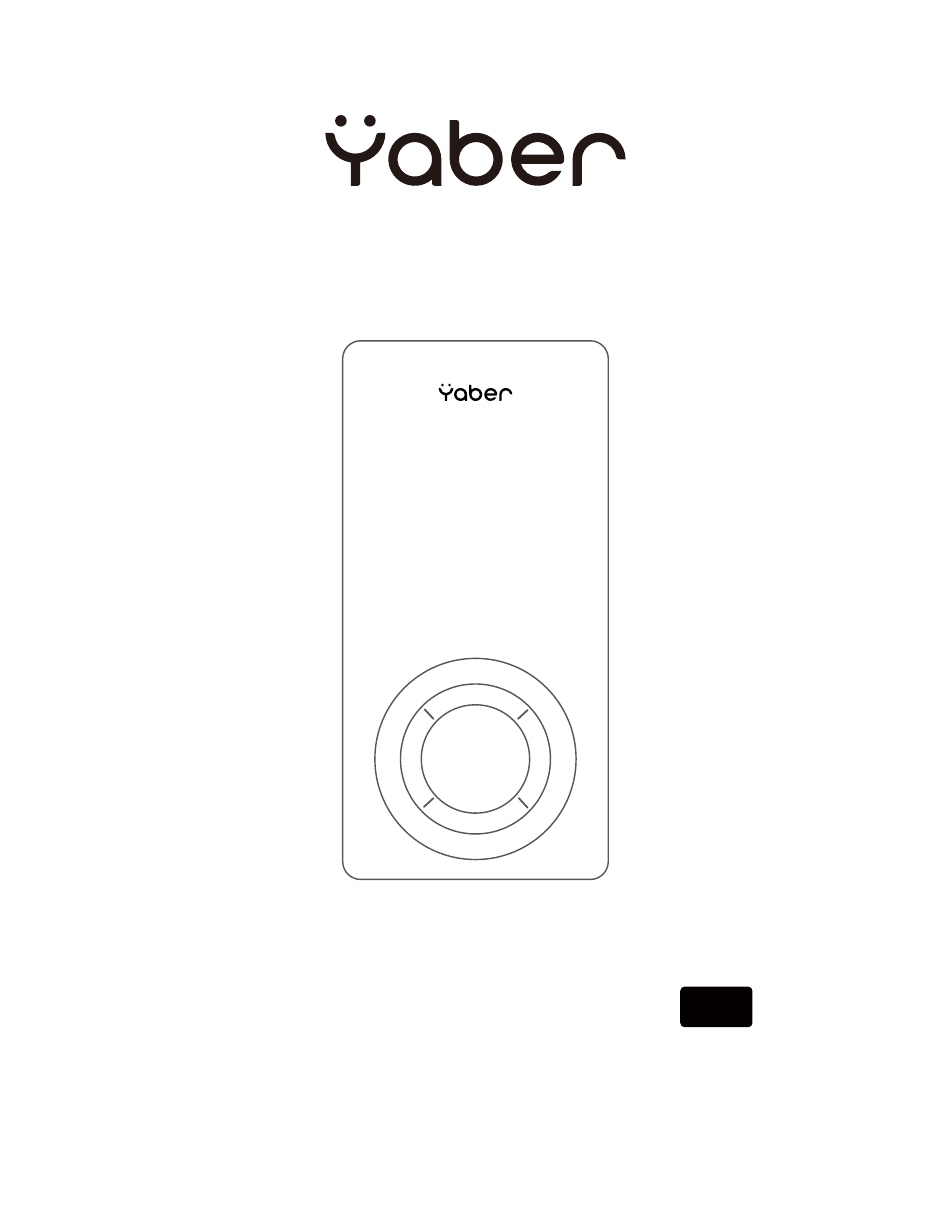

- Page 1 Pico T 1 PROJECTOR...
-
Page 2: Table Of Contents
CONTENTS YABER Lifetime Professional Support Tips Package List Projector Specifications Projector Overview Remote Contol Installation Starting Projector Image Adjustment 1. Focus Adjustment 2. Digital 4D Keystone Correction Setting Up The Projector 1. Select The Insert Signal Source 2. WiFi Setting 2.1 iOS Cast (for iOS Devices) - Page 3 6. Language Settings 7. Wallpaper Settings SIGNAL LINES CONNECTION 1. Connect the Devices via the HDMI Ports 2. Connect the Type-C Safe Shutdown Warranty TROUBLESHOOTING...
-
Page 4: Yaber Lifetime Professional Support
YABER Lifetime Professional Support Dear customer, Thank you very much for supporting YABER! Please read this manual thoroughly before using the projector. If you have any issues, email your order number and the problem to Support@yabertech.com We will provide a fast solu- tion in 24 hours. -
Page 5: Package List
Package List Yaber Pico T 1 Power Bank Magnetic Tripod Remote Control (with button cell) USB Type-C Double-ended HDMI-HDMI Type-C Charger Cable Type-C Cable (mini) Cable Organizer Quick Start Guide... -
Page 6: Projector Specifications
Projector Specifications Model No. Ace K1 Manual Vertical & Auto Native Resolution Keystone Correction 960*540P Horizontal Display Technology Light Source Recommended 16:9 Aspect Ratio 1-6.6ft Projection Distance Minimum Projection Power Voltage DC 9V/2A 12V/1.5A Distance 0.33lb Picture File Projector Weight JPG/BMP/PNG Interfaces USB C*1, Hdmi Mini*1, USB A*1... - Page 7 Touch Panel Operation panel Volume Panel To adjust volume Power Key Turn on/off the power Focus Ring Adjust the focus ring to get the clearest image HDMI Port Connect your devices Type-C Port Connect your devices IR Window Infrared signal receiver Projector lens Optical coated glass lens Menu...
-
Page 8: Remote Contol
Remote Contol Power Return Navigation Vol - Vol + Power Turn on/off the power Reture Return to the previous menu Navigation Used to adjust the parameter of the projector in the menu mode Confirm the option Vol - Volume up Vol + Volume down Note:... -
Page 9: Installation
Installation The projector can be placed on the stable desk to project the image according to the oper- ating environment and requirements.Keep the projector at a height where its lens is axial symmetry to the screen.If this is not possible, use the keystone correction function to adjust the projection image. -
Page 10: Starting Projector
Starting Projector 1. Connect the power bank and Yaber Pico T1 with a Type C cable-press the power button of the power bank-press the power button of the projector.Or Connect the Charger and Yaber Pico T1 with a Type C cable-Plug the Charger into a power socket-Press the power button of the projector. -
Page 11: Digital 4D Keystone Correction
Rotate the focus ring or lens slowly. At the same time, check the focus point carefully. The best focus point for the lens would be where the image most clear. Note: If it is still blurry, please try to adjust the projection distance. 2. -
Page 12: Ios Cast (For Ios Devices)
2.1.1 Wired Connection for iOS 1. Turn on Yaber Pico T1. 2. Connect the Yaber Pico T1 to iOS devices with a USB cable(Type-C connector on one end and Lightning connector on the other After connecting iOS devices please click"Trust" in the trust pop-up window of iOS devices if iOS devices have a password, please enter it. -
Page 13: Screencast For Android Devices
2.2.1 Wired Connection for Android 1. Turn on Yaber Pico T1. 2. Connect the Yaber Pico T1 to Android devices with a Double-ended Type-c cable. 3. Start screen casting. 4. Go to Google Play to download Eshare App and install it. -
Page 14: Eshare Wireless Connection
2.3 Eshare Wireless Connection 1. Please make sure your device and Yaber Pico T1 are connected with the same WiFi. 2. Go to Google Play or https:/h.eshareapp to download Eshare App and install it. 3. Run Eshare App, search for the device you can see the device number click the number to enter the connection list click"Start Mirror", you can share the phone screen to the projection... -
Page 15: Projector Image Setting
Note: 1. The Pico T1 projector is compatible with the Bluetooth headsets, Bluetooth speakers and Airpods, but not the Bluetooth keyboards or Bluetooth phones. 2. If you have any question, please feel free to email YABER via: Support@yabertech.com. 4. Projector Image Setting 4.1 Projection Mode... -
Page 16: Automatic Keystone & 4-Point Keystone
4.2 Automatic Keystone & 4-Point Keystone 4.2.1 Automatic Horizontal Keystone Correction When you start the projector, the projector will adjust horizontal keystone automatically. If the image is not rectangle, you can use the digital 4D keystone correction to change the image to be rectangle. -
Page 17: Date And Time
5. Date and Time Select the [ Settings ] menu-select [ Date and Time ] menu. Then you can adjust date and time according to your requirement. 6. Language Settings Select the [ Settings ] menu-select [ Language ] menu.then you can adjust date and time according to your requirement. -
Page 18: Signal Lines Connection
SIGNAL LINES CONNECTION YABER Pico T1 projector has 3 interfaces, HDMI(mini)/ USB C/ USB A. Please select the cor- rect connecting port to connect your device (PC, Phone, DVD Player, PS4 etc.) 1. Connect the Devices via the HDMI Ports 1) Connect your TV stick or laptop to HDMI port of the projector. -
Page 19: Troubleshooting
TROUBLESHOOTING Problems listed below might occur during the operation of your projector. Please refer to the possible factors which might cause the issue to do troubleshooting. 1. When turning on the power switch, the indicator light does not work. 1) The power might not be connected well. 2) Check the over-heat protection system. - Page 20 Scan and download the PDF user manual Where to Get More Help Support@yabertech.com @Yaber Entertainment Projector @Yaber Entertainment Projector www.yaberglobal.com...
