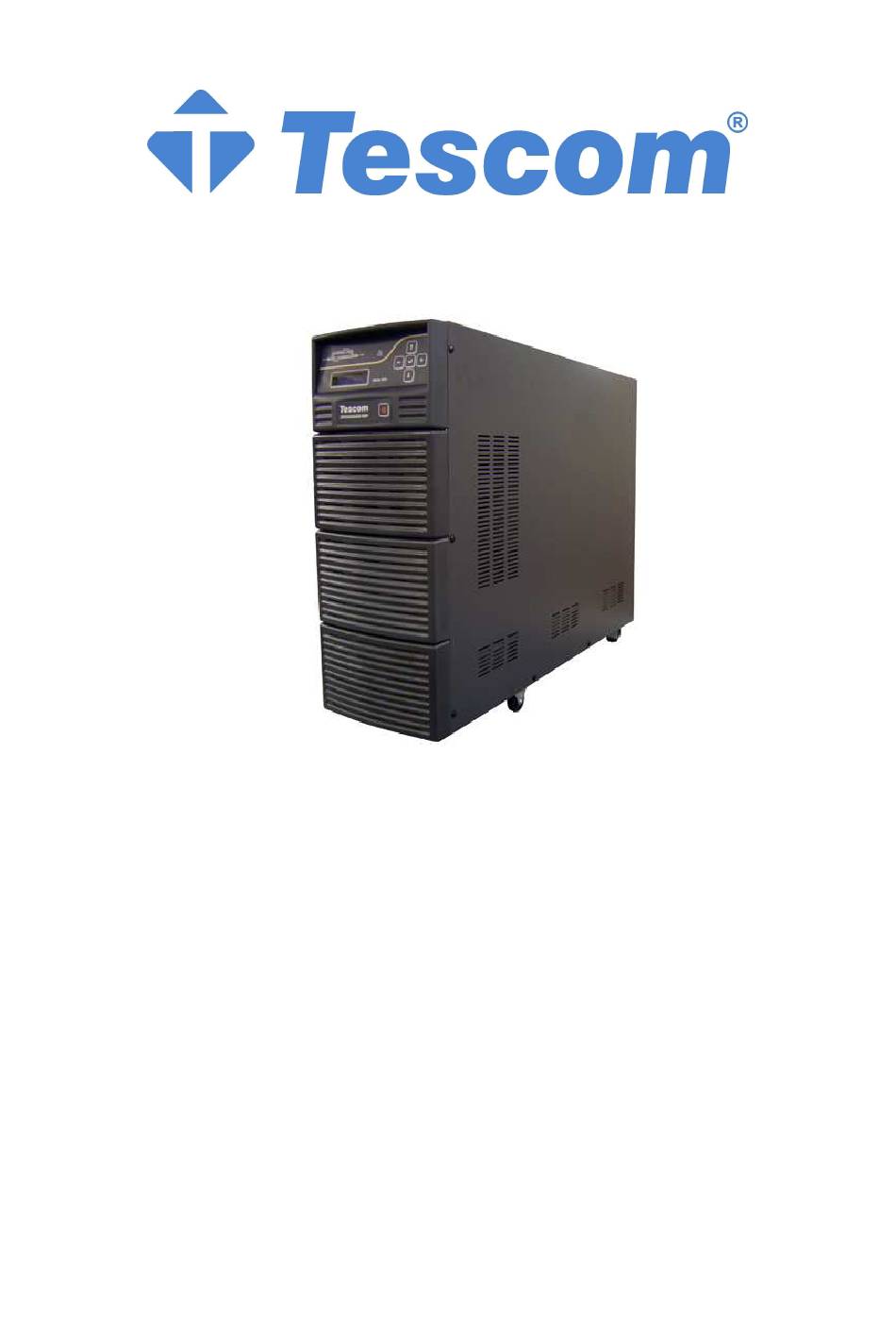

- Page 1 CL110D USER MANUAL...
- Page 2 INTRODUCTION Thank you for choosing this product Our company is specialized in the design, development and production of Uninterruptible Power supplies (UPS) The UPS described in this manual is a high-quality product, built to guarantee the best performance. This manual contains detailed instructions on how to use and install the product. For information on how to use your equipment to its full potential, this manual should be kept close at hand beside the UPS and PLEASE READ BEFORE STARTING TO WORK ON IT! Copying all or any part of this manual is strictly prohibited unless due authorization has been granted by the...
-
Page 3: Table Of Contents
CONTENTS I. GENERAL DESCRIPTION ........................1 CL110D SERIES UPS .......................... 1 Cooling ..............................3 Block diagram of the UPS ........................3 SAFETY WARNINGS .......................... 4 Front view of the UPS ........................... 5 Rear view of the UPS ..........................5 VIEW OF THE CONTROL PANEL ......................6 II. -
Page 4: General Description

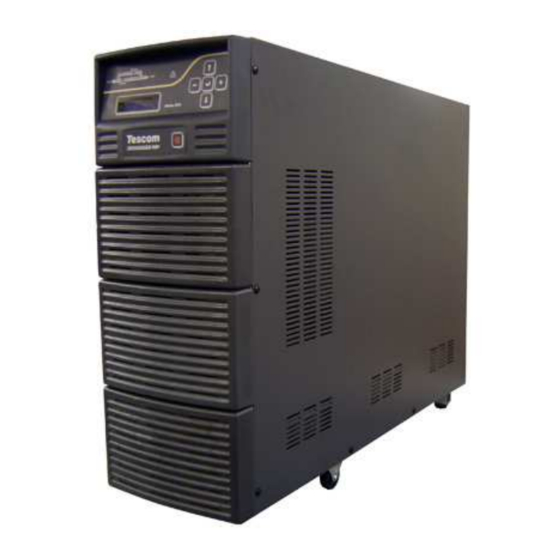

I. GENERAL DESCRIPTION CL110D SERIES UPS To choose the CL110D series as your equipment protector was a wise investment. It includes many features to protect your critical equipments. Power ranges according to models Model Output power CL110D 10000 VA / 7000 Watt This unit supplies continuous power to critical loads from AC input or DC battery power. - Page 5 • INPUT IGBT rectifier type input PFC correction PI controlled PFC circuit Fuse protected input Adjustable mains failure limit Adjustable mains high limit (switching tobattery option) • BYPASS Static bypass system Split bypass input (OPTIONAL) Voltage adaptive load transfer system Adjustable bypass input voltage limits Adjustable frequency synchronization band Maintenance bypass switch (OPTIONAL)
-
Page 6: Cooling
Block diagram of the UPS All power stages and switches/fuses of a CL110D model UPS are shown on the above block diagram. Output switch/fuse Mains input switch/fuse... -
Page 7: Safety Warnings
SAFETY WARNINGS IMPORTANT NOTICES 1. This manual must be carefully read before applying any power to the UPS unit. 2. All warnings in the manual should be adhered to. 3. All operating instructions should be followed. 4. The unit should be supplied by a grounded outlet. Do not operate the unit without ground source. 5. -
Page 8: Front View Of The Ups
Front view of the UPS 1) Cooling inlet of the UPS 2) Control panel 3) Power on/off button Rear view of the UPS 4) Emergency Stop 5) SNMP Socket 6) RS232 communication port 8 10 7) Cooling outlet of the UPS 8) Output switch/fuse (S1) 9) Input switch/fuse (S2) 10) Battery switch/fuse (S3) -
Page 9: View Of The Control Panel
VIEW OF THE CONTROL PANEL MIMIC LAMPS ENTER button Alarm indicator lamp Increases the current data Menu up navigation button Menu down navigation button Decreases the current data Load on bypass lamp Load on UPS lamp Alphanumeric LCD panel function 1. -
Page 10: Preparation For Installation
PREPARATION FOR INSTALLATION PRELIMINARY INFORMATION Model CL110D Nominal output power 10000 VA / 7000 Watt Operating temperature 0 – 40 C Non operating temper. -10 to + 50 C Max.relative humidity 90% (non-condensing) during operation Max.installation altitude 2000 m at nominal power rating... -
Page 11: Installing The Ups
INSTALLING THE UPS When installing the equipment the following points should be considered: • The air outlet and inlet of the UPS is on the rear and front respectively, because of this do not prevent air ventilation from the rear and front side. •... -
Page 12: Cable Sizes
Battery CONNECTIONS CL110D Series UPS run only on 1-Phase AC power supplies with a NEUTRAL line. The UPS unit must be grounded in accordance with electrical regulations Before making power connections to the unit, ensure that the incoming power sources are de-energized and insulated. -
Page 13: Rs232 Connector
Function Description AUX1 RELAY (OPTIONAL) Function selectable (NO-NC programmable) AUX2 RELAY (OPTIONAL) Function selectable (NO-NC programmable) BYPASS RELAY(OPTIONAL) Standard connection to RS232 connector (NO-NC programmable) DIGITAL INPUT OPTIONAL (Reserved for special applications) REPO INPUT Standard Remote Emergency Power Off input (NO-NC programmable) Bypass relay is standard. -
Page 14: External Repo Button
EXTERNAL REPO BUTTON REPO input is the screw terminal pair at the rear next to the RS232 connector. The function of the REPO input can be programmable from ADJUST MENU. The selectable options are: Function Description NO contact If REPO input terminals are shorted emergency power off will applied NC contact If REPO input terminals are opened emergency power off will applied This isolated input is used to turn off the UPS remotely in case of emergency. -
Page 15: Protective Earth
Output Connections If external batteries are used , turn off the battery fuse and plug on the battery cable to the external battery socket on the rear panel of the UPS. External battery connection Also proper control and signal wire connections (alarm relays, REPO etc.) should be made through the screw terminal block shown in figure 11. -
Page 16: Operation
III. OPERATION DESCRIPTION The purpose of the UPS is to provide constant power which is in predefined limits. While the input voltage is in acceptable tolerances, UPS converts the AC mains input voltage to DC voltage , then inverter stage will convert to AC output voltage again. -
Page 17: Preliminary Operations
OTHER Cabinet inside temperature high alarm (adjustable) REPO Emergency Power Off feature. PRELIMINARY OPERATIONS • Visual check of the connections Check that all the connections have been made following the information given in the “Connections” paragraph. • Check that the switch positions are as follows: Output Switch (S1) in OFF position Input Switch (S2) in OFF position Battery Switch (S3) in OFF position... -
Page 18: Switching Off The Ups From On (Normal Operation) Position
• And see the front panel lamps on • Turn on battery switch (S3) • Check that there is no alarm on front panel Switching Off The UPS From On (Normal Operation) Position • Press power button and wait until you hear an intermittent buzzer sound, at his moment the load is transferred to bypass •... -
Page 19: Front Panel
IV. FRONT PANEL DISPLAY At the center of the control panel, there is a 2 lines/16 alphanumeric characters display, which provides a detailed overview of the current status of the UPS. Directly from front panel you can control the UPS, monitor the electrical values of the inputs, output etc..and change the main settings. -
Page 20: Display Menus
DISPLAY MENUS The function of LCD panel is arranged as a 2 level menu structure. -Main menu -Sub menus STATUS MENU ____________________________________________________________ POWER OFF FAULT ! WARNING ! 015 ALARM ! WARNING ! Messages displayed by order of priority WARNING ! 600 PFC START ! INVERTER START ! STATUS NORMAL ! -
Page 21: Measures Menu
MEASURES MENU _________________________________________________________ LOAD:025% 05.0A OUT.:230V 50.0Hz BYP.:230V 50.2Hz (option) LOAD CF.: 1.4 INP.:240V 49.9Hz Use Up and Down buttons to move on submenu I/P CURR.: 18.5 A BATT:257V +0.50A BAT. TIME: - - - mn TEMP: +025 C <ENT>EXIT From this menu users can see all measured parameters of the UPS. -
Page 22: Alarms Menu
<ENT>EXIT If the user presses ENTER button, exits from measures menu to upper menu. INFORMATION MENU _______________________________________________________ SYNC:OK COMM:OK POWER:10000VA FIRM:D100 MODEL:CL110D Use Up and Down buttons to move on submenu BATTERY NR: 020 CHGR.CURR.:1.50A <ENT>EXIT SYNC:OK COMM:OK SYNC:OK indicates that inverter output is synchronous to the bypass input ,COMM:OK indicates that, RS232 serial communication port is active. -
Page 23: Adjust Menu
ADJUST MENU ____________________________________________________________ The submenu items of this menu and their functions are described in the service manual of the CL110D series UPS. Please refer to this document. OPTIONS MENU ____________________________________________________________ This menu contains user adjustable operating modes, options and parameters. These are as follows: LANG: ENGLISH or TURKISH This option determines the front panel language of the UPS. -
Page 24: Time Menu
DATA:RS232 or ADAPTOR Advanced data adaptor is internal type or external type. OPTION DESCRIPTION RS232 RS232 port selection for data transfer ADAPTOR Optional adaptor selection for data transfer RELAYS:NO or NC Dry contact relay outputs on RS232 connector and on other connectors are NC (normally closed) or NO (normally open) type OPTION DESCRIPTION... - Page 25 HOURMTR: 12030 Operating hour meter of the UPS (not resettable) NEXTSERVC: 1000 This number indicates the remaining time until the next scheduled service in terms of hours. The UPS creates a warning if this number is zero or negative. This value can be set by service personnal when service password is entered.
-
Page 26: Command Menu
COMMAND MENU __________________________________________________________ From this menu user can apply immediate commands to the UPS. SOUND.: ON <ENT> BYPASS <ENT>CANCEL SHUT Use Up and Down buttons to move on submenu <ENT>LAMP TEST <ENT>EXIT SOUND: ON or OFF Each pressing to ENTER button will change the alarm buzzer enable(on) or disable(off) status. <ENT>... - Page 27 Message class A51 MAINTENANCE Alarm A52 MANU.BYPASS Alarm A63 INV.FAILURE Alarm A65 MAINS HIGH Warning A66 +DC BUS TOL Alarm A72 AV.BATT.HIGH Warning A76 –DC BUS TOL Alarm A77 BYP. FREQ. BAD Warning A7 BATTERY LOW warning Battery voltage is less than the minimum allowed warning value. During this alarm inverter continues its operation.
-
Page 28: Status Codes
A23 SERVICE TIME The service time indicator was adjusted during the last service and UPS working-hour has reached this value . This warning means that the routine maintenance time is now. The maintenance includes dust cleaning ,battery maintenance, etc. A42 BATTERY TEST UPS is performing battery test A48 BYPASS UPS has transferred the load to bypass supply for some reason. -
Page 29: Fault Codes
Fault codes The following table shows fault codes and messages of the UPS. If any one of these fault codes is shown at the second line of LCD panel, the UPS operation has already been blocked. To restart the UPS, from SERVICE menu go to <ENT>... -
Page 30: Adjust Menu
Split bypass input is the secondary AC input to the UPS. This input is used for transferring the load to bypass. As a default, there is no split bypass input on a standard CL110D series UPS. But during production in the factory, it is possible to install a separate split bypass input to the UPS. - Page 31 In some cases, if the mains input voltage is high (adjustable level), it is better to operate on batteries to prevent any possible damage to the UPS.. But this selection can cause battery discharge if the mains input voltage is continuously high.
-
Page 32: Communication Interface And Remote Management
V. COMMUNICATION INTERFACE AND REMOTE MANAGEMENT The following information contains standard communication interface for CL100 series UPS. Additional RS485 interface for long distance communication is available as an option. The following communication interfaces are available for UPS units Possible connections to UPS unit RS232 Serial communication (Standard) RS485... - Page 33 For adjustment parameters you must type the service password from front panel, otherwise any adjustment and option selection parameter will be refused. Optional SNMP adaptor The internal and external type adaptors are available for CL110D series UPS . External SNMP adaptor If external type data adaptor is used from options menu select DATA:RS232 option.
-
Page 34: Technical Specifications
VI. TECHNICAL SPECIFICATIONS CL110D MODEL Output (VA) 10000 Output (KW) 7000 Output Power Factor INPUT Number of Phases 1 phase + neutral Input Voltage 220/230/240 VAC (3 wire) Input Voltage Range 170-275V adjustable (without switching to battery power) Input Power Factor (PF) >0.99 at full load... - Page 35 BATTERIES Total number of battery blocks 20 nominal (battery number selectable) Internal batteries 20x12V/7Ah Float Charge Voltage (adjustable) 272 V (for 20x12V batteries at 25 C) End of Discharge Voltage (adjustable) 192 V (for 20x12V batteries) Boost Charge Available Boost charge voltage (adjustable) 288 V (for 20x12V batteries) Battery Test Available (automatic or manual)
- Page 37 AGKK9040 12/2009...
