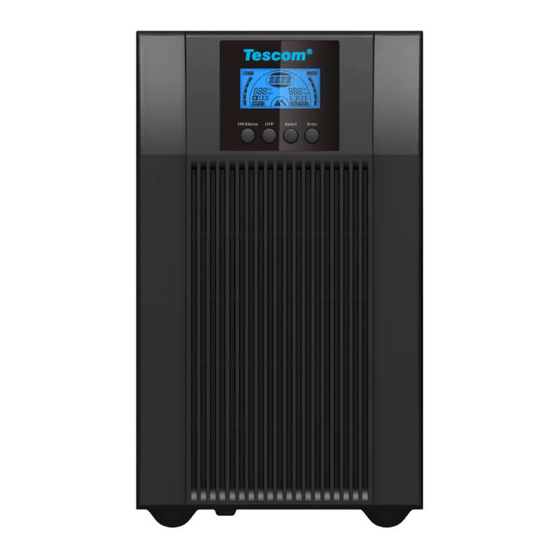

Tescom Quantum+ 1000 User Manual

Online ups
Hide thumbs

Advertisement

Quick Links

Download this manual
USER MANUAL
ONLINE UPS
Quantum+
1000,1000XL,
2000,2000XL,
3000,3000XL

Advertisement

loading
Need help?

Need help?

Do you have a question about the Quantum+ 1000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Tescom Quantum+ 1000

Summary of Contents for Tescom Quantum+ 1000

  • Page 1 USER MANUAL ONLINE UPS Quantum+ 1000,1000XL, 2000,2000XL, 3000,3000XL...

  • Page 2: Table Of Contents

    CONTENT 1. Safety and EMC Instructions ..............1 1.1 Installation ................... 1 1.2 Operation .................... 2 1.3 Maintenance, servicing and faults ............3 1.4 Transport ..................... 4 1.5 Storage ....................4 1.6 Standards .................... 5 2. Description of Commonly Used Symbols ..........6 3.
  • Page 3 7. Setting by LCD Module ................23 8. Trouble Shooting ..................27 9. Maintenance ..................... 30 9.1 Operation ..................30 9.2 Storage ....................30 10. Technical Data ..................31 10.1 Electrical specifications ..............31 10.2 Operating Environment ..............31 10.3 Typical backup time (Typical values at 25°C in minutes :) ....32 10.4 Dimensions and weights ..............

  • Page 4: Safety And Emc Instructions

    1. Safety and EMC Instructions Please read carefully the following user manual and the safety instructions before installing or operating the unit! 1.1 Installation ★ See installation instructions before connecting to mains power. ★ Condensation may occur if the UPS is moving directly from a cold to a warm environment.

  • Page 5: Operation

    ■ Figure 1.1 The Air Flow Diagram ★ This UPS receives power from more than one source- disconnection of AC source and the DC source is required to de- energize this unit before servicing. ★ An additional circuit breaker or fuse with rating 16A and breaking capacity 3kA shall be used between power source and input when installation this unit.

  • Page 6: Maintenance, Servicing And Faults

    ★ Remove the protective panel only after disconnecting the terminal connections. 1.3 Maintenance, servicing and faults ★ The UPS operates with hazardous voltages. Repairs may be carried out only by qualified maintenance personnel. ★ Caution - risk of electric shock. Even after the unit is disconnected from the mains power supply (building wiring socket), components inside the UPS are still connected to the battery which are potentially dangerous.

  • Page 7: Transport

    ★ Do not open or destroy batteries. Effluent electrolyte can cause injury to the skin and eyes. It may be toxic. ★ Please replace the fuse only by a fuse of the same type and of the same amperage in order to avoid fire hazards. ★...

  • Page 8: Standards

    1.6 Standards * Safety IEC/EN 62040-1 * EMI Conducted Emission........:IEC/EN 62040-2 Category C2 Radiated Emission........:IEC/EN 62040-2 Category C2 Harmonic Current........:IEC/EN 61000-3-2 Voltage Fluctuation and Flicker....:IEC/EN 61000-3-3 *EMS ESD............:IEC/EN 61000-4-2 Level 3 RS............:IEC/EN 61000-4-3 Level 3 EFT............:IEC/EN 61000-4-4 Level 4 SURGE..........:IEC/EN 61000-4-5 Level 4 CS………………………………….……...:IEC/EN 61000-4-6 Level 3...

  • Page 9: Description Of Commonly Used Symbols

    2. Description of Commonly Used Symbols Some or all of the following symbols may be used in this manual. It is advisable to familiarize yourself with them and understand their meaning:...

  • Page 10: Introduction

    3. Introduction This On-Line-Series is an uninterruptible power supply incorporating double-converter technology. It provides perfect protection specifically for Linux, UNIX, and Windows servers. The double-converter principle eliminates all mains power disturbances. A rectifier converts the alternating current from the socket outlet to direct current.
  • Page 11 UPS Block Diagram...

  • Page 12: Panel Description

    4. Panel Description The display panel of 1K/1KL/2K/2KL/3K/3KL is the same, which is shown as below: ■ Figure 4.1 The Display Panel 4.1 Button Switch Function ON/Silence Turn on UPS system: Button By pressing the ON-Button continuously for more than 1 second the UPS system is turned on.

  • Page 13: Lcd Description

    Deactivate acoustic alarm: By pressing this Button an acoustic alarm can be deactivated in the bypass mode. Release the UPS from fault mode and EPO status. Select The output voltage, frequency, Bypass disable/enable and operating Button mode in No output or Bypass mode, Battery Ah, Battery remain time display disable/enable and Charger current in all mode, could be Enter selected by pressing Select-Button, and confirmed by pressing...
  • Page 14 It indicates the input is connected with mains, and the input power is single phase input. Output Information It indicates output voltage/frequency value, which are displayed alternately. Load Information It indicates the load level. Every grid represents the level of 20%. One grid would be displayed if the level is 0~20% Battery Information...

  • Page 15: Connection And Operation

    5. Connection and Operation The system may be installed and wired only by qualified electricians in accordance with applicable safety When installing the electrical wiring, please note the nominal amperage of your incoming feeder. 5.1 Inspection: Inspect the packaging carton and its contents for damage. Please inform the transport agency immediately if you find signs of damage.
  • Page 16 For 3KL T IEC model, Connect the output and ground wires to the terminal block according to Figure 5.1 and the table 5.1 ■ Figure 5.1 Output Connection diagram of 3KL T IEC model Table 5.1 Terminal Terminal wire size Wire function Tightening torque position...
  • Page 17 (3) Battery Input Connection for long backup time model When connecting the external batteries it’s recommended to pay attention to these following items: ★ Use the battery pack with voltage: 24VDC for 1KL T (2 pcs of 12V batteries), 48VDC for 2KL T, (4 pcs of 12V batteries), 72VDC for 3KL T (6 pcs of 12V batteries) Note: Connection of batteries more than or less than required will cause abnormality or permanent damage.

  • Page 18: Battery Recharge

    (4) EPO Connection: EPO (Emergency Power Off) function is standard feature for UPS, the polarity of EPO is configurable; EPO is normally close as default setting. If the connection between two ports of EPO connector is disconnected, EPO function will be active and the UPS will stop output power immediately.

  • Page 19: Turn On The Ups

    5.4 Turn on the UPS: (1) With mains power connecting: Press On-button continuously for more than 1 second to turn on the UPS, the UPS will get into the Line mode; the LCD screen will indicate the state of the UPS. (2) Without mains power connecting: Even though mains power is not connected to the UPS, the UPS still can be turned on by just simply pressing on button continuously...

  • Page 20: Audible Alarm Mute Function

    5.7 Audible alarm mute function: If the audio alarm is too annoying in battery mode, the audio alarm is able to mute by press ON button continuously for more than 1 second. Moreover, the audio alarm will be active again when the battery reaches low status for reminding that UPS output power will shut down soon.

  • Page 21: Operating Mode For All Models

    6. Operating Mode for All Models Different messages/strings will be displayed on the LCD screen corresponding to different UPS operating modes, as shown in the following table 6.1. Different Warning/fault code, as shown in the following table 6.2. Only one normal operating string or fault string is presented a time. However if several warnings happen at the same time, they will be displayed on the LCD alternately.

  • Page 22: Line Mode

    Fault String Inverter short SHOR Overload fault OVLD Inverter soft start fail ISFT Bus soft start fail bSFT Over temperature fault OVTP Inverter Volt Low INVL Inverter Volt High INVH Bus volt over bUSH Bus volt Low bUSL Bus short bUSS Inverter NTC open NTCO...

  • Page 23: Bypass Mode

    unit Min or Sec) would display in turn every 2s. When the UPS is running in battery mode, the buzzer beeps once every 4 seconds. If the “ON” button on the front panel is pressed for more than 1 second, the buzzer will stop beeping (in silence mode). Press the “ON”...

  • Page 24: Epo (Emergency Power Off)

    UPS working in the No output mode. ■ Figure 6.4 The No output mode 6.5 EPO (Emergency Power Off) It is also called RPO (Remote Power Off). On LCD display, the word of “EPO” will be presented in the position of output voltage. It is a special status which the UPS will shut the output off and send out alarm.

  • Page 25: Abnormal Mode

    CVCF mode can be enabled through the LCD setting or the software (Winpower, etc.). 2) The normal power rating will be derating to 60% in converter mode. 6.8 Abnormal mode In abnormal mode such as Bus fault etc., the corresponding fault string would be shown on LCD display to indicate the status of the UPS, and the background light will become red color.

  • Page 26: Setting By Lcd Module

    7. Setting by LCD Module The output voltage/frequency, Auto bypass status, operating mode in No output mode or Bypass mode, charger current, external Battery AH and battery remaining time function in all mode could be set directly through LCD module. In bypass or no output mode, pressing the “Enter”...
  • Page 27 “240V” at any time; The only one frequency value can be selected in “50Hz”, “60Hz” at any time; Bypass status can be selected in “000” or “001”(Here 000 means Bypass Disable,001 means Bypass Enable),The UPS would turn to bypass mode in several seconds if “Bypass Enable” is selected, and turn to no output mode in several seconds if “Bypass Disable”...
  • Page 28 Step 2: “OPF” after pressing the “Select” button. Step 3: “bYPA” after pressing the “Select” button. Step 4: “MOdE” after pressing the “Select” button. “UPS” is flickering after pressing the “Enter” button. -25-...
  • Page 29 Step 5: “ECO” flickering after pressing the “Select” button. Step 6 : “CVF” flickering after pressing the “Select” button. Press the “Enter” button Short touch “Enter” button exit setting mode. -26-...

  • Page 30: Trouble Shooting

    8. Trouble Shooting If the UPS system does not operate correctly, check the operating status on the LCD display. The Warning code or fault code is shown in Warning& Fault Code Table 6.1 If the UPS system does not operate correctly, please attempt to solve the problem using the table below.
  • Page 31 and after the battery voltage is normal and the mains is normal, the UPS would Switch to line mode automatically again. bLOW Battery low Battery voltage is When audible alarm sounding every second, battery is almost empty. bOPN Battery open Battery pack is Do the battery test to not connected...
  • Page 32 SHOR Inverter short Output short Remove all the loads. circuit Turn off the UPS. Check whether the output of UPS and loads is short circuit. Make sure the short circuit is removed, and the UPS has no internal faults before turning on again.

  • Page 33: Maintenance

    9. Maintenance 9.1 Operation The UPS system contains no user-serviceable parts. 9.2 Storage If the batteries are stored in temperate climatic zones, it is recommended to recharge those batteries every three months for 1~2 hours. It is highly suggested to shorten the recharging intervals in every two months at locations where subjects to high temperatures.

  • Page 34: Technical Data

    10. Technical Data 10.1 Electrical specifications INPUT Model No. 1K T 1KL T 2K T 2KL T 3K T 3KL T Phase Single Frequency 40~70 Hz 220/230/240 220/230/240 220/230/240 220/230/24 220/230/240 220/230/240 0VAC Current(A) 14.5/13.9/13. 14.5/13.9/1 4.9/4.7/4.5A 5.7/5.4/5.2A 9.7/9.3/8.9A 9.7/9.3/8.9A 3.3A OUTPUT Model No.

  • Page 35: Typical Backup Time (Typical Values At 25°C In Minutes :)

    10.3 Typical backup time (Typical values at 25°C in minutes :) Model No. 100 % Load 50 % Load 1K T 3'30" 10'30" 1KL T 16'30" (Base on 1EBM) 45'00"(Base on 1EBM) 2K T 3’30” 10’30” 2KL T 16'30" (Base on 1EBM) 45'00"(Base on 1EBM) 3K T 4'00"...

  • Page 36: Communication Port

    11. Communication Port On the rear panel of the UPS (see Appendix), USB connector is standard, RS232 connector and Slot for optional connectivity cards are optional. 11.1 USB and RS-232(Optional) Communication Ports To establish communication between the UPS and a computer by use an appropriate communication cable.

  • Page 37: Software

    see more detail please check the NMC user manual 12. Software Free Software Download – WinPower WinPower is brand new UPS monitoring software, which provides user- friendly interface to monitor and control your UPS. This unique software provides safely auto shutdown for multi-computer systems while power failure.

  • Page 38: Appendix 1: Rear Panel (Schuko)

    Appendix 1: Rear panel (Schuko) 1K(L) Back View -35-...
  • Page 39 2K(L) Back View 3K(L) Back View of Schuko -36-...

  • Page 40: Appendix 2: Rear Panel (Iec)

    Appendix 2: Rear panel (IEC) 1K(L) Back View -37-...
  • Page 41 2K(L) Back View 3K(L) Back View -38-...
  • Page 42 -39-...
  • Page 43 AGKK12180 10/2016 -40-...

This manual is also suitable for:

Quantum+ 1000xlQuantum+ 2000Quantum+ 2000xlQuantum+ 3000Quantum+ 3000xl
