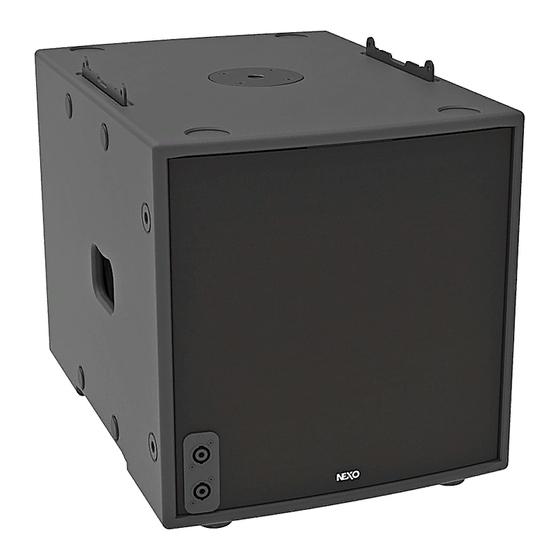

DP4308-01-DI
MSUB12
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MSUB12 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Nexo MSUB12 Series

Summary of Contents for Nexo MSUB12 Series

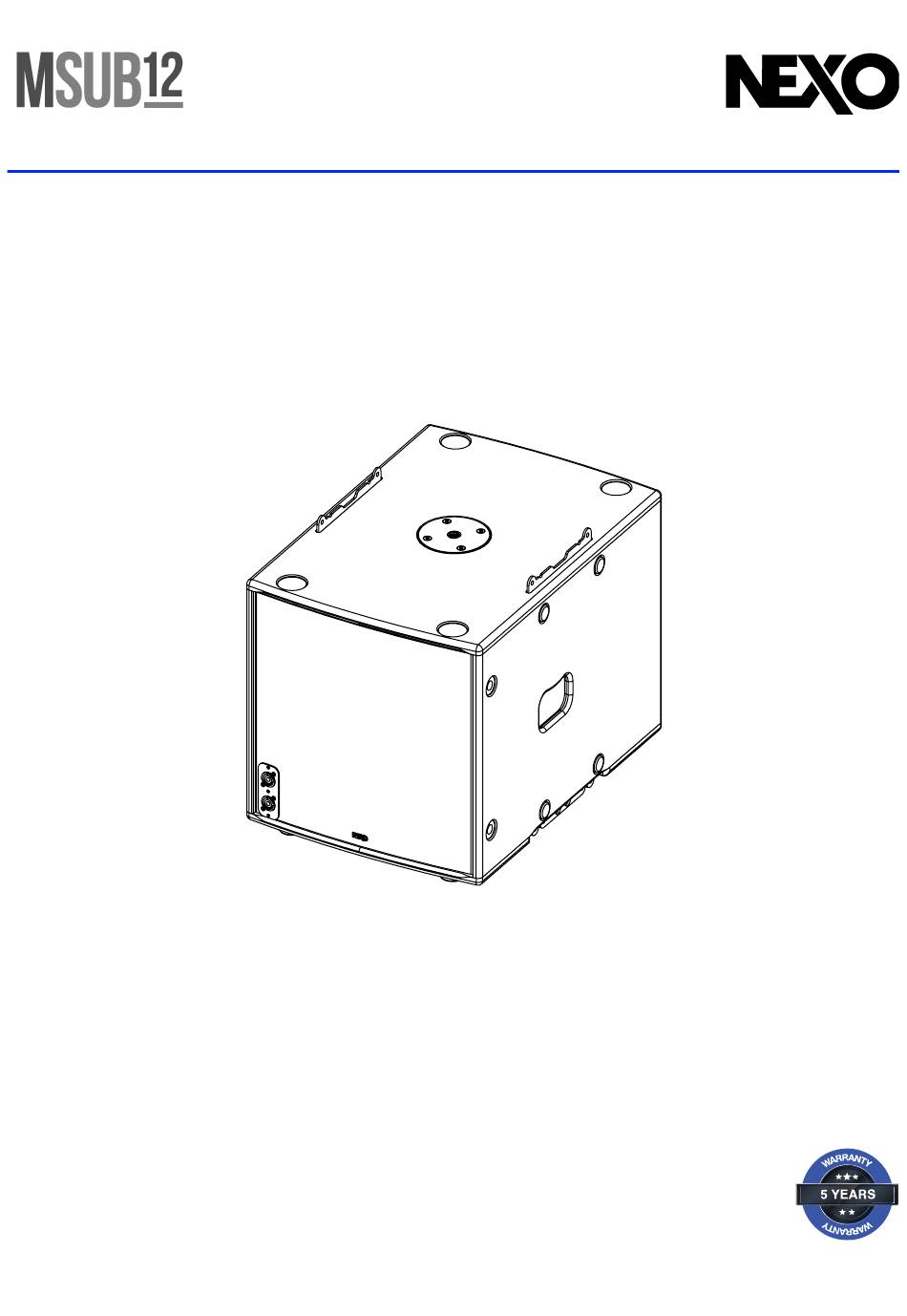

  • Page 1 DP4308-01-DI MSUB12 User Manual...

  • Page 2: Table Of Contents

    ARRAY EQ ____________________________________________________________________________ 12 MAINTENANCE ________________________________________________________________________ 13 TECHNICAL SPECIFICATIONS ___________________________________________________________ 15 USER NOTES _________________________________________________________________________ 16 EU Conformity declaration NEXO SA ZA DU PRE DE LA DAME JEANNE 60128 PLAILLY – France Declare under our sole responsibility that the product Loudspeaker...

  • Page 3: Warnings

    If the system seems to be malfunctioning or damaged, stop using it at once and have it repaired by a NEXO qualified technician. Do not expose the system directly to the sun or to the rain, do not immerse it into fluids, do not place objects filled with liquid on the system.

  • Page 4: Description

    1 /1 → Amplification: • The MSUB12 must be used with a NEXO processor to handle EQ, phase alignment, crossover and excursion/thermal protection for the system loudspeakers. • The following table shows the number of MSUB12 subwoofers usable with each solution.

  • Page 5: Setting Range

    SETTING RANGE SETTING RANGE Please consult nexo-sa.com for NEXO TD Controllers firmware information. There are two setting ranges for surrounding speaker MSUB12: → « OMNI » setups; For a traditional use of the subwoofer in omnidirectional radiation (require at least one subwoofer and a channel of amplifier).
  • Page 6 SETTING RANGE With 1 to 3 GEOM6 For these configurations, MSUB12 should use the 55-85 Hz setup (85 Hz crossover should be used for GEOM6 as well). For stack configuration using MSUB12 in OMNI or CARDIO mode with 1 Back and 2 Front and GEOM6 on top of them, MSUB12 should use the 55-85 Hz setup (85 Hz crossover should be used for GEOM6 as well).
  • Page 7 SETTING RANGE With 4 to 6 GEOM6 For long throw application, MSUB12 should use the 55-120 Hz setup (120 Hz crossover should be used for GEOM6 as well). If a larger stacked Sub is used all together, MSUB12 should use the 63-120 Hz setup.
  • Page 8 SETTING RANGE With 7 to 12 GEOM6 For very long throw application, MSUB12 should be deployed using the 55-120 Hz setup (120 Hz crossover should be used for GEOM6). Ground Stack Sub design Page 8 / 20 MSUB12...

  • Page 9: Msub12 Rigging

    MSUB12 RIGGING MSUB12 RIGGING Place MSUB12 on the top of a second MSUB12. Insert 4 quick release pins 6x15mm (2 on both sides), VXT-BL615. MSUB12 Page 9 / 20...

  • Page 10: Msub12 - Accessories

    All MSUB12 accessories are specifically rated in agreement with structural computations. Never use other accessories – including push-pins – when assembling MSUB12 cabinets than the ones provided by NEXO: NEXO will decline responsibility over the entire MSUB12 accessory range if any component is purchased from different supplier.
  • Page 11 MSUB12 - ACCESSORIES VXT-BL615 Quick release pin 6x15mm for touring application. • MSUB12 – MSUB12 • MSUB12 – VNT-BUMPM6 VNT-MNSTKM6 Stacking option for GEOM6 on top of MSUB12 (with GMT-BUMPER). VNI-FIXBUMPM6 Fixing kit for VNT-BUMPM6 – MSUB12. MST-2CASEMSUB12 For 2xMSUB12 and VNT-BUMPM6 / VNT-EXBARM6 MSUB12 Page 11 / 20...

  • Page 12: Array Eq

    ARRAY EQ ARRAY EQ The ArrayEQ allows to adjust the system frequency response in its lower range (see curves below, with different ArrayEQ values): Page 12 / 20 MSUB12...

  • Page 13: Maintenance

    MAINTENANCE MAINTENANCE Grille changing Remove 4 screws (Tx25). Remove the grille. 12’’ Driver Remove 8 screws (Tx25) to remove the Driver. Remove the driver. Red (+) / Black (-) MSUB12 Page 13 / 20...
  • Page 14 CNX complete Black (with screws and lexan) 05MS12-FPA-PW CNX complete White (with screws and lexan) 1 ’’ Driver (6 ohms) 05HPB12ND Recone Kit 1 ’’ (6 ohms) 05N12ND-4R/K NOTE: Speakers and Grills can be sent back to NEXO for recycling Page 14 / 20 MSUB12...

  • Page 15: Technical Specifications

    TECHNICAL SPECIFICATIONS TECHNICAL SPECIFICATIONS MSUB12 WITH NEXO ELECTRONICS 55Hz – 150Hz Frequency range (±6dB) Sensibility (1W / 1m) 102dB SPL Nominal Peak SPL Level (1m) 130 dB Operating voltage 35 Vrms Crossover Frequency 55-85; 55-120; 55-150 Hz / 63-120; 63-150 Hz Nominal Impedance 6Ω...

  • Page 16: User Notes

    USER NOTES USER NOTES Page 16 / 20 MSUB12...
  • Page 17 USER NOTES MSUB12 Page 17 / 20...
  • Page 18 USER NOTES Page 18 / 20 MSUB12...
  • Page 19 USER NOTES MSUB12 Page 19 / 20...
  • Page 20 USER NOTES NEXO S.A. Tel: +33 3 44 99 00 70 Fax: +33 3 44 99 00 30 E-mail: info@nexo.fr arc d’activité de la Dame Jeanne F-60128 PLAILLY nexo-sa.com Page 20 / 20 MSUB12...
