11. PIVOT TOGGLE SWITCH
The Pivot Toggle Switch is a pneumatic actuated valve that controls the
movement of the GO-A8's wheels and Height Adjustment Forks. When
the Switch is in the PIVOT position, the wheels will rotate so that they are
parallel to the railcar. When the Toggle Switch is in the STRAIGHT
position, the wheels will move perpendicular to the railcar. A label
located next to the Toggle Switch, See Figure 4, shows the Toggle
Switch position for the desired wheel movement.

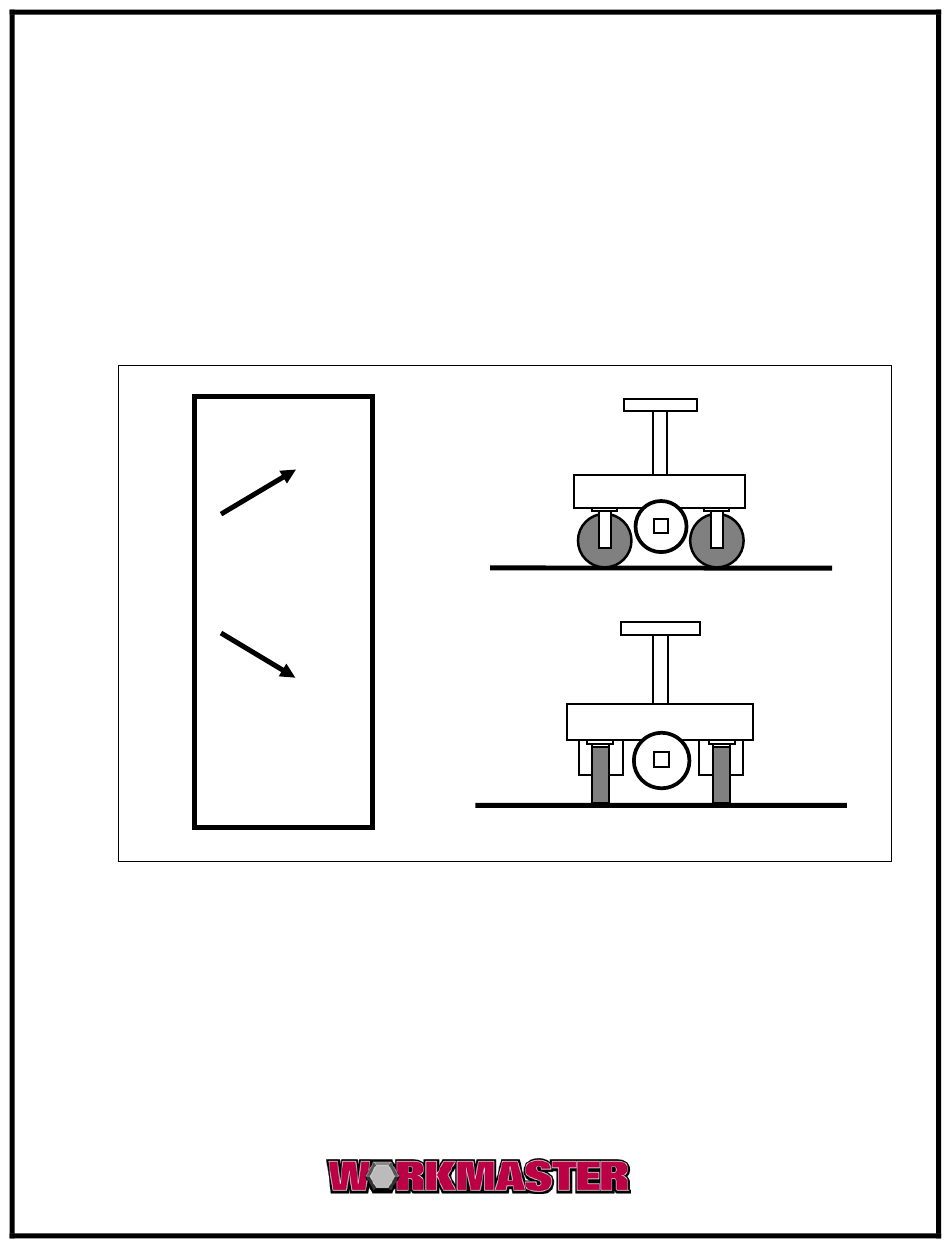

Figure 4: Toggle Switch Label
12. THROTTLE VALVE
The Throttle Valve is a self-closing, lever-operated valve that is attached
to the right hand side of the frame on the Handle Assembly. The Throttle
Valve has a spring loaded lever, which shuts off air to the Impactor as
soon as the throttle is released. Only when the Throttle Lever is
depressed will the Impactor be activated.
P
I
V
O
T
S
T
R
A
I
G
H
T
8
