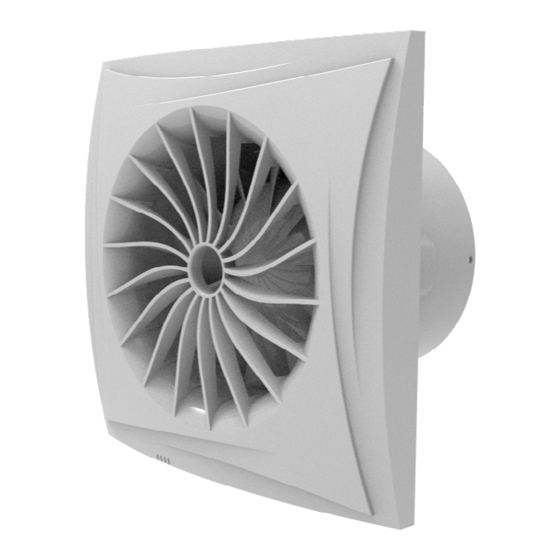

- Page 1 AXIAL FAN Sileo DC 100 Sileo Design DC 100 USER’S MANUAL...
-
Page 2: Table Of Contents
The manual contains information about purpose, technical details, operating principle, design, and installation of the Sileo DC 100 unit and all its modifications. Technical and maintenance staff must have theoretical and practical training in the field of ventilation systems and should be able to work in accordance with workplace safety rules as well as construction norms and standards applicable in the territory of the country. - Page 3 This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
- Page 4 Connection to the mains must be made through a disconnecting device, which is integrated into the fixed wiring system in accordance with the wiring rules for design of electrical units, and has a contact separation in all poles that allows for full disconnection under overvoltage category III conditions.
- Page 5 norms and standards must be observed when installing and operating the unit. Disconnect the unit from the power supply prior to any connection, servicing, maintenance, and repair operations. Connection of the unit to power mains is allowed by a qualified electrician with a work permit for the electric units up to 1000 V after careful reading of the present user’s manual.
- Page 6 Do not close or block the intake or extract vents in order to ensure the efficient air flow. Do not sit on the unit and do not put objects on it. The information in this user’s manual was correct at the time of the document’s preparation.
-
Page 7: Delivery Set
DELIVERY SET 1 pc. Screws and dowels 4 pcs. Plastic screwdriver (only for the models with a timer) 1 pc. insulating gasket 1 pc. User’s manual 1 pc. Packing box 1 pc. BRIEF DESCRIPTION The unit described herein is an axial fan for exhaust ventilation of small to medium-sized premises heated during winter. The fan is designed for connection to ø... -
Page 8: Designation Key
SТ: cord-operated switch and timer SH: cord-operated switch, humidity sensor and timer IR: motion sensor Outlet duct diameter [mm] DC: direct current electric motor Fan series Sileo DC 100; Sileo Design DC 100 Sileo DC 100 Sileo Design DC 100 – – –... -
Page 9: Installation And Set-Up
INSTALLATION AND SET-UP The fan can be mounted to the ceiling or to a wall with air extraction into a ventilation shaft or a matching diameter round air duct (Fig. 2). Mounting configurations with direct air discharge upwards are not allowed (Fig. 2). The fan installation steps are as follows: step 1 —... -
Page 10: Fan Options
FAN OPTIONS (S)Т — fans are equipped with a deactivation delay timer. The timer activates upon control voltage application to input terminal LT by an external switch (e.g. indoor light switch). Upon control voltage removal the fan continues to operate for the period of time set by means of a DIP switch. - Page 11 Upon sensor actuation while to high speed. the fan is enabled the fan switches to high speed. Deactivation delay timer Timer off 5 minute delay 15 minute delay 30 minute delay The delay for Sileo DC 100 IR is 30 seconds.
-
Page 12: Maintenance
Humidity threshold 60 % 70 % 80 % 90 % MAINTENANCE The fan must undergo technical maintenance at least every 6 months. Maintenance steps: • power off the fan and make sure that it is completely de-energised (Fig. 23, 27) •... -
Page 13: Troubleshooting
TROUBLESHOOTING Problem Possible reasons Troubleshooting Make sure the power supply line No power supply. is connected correctly, otherwise When the unit is connected to power troubleshoot a connection error. mains, the fan does not rotate and does not respond to any controls. Internal connection fault. -
Page 14: Manufacturer's Warranty
MANUFACTURER’S WARRANTY The product is in compliance with EU norms and standards on low voltage guidelines and electromagnetic compatibility. We hereby declare that the product complies with the provisions of Electromagnetic Compatibility (EMC) Directive 2014/30/ EU of the European Parliament and of the Council, Low Voltage Directive (LVD) 2014/35/EU of the European Parliament and of the Council and CE-marking Council Directive 93/68/EEC. - Page 15 • Redesign or engineering changes to the unit. • Replacement and use of any assemblies, parts and components not approved by the manufacturer. • Unit misuse. • Violation of the unit installation regulations by the user. • Violation of the unit control regulations by the user. •...
- Page 16 Sileo DC 100 ø99 Sileo Design DC 100 ø99...
- Page 23 Approval mark Sold (name and stamp of the seller) Manufacturing date Sale date...
- Page 24 Sileo ______________________________________ www.blaubergventilatoren.de B162-0-1EN-04 Sileo DC 100...
