is the "programmable key." Out of the box, the key is
pushed to enter the 1 MHz step selection mode for fast
tuning. Hold the key down to enter the tuning step item
in the set mode, and set the tuning step from 5 kHz up
through 200 kHz.
On the top panel, the large, tall knob is the control dial.
In the VFO mode, it is rotated to select the operating
frequency (based on the tuning step selected, as de-
scribed above). In memory mode, it is rotated to select
the memory channel. In the set mode, it's rotated to
select an option. In the character entry mode, it's ro-
tated to select an alphanumeric character
when naming a repeater. The smaller knob just
to the right of the control dial is the volume/
power knob; rotate it to the right to turn on the
radio, and continue to rotate it for increased
audio volume output.
On the right side panel is an external micro-
phone/speaker jack, which has a removable
cover protection; this needs to be kept on or
with the optional external microphone attached
to meet the IP67 requirements for dust-tight
and waterproof protection.
Function Display
On the front panel, the function/frequency
screen is basic but complete. It shows the
operating frequency/memory with the alpha-
numeric programmed name, and features like
the battery capacity, duplex, tone, VOX, auto-
matic power off, key lock, memory channels,
and more.
The signal RF bar meter displays the
relative strength of the incoming
signal, and the relative RF output
of the radio on transmit. An
QST
42 August 2023 www.arrl.org
operating mode icon is dis-
played for FM, and for
FMN
Bottom Line

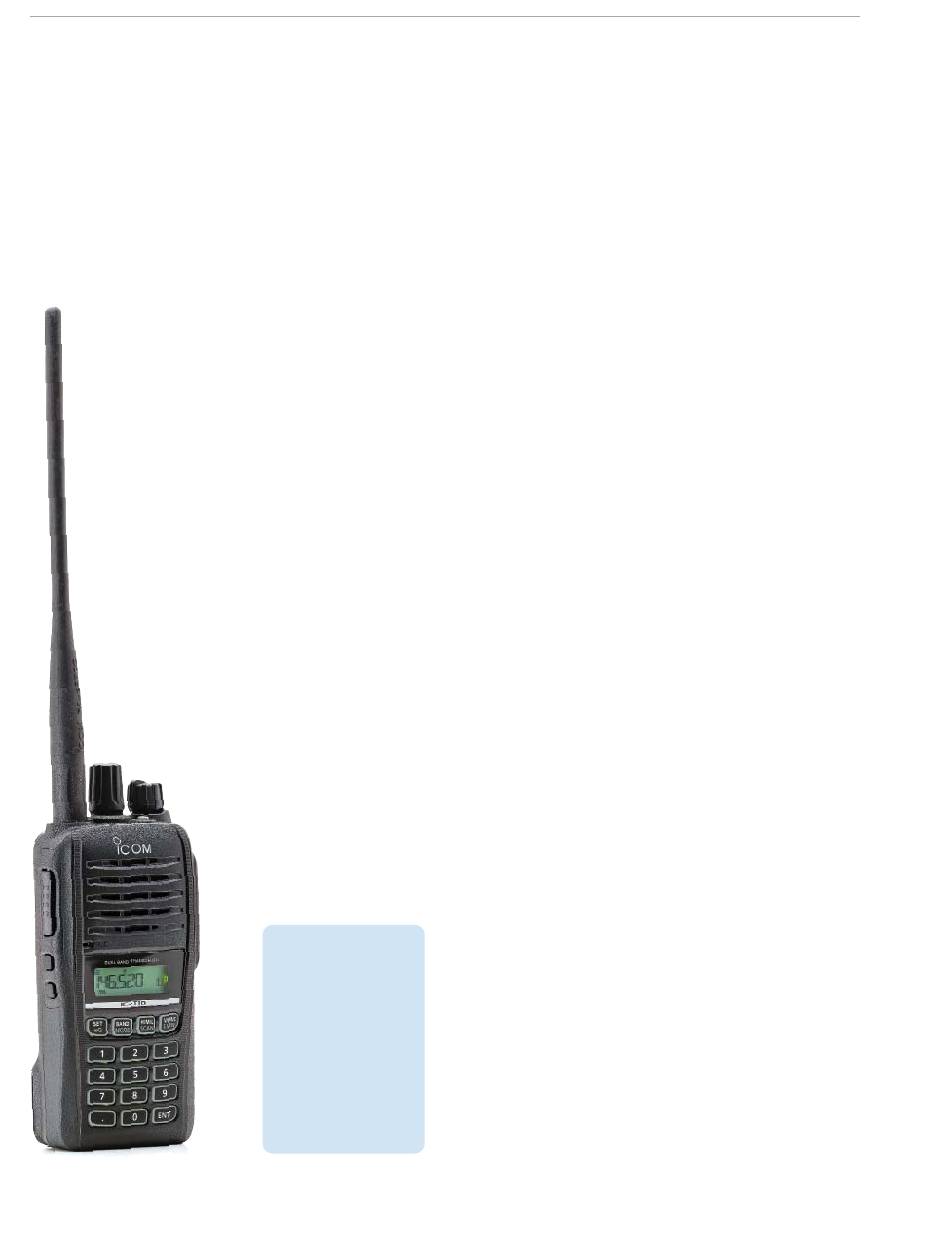

The Icom IC-T10
is a small dual-
band handheld
transceiver that is
solidly built, well
designed, and
easy to use right
out of the box.
FM narrowband operation. Power icons are displayed
— for low power, for medium power, and no icon is
L M
displayed when the radio is in high-power mode.
The battery is charged by the included BC-213 drop-in
charger cradle, and a spare battery pack can be
charged in the cradle without the radio.
There are four frequency selection modes: VFO, mem-
ory, call channel, and weather channel. In VFO mode,
the operating frequency can be selected by rotating
the dial knob. In memory mode, a memory channel
that has been programmed by the user can be se-
lected. In call channel mode, the operator can recall
the two most often used frequencies programmed by
the user. Note that the
BAND
between the two call channels. The weather channel
mode is selected to monitor channels of NOAA
weather broadcasts.
To select the operating band, fi rst select the VFO
mode, then push the
BAND
the VHF band, the UHF band, and the FM broadcast
radio band.
Set the operating frequency using the keypad numbers
or by turning the top panel
mode. RF power output can be set to approximately
5 W (high), 2.5 W (mid), or 0.5 W (low) by repeatedly
pushing the button on the front panel (it is indi-
H/M/L
cated on the bottom of the display screen). To lock
down the operating frequency, hold down the
icon button.
The home channel — selection of the most often used
frequency for VHF and UHF — is accomplished by
pushing the simple, tiny
HOME
between the volume knob and the dial knob, and cy-
cling through them by repeatedly pushing the
button. The frequencies are stored by selecting the
frequency and then holding down the
until a beep sounds.
To set function values, push the
SET function is displayed, push the
edly to toggle between functions. For example, to set a
repeater tone, push the
SET
again repeatedly until the
Rotate the dial knob one click to turn it on. Then push
the button one more time to select the repeater
SET
tone frequency. Rotate the dial knob to select and set
the desired tone frequency. Other frequently used
standard SET items include duplex reverse, tuning
step, priority scan, tone scan, etc. Several initial SET
mode items program the radio for basic "set and for-
get" settings.
Reprinted with permission; copyright ARRL.
