- Page 1 LEC315 Serials Inclination Compensation 3D Electronic Compass Technical Manual...

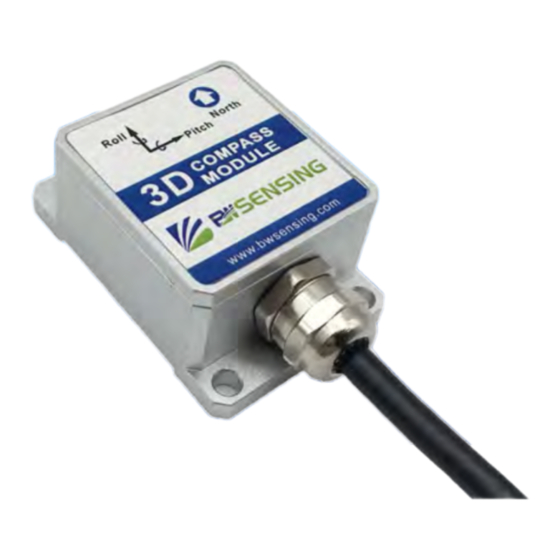

- Page 2 LEC315 Inclination compensation 3D electronic compass LEC315 is a cost-effective 3D electronic compass developed by Bewis Sensing Technology LLC. The product adopts the patented hard iron and soft iron calibration algorithm of Beiwei Sensing Technology LLC, which can provide high-precision heading information when its inclination reaches 30°.
-
Page 3: Specifications
LEC315 Inclination compensation 3D electronic compass Specifications Electrical Specifications Power supply +5V DC Operating current 30mA（Max40mA） Operating temperature -40~85℃ Store temperature -55~100℃ Performance Specifications 2°（RMS，Pitch <85°） Heading accuracy Compass heading parameter 0.1° Resolution 0.5° Repeatability Pitch accuracy 0.15° Compass tilt 0.15°... - Page 4 LEC315 Inclination compensation 3D electronic compass Resolution: The measured minimum change value that the sensor can detect and resolve within the measurement range. Accuracy: The error between the actual angle and the Root mean square(RMS) of the measured angle of the sensor (≥16 times). Mechanical Characteristic Metal connector（standard cable is 1.5m）...
- Page 5 LEC315 Inclination compensation 3D electronic compass Measurement & Installation The main sensitive components of the LEC315 sensor are magnetometers and accelerometers. The compass uses a magnetometer to sense the geomagnetic field to calculate the direction of the sensor. The accelerometer is used to measure the angle between the compass and the gravity, and provides the tilt compensation when the compass calculates the azimuth.
- Page 6 LEC315 Inclination compensation 3D electronic compass 6.The product is placed in a vertical state, the smooth side of the casing is facing downward (the pitch and the roll are both within ±5°), rotate one revolution at a constant speed approximately and use for more than 10 seconds.
- Page 7 LEC315 Inclination compensation 3D electronic compass Protocol 1Data Frame Format： （8 data bits，1 stop bit，No parity check，default baud rate 9600） Data Checksum Command Identifier Address Code Frame Length （1byte） （1byte） （1byte （1byte） （1byte） （0byte） 0x77 Data Format: Hexadecimal Identifier: Fixed to 77 Frame Length: Length from Frame Length to Checksum（included）...
- Page 8 LEC315 Inclination compensation 3D electronic compass 2.3 Read Heading azimuth angle Command： 77 04 00 03 07 Identifier Command Data Frame Length Address Code Checksum （1byte （1byte） （0byte） （1byte） （1byte） （1byte） 0x77 0x04 0x03 Command response： Identifier Frame Length Data Address Code Command Checksum...
- Page 9 LEC315 Inclination compensation 3D electronic compass 2.5 Set baud rate Command： 77 05 00 0B 02 12 Identifier Frame Length Command Data Address Code Checksum （1byte （1byte） （1byte） （1byte） （1byte） （1byte） 0x77 0x05 0x0B Command response： Identifier Frame Length Address Code Command Data Checksum...
- Page 10 LEC315 Inclination compensation 3D electronic compass 2.8 Set address Command: 77 05 00 0F 01 15 Frame Length Command Identifier Address Code Data Checksum （1byte） （1byte） （1byte （1byte） （1byte） （1byte） 0x05 0x77 0x0F XX Address Command response： Frame Length Address Code Command Identifier Checksum...
- Page 11 LEC315 Inclination compensation 3D electronic compass Command response： Identifier Frame Length Data Address Code Command Checksum （1byte （1byte） （1byte） （1byte） （1byte） （1byte） 0x00: success 0x77 0x8C 0x05 0xFF: failure Note: 5Hz Data Rate means that 5 sets of angle data are automatically output every second, and so on. When the product with the half-duplex RS485 interface is set to automatically outputs data to the outside, it may not be able to receive the input command effectively.
-
Page 12: Ordering Information
LEC315 Inclination compensation 3D electronic compass Ordering Information Way of communication Package condition Product number IP67 Package/Metal Connector S 32 LEC315-232 IP67 Package/Metal Connector LEC315-485 RS485 IP67 Package/Metal Connector LEC315-TTL Executive standard ● Enterprise Quality System Standard: ISO9001:2008 Standard (Certificate No.:10114Q16846ROS) ●... - Page 13 EC315 Inclination compensa tion 3D electronic compass Wuxi Bewis Sensing Technology LLC Address: Building 30, No. 58 Xiuxi Road, Binhu District, Wuxi City Hotline: 400-618-0510 Tel: +86 510 85737178-801 Email: sales@bwsensing.com Website: www.bwsensing.com...
