- Page 1 BWS2200 Series Voltage Output High-precision Dual Axis Inclinometer Technical Manual V3.0...

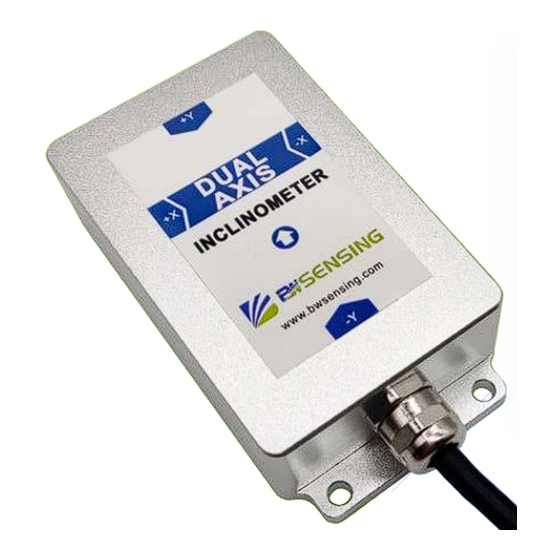

- Page 2 BWS2200 Voltage Output High-Precision Dual Axis Inclinometer Introduction BWS2200 is a dual-axis high-precision inclinometer with MEMS technology and digital output launched by Bewis Sensing. It has a measurement range of ±30° and a maximum accuracy of 0.001°. It is currently the most accurate product in the industry. The sensor uses a high-resolution differential digital-to-analog converter with built-in automatic compensation and filtering algorithms to minimize errors caused by environmental changes.
-
Page 3: Performance Index
BWS2200 Voltage Output High-Precision Dual Axis Inclinometer Electrical index Parameter Condition Minimum Typical value Maximum Voltage (V) Current (mA) No load Output load (kΩ) Resistive Output load (nF) Capacitive Operating temperature(℃) Storage temperature(℃) Performance index Condition ±5 ±15 ±30 Measurement Range (°) Mutually Measurement axis perpendicular... -
Page 4: Product Feature
BWS2200 Voltage Output High-Precision Dual Axis Inclinometer Product Feature Mechanical feature Connector Metal joint（cable 1.5m) Protect level IP67* Shell material Magnesium aluminum alloy anodizing Installation Three M4 screws *Waterproof to IP67 after gluing Package product size Product size：L103.8*W55.4*H26（mm） PCB size Product size: L69*W49*H12 (mm) The length and width may have an error of ±1mm, please refer to the actual product Bewis Sensing Technology LLC... -
Page 5: Installation
BWS2200 Voltage Output High-Precision Dual Axis Inclinometer Installation The correct installation method can avoid measurement errors. When installing the sensor, please do the following: First of all, make sure that the sensor mounting surface is completely close to the measured surface, and the measured surface should be as level as possible. - Page 6 BWS2200 Voltage Output High-Precision Dual Axis Inclinometer Electric Interface Electrical interfaces BL ACK GREEN YELLOW BROWN ORANGE GRAY Cable color & Function Output U YOUT U XOUT Ground DC12-36V GRAY DC 12-36V Output Ground GREEN U XOUT BROWN YELLOW ORANGE U YOUT BLACK Electrical interfaces...
- Page 7 BWS2200 Voltage Output High-Precision Dual Axis Inclinometer Debugging Software You can download the serial debugging assistant directly on the official website (technical service -> download area), or you can use the more convenient and intuitive host computer software. BWS2200 supporting serial port debugging software can connect the inclination sensor on the computer to display the angle.
-
Page 8: Order Information
BWS2200 Voltage Output High-Precision Dual Axis Inclinometer Order information Model Communication mode Package situation BWS2200-30-05 0-5V Voltage/RS232 IP67 package /Metal joint BWS2200-30-010 0-10V Voltage/RS232 IP67 package /Metal joint Executive standard ● Enterprise Quality System Standard: ISO9001:2015 Standard (Certificate No.064-21-Q-3290-RO-S) ● CE certification (certificate number: M.2019.103. U Y1151) ●... - Page 9 BWS2200 Series Voltage Output High-precision Dual Axis Inclinometer Wuxi Bewis Sensing Technology LLC Add：Building 30, NO. 58, Xiuxi Road, Binhu District, Wuxi City, Jiangsu Province, China Tel：+86 18921292620 Mail：sales@bwsensing.com Web：www.bwsensing.com...
