- Page 1 LoRaWAN LR-WS2000 High-precision wireless inclinometer Technical Manual V3.0...
-
Page 2: Main Feature

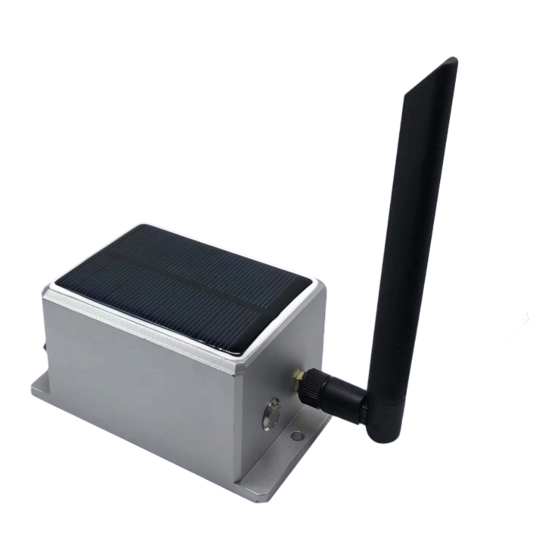

LoRaWAN LR-WS2000 High-precision wireless inclinometer Introduction LoRaWAN LR-WS2000 high-precision wireless inclinometer designed structural health monitoring. It use rechargeable lithium battery, can be used for up to 5 years on a single charge (In condition of sending data once a day) it can be easily charged, with solar panel. -
Page 3: Product Feature
LoRaWAN LR-WS2000 High-precision wireless inclinometer Application ● Dangerous housing monitoring ● Ancient building protection monitoring ● Bridge tower inclination measurement ● Tunnel monitoring ● Dam monitoring ● Foundation pit monitoring ● Slope disaster prevention ● Tower tilt monitoring Product Feature... -
Page 4: Network Topology
LoRaWAN LR-WS2000 High-precision wireless inclinometer Resolution: The smallest change value of the measured value that the sensor can detect and distinguish within the measurement range. Accuracy: The root mean square error of the actual angle and the sensor measuring angle for multiple (≥16 times) measurements. -
Page 5: Electrical Interface
LoRaWAN LR-WS2000 High-precision wireless inclinometer Package product size Product size：L109*W65*H53（mm） ，the length and width may be a 1mm error, please refer to the actual product Electrical Interface Aviation plug wiring definition BLACK GREEN YELLOW Wire color function 4.2V GND ground... -
Page 6: Installation
LoRaWAN LR-WS2000 High-precision wireless inclinometer Installation This series of products can only be installed vertically (pendulum type measurement), not horizontally. The correct installation method can avoid measurement errors. The following points should be done when installing the sensor: First of all, make sure that the sensor mounting surface is completely close to the measured surface, and the measured surface should be as level as possible, and there should be no included angles as shown in Figure A and Figure C. - Page 7 LoRaWAN LR-WS2000 High-precision wireless inclinometer Executive standard ● Enterprise Quality System Standard: ISO9001:2015 Standard (Certificate No.064-21-Q-3290-RO-S) ● CE certification (certificate number: M.2019.103. U Y1151) ● ROHS (certificate Number: G 190930099) ● GB/T 191 SJ 20873-2003 General specification for inclinometer and level ●...
- Page 8 LoRaWAN LR-WS2000 High-precision wireless inclinometer Wuxi Bewis Sensing Technology LLC Add：Building 30, NO. 58, Xiuxi Road, Binhu District, Wuxi City, Jiangsu Province, China Tel：+86 18921292620 Mail：sales@bwsensing.com Web：www.bwsensing.com...
