- Page 1 AS400 Series High sensitive low zero drift 3-Axis accelerometer Technical Manual V3.0...

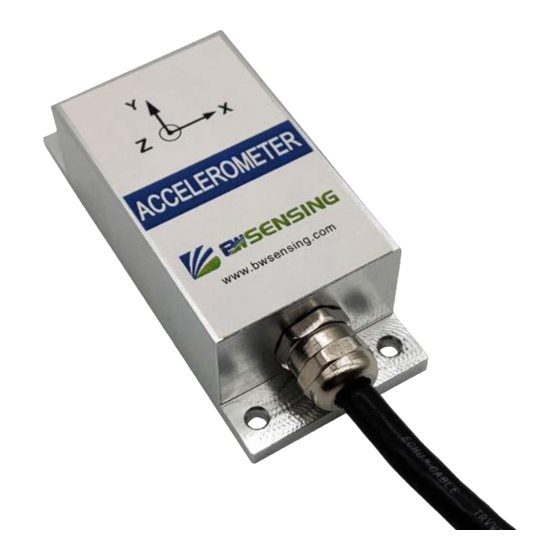

- Page 2 AS400 High sensitive low zero drift 3-axis accelerometer Introduction AS400 is a high-sensitivity low-zero drift digital output triaxial accelerometer developed by Bewis Sensing Company. It is suitable for different industrial fields such as vibration monitoring and impact testing. The product adopts digital interface and has communication such as RS485/RS232/TTL.
-
Page 3: Product Feature
AS400 High sensitive low zero drift 3-axis accelerometer Product Feature Electrical index Parameter Condition Unit Power supply Working current No load Operating temperature ℃ Storage temperature +100 ℃ Performance index Technical Parameters Condition Index parameter Unit Measuring range Tria-xial ±3.6 Resolution Zero bias ±3.6g... - Page 4 AS400 High sensitive low zero drift 3-axis accelerometer Mechanical Index Connector Metal joint （cable 1.5m) Protection level IP67 Shell material Magnesium alloy oxidation Installation Three M4 screws Package size Product size：L90*W40.5*H26（mm） PCB size The front device is 3.85mm, the back is 2.5mm, and the board thickness is 2.0mm Bewis Sensing Technology LLC www.bwsensing.com Tel：+86 18921292620...
-
Page 5: Installation
AS400 High sensitive low zero drift 3-axis accelerometer Installation The correct installation method can avoid measurement errors. When installing the sensor, please do the following: First of all, make sure that the sensor mounting surface is completely close to the measured surface, and the measured surface should be as level as possible. -
Page 6: Electrical Connections
AS400 High sensitive low zero drift 3-axis accelerometer Electrical connections 接线定义 BLUE BLACK GREEN YELLOW Wiring color function DC 9-35V （B、D-） （A、D+） DC9-35 RED VCC Signal 485+ YELLOW D+ acquisition 485- GREEN D- terminal BLACK GND RS 485 Wiring diagram DC9-35V RED VCC Yellow TXD... - Page 7 AS400 High sensitive low zero drift 3-axis accelerometer Debugging software You can download the serial debugging assistant directly in the official website (Technical Service->Download Area), or you can use the more convenient and intuitive PC software. The BWAS400 serial port debugging software can connect the acceleration sensor to the computer data display.
- Page 8 AS400 High sensitive low zero drift 3-axis accelerometer Protocol 1 Data frame format：1（8 data bits，1 stop bit，No parity check，default baud rate 9600） Command Identifier Data length Address code Data area Checksum word （1byte） （1byte） （1byte） （Xbyte） （1byte） （1byte） 0x77H Data Format: Hexadecimal Identifier: Fixed to 77 Data Length: Length from Frame Length to Checksum（included）...
- Page 9 AS400 High sensitive low zero drift 3-axis accelerometer X axis： +003.9967°，Y axis： -006.9028°，Z axis：-082.0138° 77 10 00 84 00 03 99 67 10 06 90 28 10 82 01 38 Prefix, fixed at 77 Data length, fixed at 10 Y axis angle： The format is the same as the X axis Address code, default is 00...
- Page 10 AS400 High sensitive low zero drift 3-axis accelerometer 2.3 Set module address Send command：77 05 00 0F 01 15 Identifier Data length Address code Command word Data area Checksum （1byte） （1byte） （1byte） （1byte） （1byte） （1byte） 0x77 0x05 Correct 0x0F New address Answer command：...
- Page 11 AS400 High sensitive low zero drift 3-axis accelerometer 01 means 5Hz automatic output corresponding data type parameter 02 means 10Hz automatic output corresponding data type parameter 03 means 20Hz automatic output corresponding data type parameter 04 means 25Hz automatic output corresponding data type parameter 05 means 50Hz automatic output corresponding data type parameter 06 means 100HZ automatic output corresponding data typeparameter Note: 1.
-
Page 12: Order Information
AS400 High sensitive low zero drift 3-axis accelerometer Order information RS 485 AS400-1-485 IP67 package/metal joint AS400-1-232 RS232 IP67 package/metal joint AS400-1-TTL IP67 package/metal joint Executive standard ● Enterprise Quality System Standard: ISO9001:2015 Standard (Certificate No.064- 21-Q-3290-RO-S) ● CE certification (certificate number: M.2019.103. U Y1151) ●... - Page 13 AS400 Series High sensitive low zero drift 3-axis accelerometer Wuxi Bewis Sensing Technology LLC Add：Building 30, NO. 58, Xiuxi Road, Binhu District, Wuxi City, Jiangsu Province, China Tel：+86 18921292620 Mail：sales@bwsensing.com Web：www.bwsensing.com...
