smsng-cv27 VESA adapter (V2)
Assembly
instructions
The VESA adapter is compatible with the following Samsung products
(samsung.com):
C24T550FDR, C27T550FDR, C27T550FDU, C32T550FD, C32T550FDR,
LC24T550FDR, LC24T550FDU, LC27T550FDR, S27C390EAU, S32C390EAU,
U32J590UQP

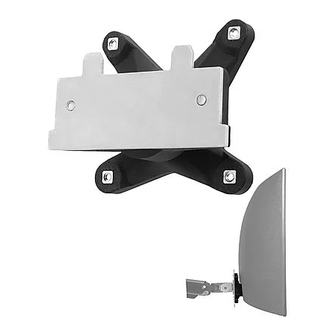

The VESA adapter allows you to conveniently mount your SAMSUNG brand monitor
to a monitor arm with a VESA hole pattern (75 x 75mm). Use the included screws
and nuts.
If you want to mount your VESA adapter directly to the wall, use suitable screws
and dowels. (not included in the scope of delivery).
www.3idee.eu
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for 3idee smsng-cv27
Summary of Contents for 3idee smsng-cv27
- Page 1 VESA adapter (V2) Assembly instructions The VESA adapter is compatible with the following Samsung products (samsung.com): C24T550FDR, C27T550FDR, C27T550FDU, C32T550FD, C32T550FDR, LC24T550FDR, LC24T550FDU, LC27T550FDR, S27C390EAU, S32C390EAU, U32J590UQP The VESA adapter allows you to conveniently mount your SAMSUNG brand monitor to a monitor arm with a VESA hole pattern (75 x 75mm).
- Page 2 Assembly instructions Important Safeguards Please read these instructions carefully and keep them for future reference. If you pass the product on to third parties, these instructions should always be included. Failure to follow these instructions may result in injury or damage to persons or the product, for which we cannot accept any liability.
- Page 3 For the disposal of this product we recommend to contact the responsible local authorities or disposal services. They can provide you with detailed information on available disposal options and recycling centers in your area. 4. Manufacturer Information 3idee Technologies S.à r.l. 5 Um Lenster Bierg L-6125 Junglinster Luxembourg 5.
- Page 4 Assembly instructions Scope of Delivery Accessories 4x M4x14 screw with cross recess (SP2)
- Page 5 Assembly instructions Horizontal / Vertical Alignment Please note: Not all VESA adapters and monitors are designed for vertical (upright) orientation. This limitation is often due to the specific geometry of the adapter or monitor. Do not ignore this information, as the load limit of the adapter can quickly be exceeded if not installed properly. We are continuously working on developing monitors and adapters that are also suitable for vertical orientation.
- Page 6 Remove the base of your Samsung Curved monitor. We also recommend that you remove the round cover on the back of the monitor before you start mounting the VESA adapter and reattach it before you mount the 3idee VESA adapter. Step 2 Now attach the 3idee VESA adapter to your Samsung monitor as shown.
- Page 7 Assembly instructions Step 5 Now please check if the monitor is correctly screwed to the monitor arm. This should look something like the picture. (Figure 4) There is a little space at the marked position. This is correct. Figure 4...
