smsng-ark VESA adapter
Assembly
instructions
The VESA adapter is compatible with the following Samsung products
(samsung.com):
LS55BG970NUXXU, S55BG970NU

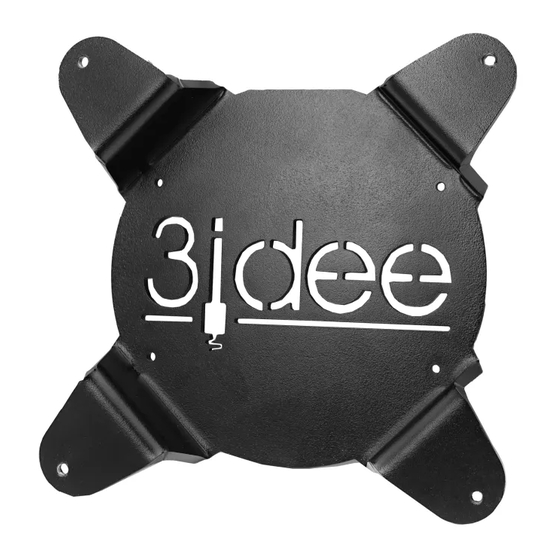

With the VESA adapter, you can easily attach your SAMSUNG monitor to a monitor
arm with a VESA hole pattern (200 x 200mm). Use the supplied screws and nuts
for this.
If you want to attach your VESA adapter directly to the wall, use suitable screws
and wall plugs (not included).
www.3idee.eu
Advertisement
Table of Contents
Related Manuals for 3idee smsng-ark
Summary of Contents for 3idee smsng-ark
- Page 1 VESA adapter Assembly instructions The VESA adapter is compatible with the following Samsung products (samsung.com): LS55BG970NUXXU, S55BG970NU With the VESA adapter, you can easily attach your SAMSUNG monitor to a monitor arm with a VESA hole pattern (200 x 200mm). Use the supplied screws and nuts for this.
- Page 2 Assembly instructions Important Safeguards Please read these instructions carefully and keep them for future reference. If you pass the product on to third parties, these instructions should always be included. Failure to follow these instructions may result in injury or damage to persons or the product, for which we cannot accept any liability.
- Page 3 For the disposal of this product we recommend to contact the responsible local authorities or disposal services. They can provide you with detailed information on available disposal options and recycling centers in your area. 4. Manufacturer Information 3idee Technologies S.à r.l. 5 Um Lenster Bierg L-6125 Junglinster Luxembourg 5.
- Page 4 Assembly instructions Scope of Delivery Accessories 4x M4x16 screw with cross recess 4x M6x20 screw with cross recess 4x U-washer for M6 4x U-washer for M6...
- Page 5 Assembly instructions Horizontal / Vertical Alignment Please note: Not all VESA adapters and monitors are designed for vertical (upright) orientation. This limitation is often due to the specific geometry of the adapter or monitor. Do not ignore this information, as the load limit of the adapter can quickly be exceeded if not installed properly. We are continuously working on developing monitors and adapters that are also suitable for vertical orientation.
- Page 6 M4x16 screw and washers. (Figure 1) Figure 1 Step 4 This is what the 3idee VESA adapter should look like after it has been attached to your Samsung ARK. (Figure 2) Figure 2...
- Page 7 Assembly instructions Step 5 ⚠ ATTENTION Due to the enormous size and weight of this monitor, it is necessary for 3 people to work together to install the VESA adapter. Now attach the Samsung ARK with the mounted VESA adapter to your monitor arm and use the supplied M6x20 Figure 3 screws and washers.
