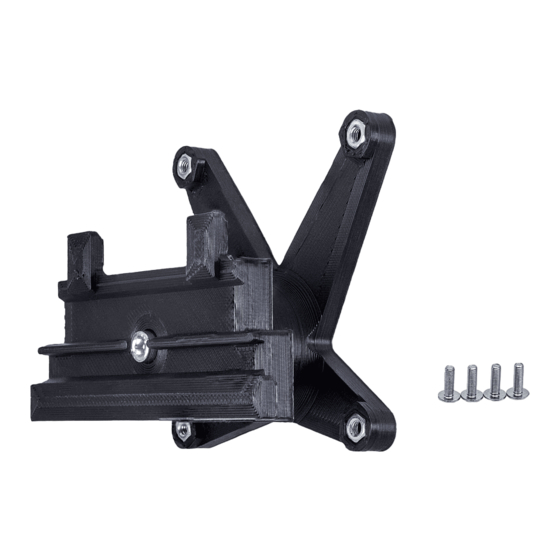

smsng-cv27 VESA adapter
Assembly
instructions
The VESA adapter is compatible with the following Samsung products
(samsung.com):
C24T550FDR, C27T550FDR, C27T550FDU, LC24T550FDR, LC24T550FDU,
LC27T550FDR, S27C390EAU
The VESA adapter allows you to conveniently mount your SAMSUNG brand monitor
to a monitor arm with a VESA hole pattern (75 x 75mm). Use the included screws
and nuts.
If you want to mount your VESA adapter directly to the wall, use suitable screws
and dowels. (not included in the scope of delivery).
