Instructions

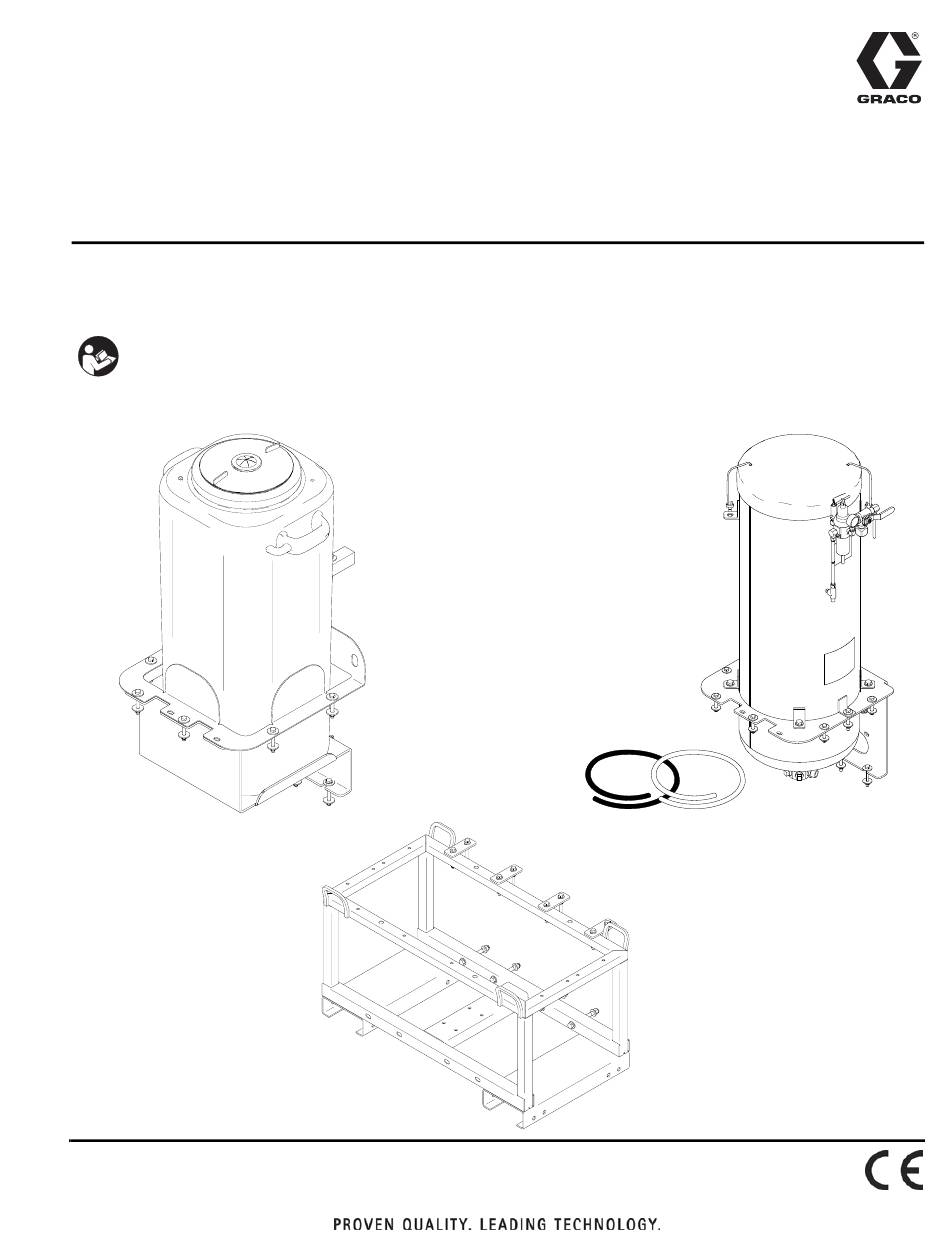

Bead Tank Kit, Paint Tank Kit, and Accessory Frame Kit
For RoadLazer
Model 24G769 - Paint Tank Kit
Model 24G765 - Bead Tank Kit
Model 24H585 - Accessory Frame Kit
Important Safety Instructions
For complete warnings and safety instructions see RoadLazer
™
RoadPak
Line Striper System manual. Save these instructions.
Paint Tank Kit
ti17165a
™
™
RoadPak
Line Striping System
Accessory Frame Kit
™
Bead Tank Kit
ti17163a
3A1302B
EN
ti16794a
Advertisement
Table of Contents
Related Manuals for Graco 24G769
Summary of Contents for Graco 24G769
- Page 1 3A1302B ™ ™ For RoadLazer RoadPak Line Striping System Model 24G769 - Paint Tank Kit Model 24G765 - Bead Tank Kit Model 24H585 - Accessory Frame Kit Important Safety Instructions ™ For complete warnings and safety instructions see RoadLazer ™...
-
Page 2: Pressure Relief Procedure
Pressure Relief Procedure NOTE: If installing to accessory frame kit (24H585) install four bolts (18) and washers (17) to top of bracket (2). Thread nuts (15) onto bolts and torque to 15 ft-lb 4. Use hoist (or other lifting equipment) to lift bead tank The system pressure must be manually relieved to pre- (1) and lower it into tank mounting bracket (2). - Page 3 7. Connect air regulator assembly to bead tank air inlet If assembling second bead tank to remote location: and tighten swivel (22). 10. Tighten air fitting (29) to T-fitting (39). Tighten air fit- ting (29) to elbow fitting (24). Cut air hose (31) to desired length and connect to air fittings (29).
- Page 4 Parts Parts ti16801a Ref. Part Description Qty. Ref. Part Description Qty. 157191 FITTING, adapter (1/2 npt x 3/4 npt) 24F496 TANK, bead, 36 gal., painted 157785 FITTING, swivel 16G777 PLATE, mount, bead tank, painted 164259 FITTING, elbow, street 16G166 COVER, bead tank 166999 FITTING, elbow, street 119771...
- Page 5 33 Gallon Paint Tank Kit (24G769) 33 Gallon Paint Tank Kit (24G769) If Installing to RoadPak Frame: 1. Place paint tank bracket (1) into position on frame. 2. Install three bolts (9) and washers (7) on bottom of support bracket (1). Thread nuts (8) onto bolts and torque to 15 ft-lb.
- Page 6 33 Gallon Paint Tank Kit (24G769) If Installing to RoadPak 5. Secure paint tank with tie-down straps. Accessory Frame: 1. Place paint tank bracket (1) into position on frame. 2. Install three bolts (9) and washers (7) on bottom of support bracket (1).
-
Page 7: Parts List
33 Gallon Paint Tank Kit (24G769) Parts ti17166a Parts List Ref. Part Description Qty. 24H831 BRACKET, Roadpak paint tank, painted 24H832 SLEEVE, Roadpak, painted 24J353 TANK, paint, with 8 in. man-way 194420 GROMMET, hopper 106212 SCREW, cap, hex HD 108851 WASHER, plain... -
Page 8: Installation
Accessory Frame Kit 24H585 Accessory Frame Kit 24H585 Installation 4. Install four bolts (3) and washers (4) to connect accessory frame (1) and RoadPak frame. Thread nuts (5) to bolts and torque to 27 ft-lb. 1. Load assembled accessory frame to desired loca- tion on vehicle. - Page 9 Accessory Frame Kit 24H585 Parts ti17164a Parts List Ref. Part Description Qty. 24H826 FRAME, Roadpak accessory 24J016 STRAP, frame, painted 115211 SCREW, cap, hex HD 109570 WASHER, plain 801020 NUT, lock, hex 100454 SCREW, cap hex HD 100023 WASHER, flat 101566 NUT, lock 3A1302B...
-
Page 10: Graco Standard Warranty
With the exception of any special, extended, or limited warranty published by Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by Graco to be defective.
