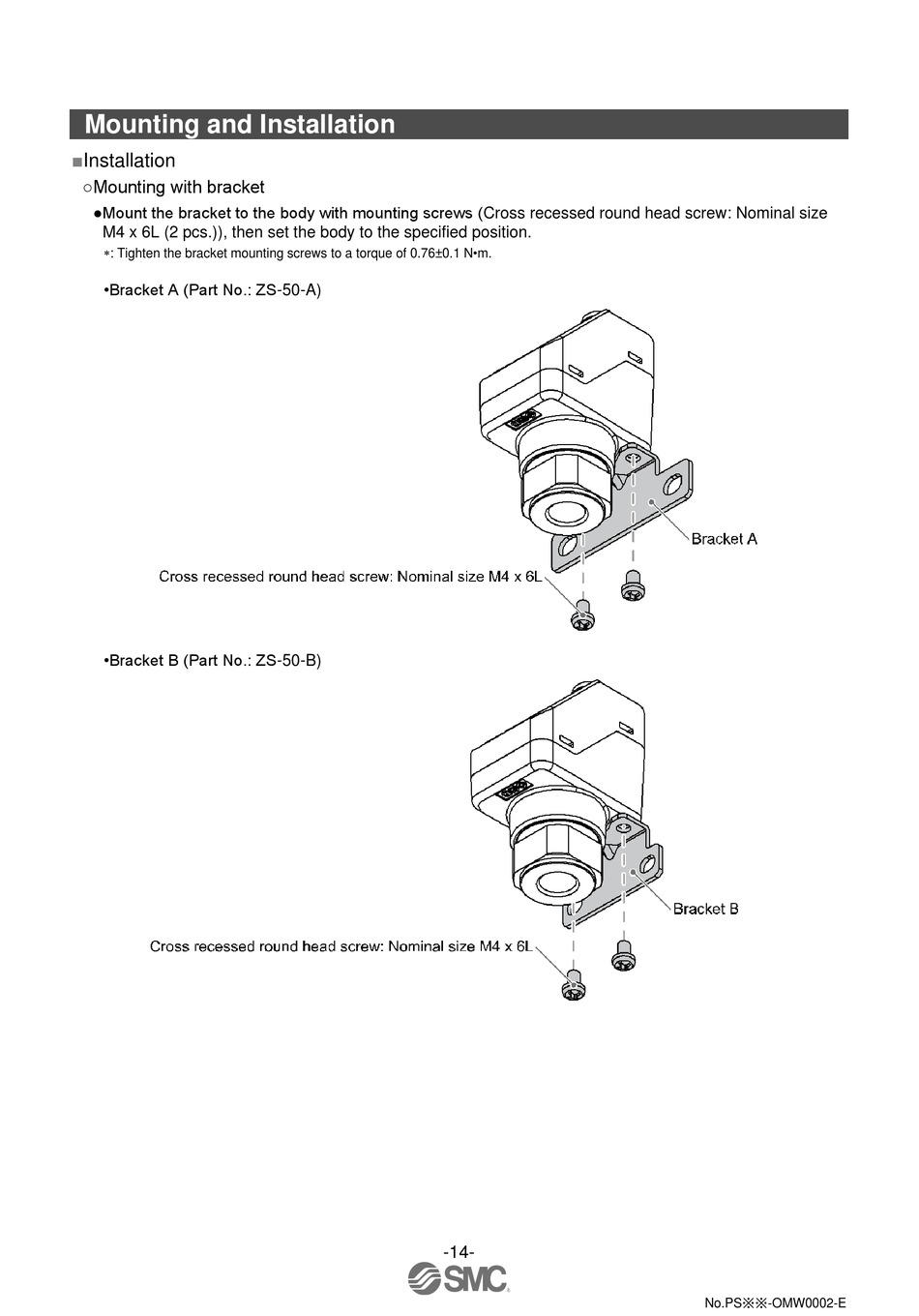

Mounting and Installation
■Installation
○Mounting with bracket
●Mount the bracket to the body with mounting screws (Cross recessed round head screw: Nominal size
M4 x 6L (2 pcs.)), then set the body to the specified position.
: Tighten the bracket mounting screws to a torque of 0.76±0.1 N•m.
•Bracket A (Part No.: ZS-50-A)
•Bracket B (Part No.: ZS-50-B)
-14-
No.PS※※-OMW0002-E
