Summary of Contents for Pickering LXI 60-890-053

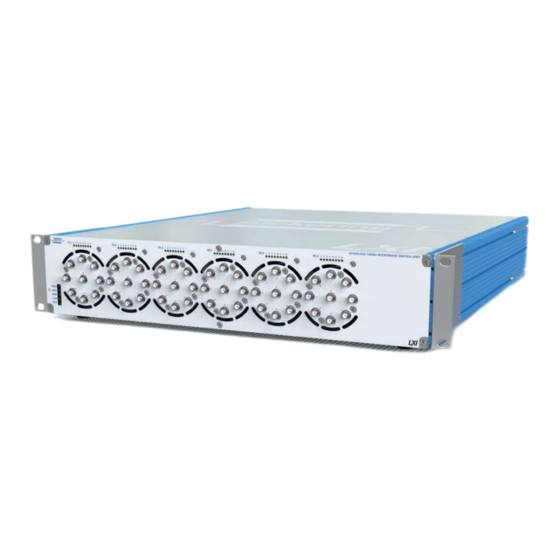

- Page 1 60-890-053 User Manual LXI 18 GHz Microwave Multiplexer pickeringtest.com Issue 1.1, August 2023...
- Page 2 © Copyright (2023) Pickering Interfaces. All Rights Reserved. No part of this publication may be reproduced, transmitted, transcribed, translated or stored in any form, or by any means without the written permission of Pickering Interfaces. Technical details contained within this publication are subject to change without notice.
- Page 3 Pickering Interfaces strives to fulfil all relevant environmental laws and regulations and reduce wastes and releases to the environment. Pickering Interfaces aims to design and operate products in a way that protects the environment and the health and safety of its employees, customers and the public. Pickering Interfaces endeavours to develop and manufacture products that can be produced, distributed, used and recycled, or disposed of, in a safe and environmentally friendly manner.
-
Page 4: Product Safety
Product Safety Safety Symbols The following safety symbols may be used on the product and throughout the product documentation. Meaning/Description Symbol PROTECTIVE EARTH (GROUND) To identify any terminal which is intended for connection to an external conductor for protection against electric shock in case of a fault, or the terminal of a protective earth (ground) electrode. -
Page 5: Table Of Contents
Installing the Software ..............................3.3 ............................3.3 Soft Front Panel Operation Section 4 Programming Guide .................................4.1 Programming Options for Pickering LXI Units ......................4.1 Programming the Microwave Multiplexer ......................4.2 Command Line Control ..............................4.8 Using the Soft Front Panel ............................4.14 Section 5 Connectors ..................................5.1 Section 6 Troubleshooting ................................6.1... - Page 6 Contents Section 7 Maintenance Information ..............................7.1 ............................7.2 Microwave Switch Parts List ..............................7.5 General Maintenance Appendix A Fitting Rack Mounting Flanges ............................A.1 Page (vi)
-
Page 7: Warnings And Cautions
If the unit has removable modules, unused slots in the chassis must be populated with blanking panels to prevent access to user I/O signals that may be present. Blanking panels are available to order from Pickering. If the product is not used in this manner for example by using an extender card then additional care must be taken to avoid contact with exposed signals. - Page 8 Warnings & Cautions CAUTION - Product Documentation Symbol Suitably qualified & trained users should ensure that the accompanying documentation is fully read and understood before attempting to install or operate the product. Safety Instructions Safety Instructions All cleaning and servicing requires the equipment to be isolated and disconnected from the power source and user I/O signals (refer to the Maintenance Section).
- Page 9 The 60-890-053 is controlled through an LXI interface based you have a custom requirement for switching please contact on Ethernet 1000Base-T. This provides a quick and easy your local Pickering Interfaces sales representative. method of installing the 60-890-053 and a simple way of 6x SP8T Switches Switching Diagram for the 60-890-053 Microwave Multiplexer Issue 1.1 August 2023...
- Page 10 Specifications 60-890-053 Section 1 - Technical Specification General Unit Information Mechanical Characteristics 2 U high, full 19” rack width, 500mm deep. Configuration: Six SP8T microwave switches Supplied with front panel ears to enable rack mounting on a Operate Time: 15 ms shelf or other rear support mechanism.
-
Page 11: Technical Specification
LXI 18 GHz Microwave Multiplexer, 6x SP8T Switches: 60-890-053 Product Customization Pickering LXI units are designed and manufactured on our own flexible manufacturing lines, giving complete product control and enabling simple customization to meet very 60-891-001 LXI 36:1 Microwave Multiplexer. -
Page 12: Technical Description
Bridge board. Programming information for the processor is sent to the unit via the LAN interface from a remote computer using the unit’s unique Ethernet address. Programming documentation for the unit as well as data for Pickering’s other LXI compatible switching products is stored in the embedded processor and can be downloaded over the LAN interface. -
Page 13: Installation
The module is designed for indoor use only. Pre-operation Checks (Unpacking) 1. Check the module for transport damage and report any damage immediately to Pickering Interfaces. Do not attempt to install the product if any damage is evident. 2. Ensure that the designated area for the product is of flat and solid construction to support its weight. -
Page 14: Setting The Ip Address
Section 3 - Installation Figure 3-2. Rear view of the Microwave Multiplexer showing the mains supply connection, LAN socket, IP address display & cooling air outlets Setting the IP Address To use the 60-890-053 Microwave Multiplexer over a LAN connection it should be set up and configured as described in the “LXI Getting Started Guide”... -
Page 15: Installing The Software
Section 3 - Installation Figure 3-4. Example configuration window used to manually set the IP address of a Pickering LXI device Installing the Software From the device web page, select ‘Driver Download’ from the menu at the left of the page. This will retrieve the driver from the instrument and install it on your PC. - Page 16 Section 4 - Programming Programming Options for Pickering Interfaces LXI Units For information on the installation and use of drivers and the programming of Pickering’s products in various software environments, please refer to the Software User Manual. This is available as a download from: pickeringtest.com/support/software-drivers-and-downloads...
-
Page 17: Programming The Microwave Multiplexer
Section 4 - Programming Programming the Microwave Multiplexer The 60-890-053 is a microwave multiplexer constructed from six 8-channel (SP8T) microwave switches. Signals paths can be set between the common terminal and any one of the 8 positions or to no connection. The initial state of the SP8T switches is with the common terminal open circuit and all channels open circuit. - Page 18 Section 4 - Programming Table 4-1. 60-890-053 LXI Microwave Multiplexer - Sub-unit/Bit Allocation Switch Signal Path Signal Path Switch No. Sub-unit Type (relay energized) (relay de-energized) RL1 C to 1 RL1 Open RL1 C to 2 RL1 Open RL1 C to 3 RL1 Open RL1 C to 4 RL1 Open...
- Page 19 Direct I/O Driver, piplx The Direct I/O driver is composed of a suite of separate libraries which interact to provide full control of a Pickering LXI unit. In the case of a switch card the communications library picmlx, and the switching library piplx, are needed.
- Page 20 The following code snippet demonstrates the minimum steps required to operate a switch on a Pickering LXI unit. Firstly a device session is opened on the card located at bus 0, device 20 inside the LXI unit located at 192.168.1.100.
- Page 21 Figure 4-2. 60-890-053 LXI Microwave Multiplexer - IVI Architecture Showing Channel Names (default switch positions shown) The implementation of a MUX switch (comA to comE) in the Pickering driver requires explicit disconnection of a previously connected path before a new path may be selected.
- Page 22 Section 4 - Programming SSH (Secure SHell) Interface Refer to the section “Command Line Control of Pickering LXI Instruments” on the following pages for details of how to open this interface and general information on the command set available. After opening an SSH session the 60-890-053 is controlled as follows:...
-
Page 23: Command Line Control
Command Line Control of Pickering LXI Instruments Overview Command line control of the Pickering LXI device range was added in firmware release 2.11. The utility provided was ported to the LXI instrument from the Windows utility PILMon and provides identical functionality. - Page 24 Section 4 - Programming Step 2 - Enable the SSH server Select the Instrument Control page from the main menu Click on the Start button to start the SSH server. The SSH server is now operative and instrument control access is available from an external SSH client application. Notes: The password and state of the SSH server are stored in non-volatile memory within the LXI device and so will remain in effect even after a power cycle.
- Page 25 Section 4 - Programming Instrument Control from an SSH Client In the following examples the SSH client PuTTY is used, the user will have to adapt the instructions for any other client. First start up the SSH client and enter the IP address of the LXI device. The user will be prompted for a login name and password.
- Page 26 Before attempting to control a card it is important to understand the switch architecture of that card and to know how to address the required switch. Each Pickering switch card is represented as a set of one or more sub-units, each sub-unit containing one or more switches.
- Page 27 Section 4 - Programming Commonly Used Mnemonic Commands Will list all the open cards, providing the Card Number of each which is essential for further control of a card, also provided are the details of the card model number and architecture. This is used to select the card and sub-unit to which commands will be addressed.
- Page 28 = UNMASK|MASK an individual output MB <bit_pattern> = set OUTPUT sub-unit mask (to hex bit-pattern) = view sub-unit output mask (as hex bit-pattern) = take control of all Pickering switch cards = release control of all Pickering switch cards VO <bus> <slot> = open card at specified location VC <card>...
-
Page 29: Using The Soft Front Panel
Section 4 - Programming Using the Soft Front Panel Enables the card to be Allows local control with other Allows exclusive access to a controlled by other users users seeing the card as read only card that has multiple users Switch Bank Conrol... -
Page 30: Connectors
Section 5 - Connectors Relay 6 Relay 5 Relay 4 Relay 3 Figure 5-1. Front Panel Layout for the 60-890-053 LXI Microwave Multiplexer Note 1: Only the correct connector series should Relay 2 be mated with this unit. SMA connectors are used and the user should only mate the correct type to the unit, failure to do so may result in damage to the connector. - Page 31 Section 5 - Connectors Ethernet Port Reset Button Diagnostic Port (Pickering use only) Service Port (Pickering use only) IP Address Display Cooling Air Outlets Figure 5-2. Rear Panel Layout for the 60-890-053 LXI Microwave Multiplexer Power Switch Fuses Mains Inlet pickeringtest.com...
-
Page 32: Troubleshooting
Refer to the Warnings and Cautions at the front of this manual. Installation Problems The Plug & Play functionality of Pickering switch cards generally ensures trouble-free installation. If you do experience any installation problems you should first ensure that all cables are properly connected... -
Page 33: Lan Reset
All of my device’s lights are on, why don’t I see a green Ready light, even after a few minutes? Your device has a fault, contact your local sales office. Please contact your local Pickering Interfaces sales office for any further support or email: lxisupport@pickeringtest.com You can also visit our website for product updates, help and downloadable materials at: http://www.pickeringtest.com... - Page 34 Section 7 - Maintenance Information Refer to the Warnings and Cautions at the front of this manual. Periodic Maintenance This product and its corresponding chassis do not require any periodic maintenance. General Cleaning • Isolate the electrical power from the chassis and ensure that no user I/O signals are being applied. •...
- Page 35 Section 7 - Maintenance Information Microwave Multiplexer Parts List The 60-890-053 Microwave Multiplexer chassis contains 6x SP8T microwave switches, 3x Relay Driver PCBs as well as 2 Power Supplies and a Microcontroller assembly. The following pages provide a parts list and internal layout for the PCBs and sub-assemblies that make up the LXI Custom Microwave Unit.
- Page 36 Section 7 - Maintenance Information Table 7-1. 60-890-053 LXI Microwave Multiplexer- Chassis Parts List Manufacturer Part Description Value/Type Pickering Part Number Number Multi-Rail Power Supply “PSU1” ±12V, +5V, +3.3V C-PS-009 Single Rail Power Supply “PSU2” +12V C-PS-016 Mains Inlet Connetor...
- Page 37 Section 7 - Maintenance Information LXI Status LED Board SP8T Micro- Switch Controller (RL1) Board SP8T Bridge Switch Relay Relay Daughter (RL2) Driver Driver Board Board 2 Board 1 SP8T Switch (RL3) DC Distribution Board (Single Rail) SP8T Switch (RL4) DC Distribution Board (Multi Rail) Power Supply...
- Page 38 • Power Supplies and Power Distribution. • Figures 7.3 and 7.4 provide diagrams of how the PCBs are interconnected and gives Pickering part numbers for the various assemblies. Microcontroller and LAN Interface The microcontroller assembly performs the control functions for the unit and provides interfaces to the external ethernet connection and the relay driver boards.
- Page 39 Section 7 - Maintenance Information SP8T Microwave Relay Assemblies (91-203-400) The microwave relay assemblies consist of an SP8T RF multiplexer soldered to an interface PCB. Each microwave relay assembly has two ribbon cables that transfer switching signals to the interface PCB from the relay driver boards. Relay LED Boards (A-PC-1364) Each microwave relay has a front panel LED board to indicate when it is energized with one LED for each signal path of the relay.
- Page 40 Section 7 - Maintenance Information External LAN Connection LXI Status Ribbon Cable (C-CN-1481 + C-CN1620) Microcontroller LED Board Board (A-PC-1004) (A-PC-652) Ribbon Cable (C-CN-838 + C-CN-1576) Ribbon Cables (2x C-CN-1481 + C-CN-1640) Relay Control Relay LED PCB 1 PLX Bridge Driver PCB 1 (A-PC-1364) Daughter Board...
- Page 41 Section 7 - Maintenance Information From From Relay Relay Driver Driver PCB1 PCB2 To LED To LED PCB1 PCB4 SP8T Switch SP8T Switch Relay Assembly (91-203-400) Relay Assembly (91-203-400) From From Relay Relay Driver Driver PCB1 PCB3 To LED To LED PCB2 PCB5 SP8T Switch...
- Page 42 Fitting Rack Mounting Flanges Pickering’s LXI units are supplied with mounting flanges to enable fitting into a standard 19 inch rack. The following procedure describes the attachment of the flanges to the unit’s side extrusions, a No.1 cross head screwdriver will be required.
