- Page 1 North America Air Conditioner Windows AC OPP MSII COMP Service Manual...
-
Page 2: Table Of Contents
Contents 1. Model ..................................1 2.Dimension ................................1 3. Operation Modes and Instructions ........................2 3.1 Display control ..............................2 3.2 Remote control ..............................3 4 Wiring Diagram ............................... 4 5 Electronic function(For remote control models) ..................... 7 5.1 Terms and definitions ............................ -

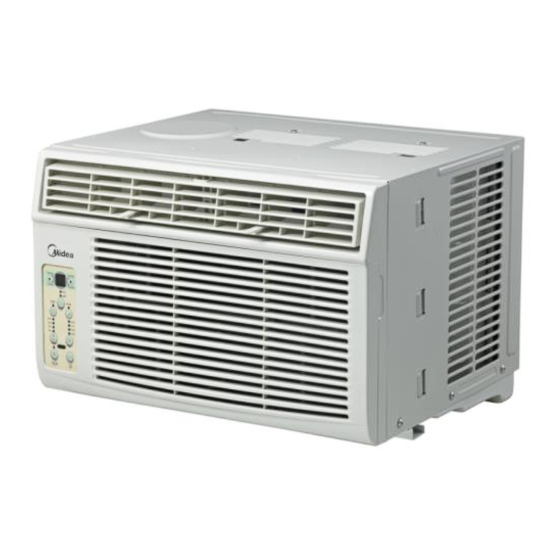

Page 3: Model
1. Model MWHUK-05CMN8-BCK0 MWHUK-06CMN8-BCK0 MWHUK-05CRN8-BCK0 MWHUK-06CRN8-BCK0 MWHUK-05CRN8-BCL1 MSII MWHUK-06CRN8-BCL1 MWHUK-08CRN8-BCJ9 MWHUK-08CRN8-BCL0 MWIUKB11-08CRN8-BCK4N COMP MWAUK-10CRN8-BCJ9 MWAUK-10CRN8-BCL0 MWAUK-12CRN8-BCJ9 MWAUK-12CRN8-BCL0 MWAUK-14.5CRN8-BCK3N MWAUKB11-10CRN8-BCK4N MWAUKB11-12CRN8-BCK4N 2.Dimension Dimension Mode W (mm, inch) H (mm, inch) D (mm, inch) 16.0 12.0 13.2 MSII 18.5 13.4 15.7... -
Page 4: Operation Modes And Instructions
3. Operation Modes and Instructions 3.1 Display control press the button, the fan speed in four steps, Auto, ❶ On-Off Button Low, Med and High. On Dry mode, the fan speed is controlled at Low Press to turn on or automatically. -
Page 5: Remote Control
Mechanical: RG15A(B)/E ② ② ① ① ① On-Off and Mode select switch Use this switch to turn on or off the unit, and select the operation mode for Low Cooling, High Cooling, Low Fan, High Fan. RG15B1/E ② Temperature switch Use this switch to setting the temperature for cooling mode. -
Page 6: Wiring Diagram
4 Wiring Diagram MWHUK-05CMN8-BCK0, MWHUK-06CMN8-BCK0... - Page 7 MWHUK-05CRN8-BCK0, MWHUK-05CRN8-BCL1, MWHUK-06CRN8-BCK0, MWHUK-06CRN8-BCL1 MWHUK-08CRN8-BCJ9, MWIUKB11-08CRN8-BCK4N, MWHUK-08CRN8-BCL0...
- Page 8 MWAUK-10CRN8-BCJ9, MWAUKB11-10CRN8-BCK4N, MWAUK-10CRN8-BCL0, MWAUK-12CRN8-BCJ9, MWAUKB11-12CRN8-BCK4N, MWAUK-12CRN8-BCL0, MWAUK-14.5CRN8-BCK3N, MWHUK-06CRN8-BCK0(22020310004197)
-
Page 9: Electronic Function(For Remote Control Models)
5.5 Cooling mode 5 Electronic function(For remote 1. The temperature can be set from 62 to 86℉(17 to control models) 30℃) 2. Compressor Control 5.1 Terms and definitions The compressor operates as below: TA: Temperature of indoor ambient (T1) Operation conditon ... -
Page 10: Dry Mode
5.6 Dry mode 6 Installation and use notice 1. The temperature can be setting the same as 6.1 The inside should be higher than outside, to cooling mode. 2. The fan speed will keep running at low speed and make sure that the water from evaporator will can’t be controlled at the mode. -
Page 11: Cabinet Cleaning
Notice: Never use hot water over 104℉(40℃) to clean the air filter. Never attempt to operate the unit without the air filter. Every time, when filter check LED light, we suggest to cleaning the filter, it will be better for healthy, and save energy. -
Page 12: Troubleshooting
7 Troubleshooting In general, possible trouble is classified in three kinds. One is called Starting Failure which is caused from an electrical defect, another is ineffective Air Conditioning caused by a defect in the refrigeration circuit and improper application, and the other is called the Structure Damage. 7.1 Troubleshooting Problem Solution... -
Page 13: Sensor Malfunction
7.2 Sensor malfunction LED display Stand for Room temperature sensor error When error occurs, unplug the unit and plug it back in. If error repeats, call for service. 7.3 Characteristic of temperature sensor Resistance KΩ Resistance KΩ Temp.℃ Temp.℉ Temp.℃ Temp.℉... - Page 14 75.2 10.4736 1.9653 10.000 150.8 1.8963 78.8 9.5507 152.6 1.8300 80.6 9.1245 154.4 1.7665 82.4 8.7198 156.2 1.7055 84.2 8.3357 1.6469 7.9708...
