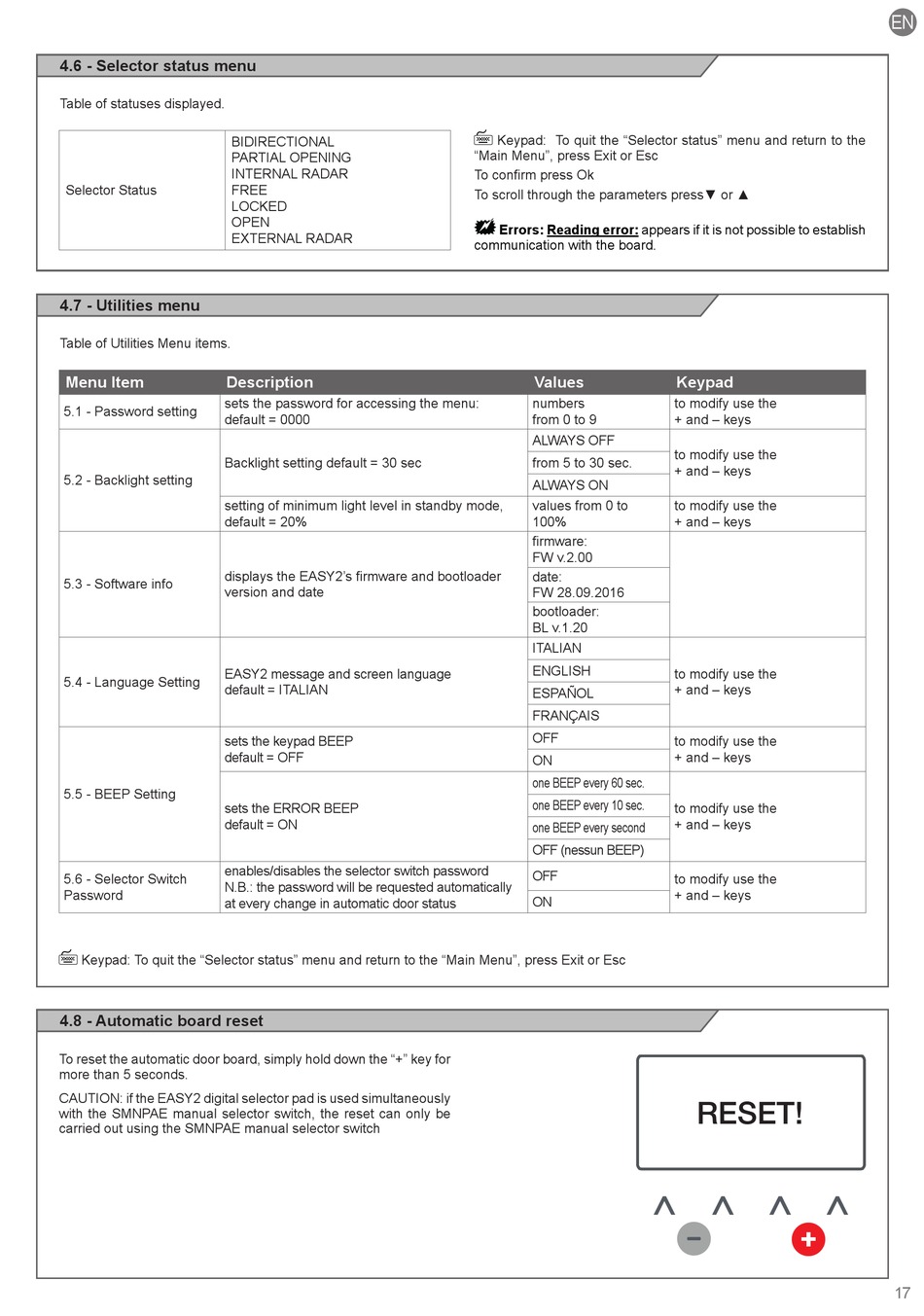

4.6 - Selector status menu

Table of statuses displayed.
BIDIRECTIONAL
PARTIAL OPENING
INTERNAL RADAR
Selector Status FREE
LOCKED
OPEN
EXTERNAL RADAR

4.7 - Utilities menu

Table of Utilities Menu items.
Menu Item Description
sets the password for accessing the menu:
5.1 - Password setting
default = 0000
Backlight setting default = 30 sec
5.2 - Backlight setting
setting of minimum light level in standby mode,
default = 20%
displays the EASY2's firmware and bootloader
5.3 - Software info
version and date
EASY2 message and screen language
5.4 - Language Setting
default = ITALIAN
sets the keypad BEEP
default = OFF
5.5 - BEEP Setting
sets the ERROR BEEP
default = ON
enables/disables the selector switch password
5.6 - Selector Switch
N.B.: the password will be requested automatically
Password
at every change in automatic door status

Keypad: To quit the "Selector status" menu and return to the "Main Menu", press Exit or Esc

4.8 - Automatic board reset

To reset the automatic door board, simply hold down the "+" key for
more than 5 seconds.
CAUTION: if the EASY2 digital selector pad is used simultaneously
with the SMNPAE manual selector switch, the reset can only be
carried out using the SMNPAE manual selector switch

Keypad: To quit the "Selector status" menu and return to the
"Main Menu", press Exit or Esc
To confirm press Ok
To scroll through the parameters press▼ or ▲

Errors: Reading error: appears if it is not possible to establish
communication with the board.
Values
numbers
from 0 to 9
ALWAYS OFF
from 5 to 30 sec.
ALWAYS ON
values from 0 to
100%
firmware:
FW v.2.00
date:
FW 28.09.2016
bootloader:
BL v.1.20
ITALIAN
ENGLISH
ESPAÑOL
FRANÇAIS
OFF
ON
one BEEP every 60 sec.
one BEEP every 10 sec.
one BEEP every second
OFF (nessun BEEP)
OFF
ON
Keypad
to modify use the
+ and – keys
to modify use the
+ and – keys
to modify use the
+ and – keys
to modify use the
+ and – keys
to modify use the
+ and – keys
to modify use the
+ and – keys
to modify use the
+ and – keys
RESET!
