Function Default
J. 16
L. 0
N. 0
O. 0
P. 0
R. 0
T. 0
U. 0
V. 0
Y. 0

Keypad: To quit the "Board parameters menu" and return to
the "Main Menu", press Exit or Esc
To confirm press Ok
To scroll through the parameters press ▼ or ▲
To modify the value of a parameter, press + or –
To confirm modification of a parameter press Ok

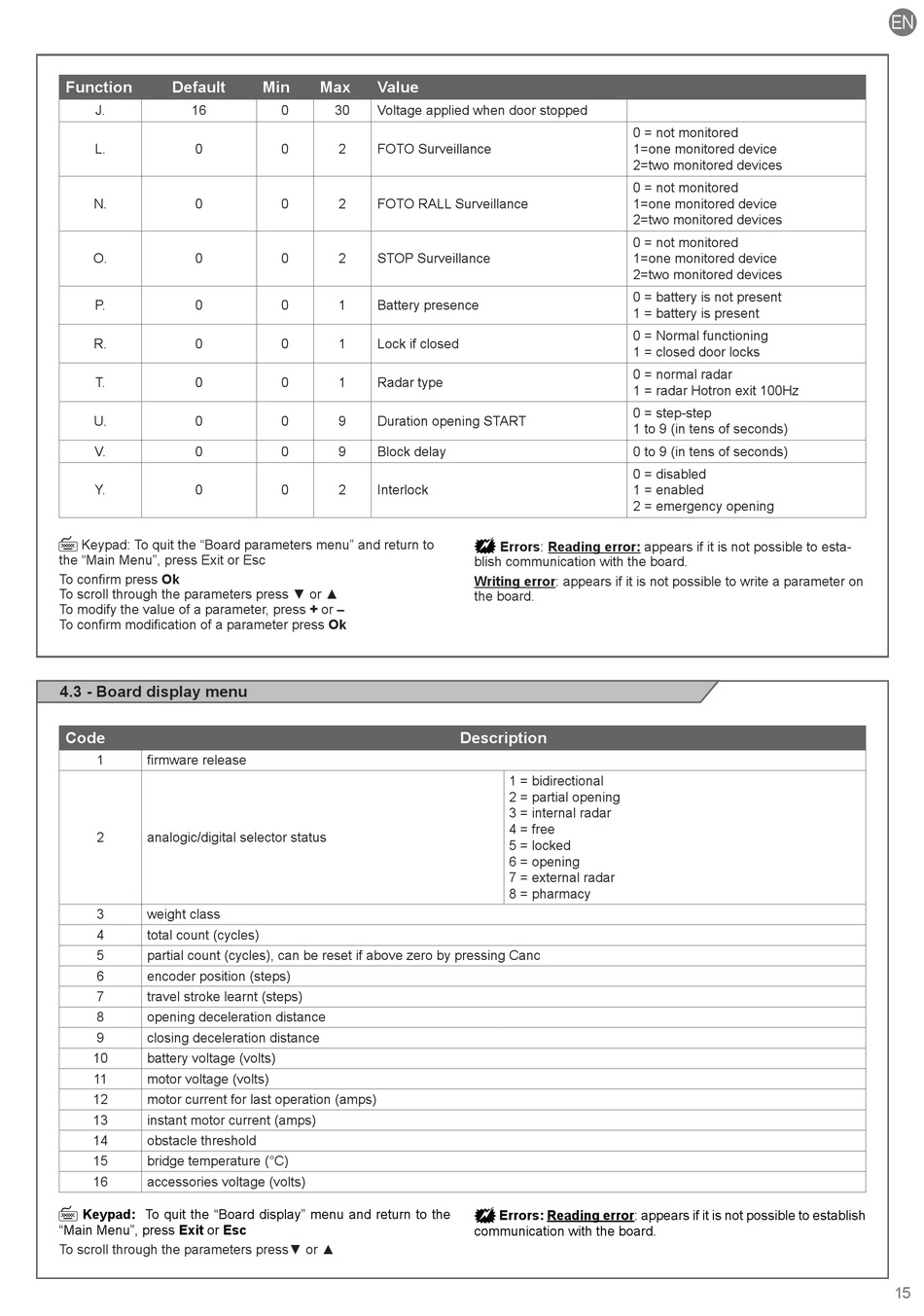

4.3 - Board display menu

Code
1 firmware release
2 analogic/digital selector status
3 weight class
4 total count (cycles)
5 partial count (cycles), can be reset if above zero by pressing Canc
6 encoder position (steps)
7 travel stroke learnt (steps)
8 opening deceleration distance
9 closing deceleration distance
10 battery voltage (volts)
11 motor voltage (volts)
12 motor current for last operation (amps)
13 instant motor current (amps)
14 obstacle threshold
15 bridge temperature (°C)
16 accessories voltage (volts)

Keypad: To quit the "Board display" menu and return to the
"Main Menu", press Exit or Esc
To scroll through the parameters press▼ or ▲
Min Max Value
0 30 Voltage applied when door stopped
0 2 FOTO Surveillance
0 2 FOTO RALL Surveillance
0 2 STOP Surveillance
0 1 Battery presence
0 1 Lock if closed
0 1 Radar type
0 9 Duration opening START
0 9 Block delay
0 2 Interlock
0 = not monitored
1=one monitored device
2=two monitored devices
0 = not monitored
1=one monitored device
2=two monitored devices
0 = not monitored
1=one monitored device
2=two monitored devices
0 = battery is not present
1 = battery is present
0 = Normal functioning
1 = closed door locks
0 = normal radar
1 = radar Hotron exit 100Hz
0 = step-step
1 to 9 (in tens of seconds)
0 to 9 (in tens of seconds)
0 = disabled
1 = enabled
2 = emergency opening

Errors: Reading error: appears if it is not possible to esta-
blish communication with the board.
Writing error: appears if it is not possible to write a parameter on
the board.
Description
1 = bidirectional
2 = partial opening
3 = internal radar
4 = free
5 = locked
6 = opening
7 = external radar
8 = pharmacy
 Errors: Reading error: appears if it is not possible to establish
communication with the board.
