- Page 1 Centrale elettronica Electronic control unit Centrale électronique Elektronische Steuereinheit Central electrónica Central electrónica Electrische zekering kering 900CT-101 MANUALE ISTRUZIONI INSTRUCTION MANUAL MANUEL D'EMPLOI BEDIENUNGSANLEITUNG MANUAL DE INSTRUCCIONES MANUAL DE INSTRUÇÕES GEBRUIKSHANDLEIDING Key Automation S.p.A...
-
Page 2: Electrical Connections
WARNING: It is advisable to read the instructions carefully before you start installation. Failure to comply with these instructions, improper use or incorrect connection may compromise the safety or correct operation of the device and hence of the entire system. No liability shall be accepted for any malfunctions and/or damage due to failure to comply with the instructions. -
Page 3: Models And Characteristics

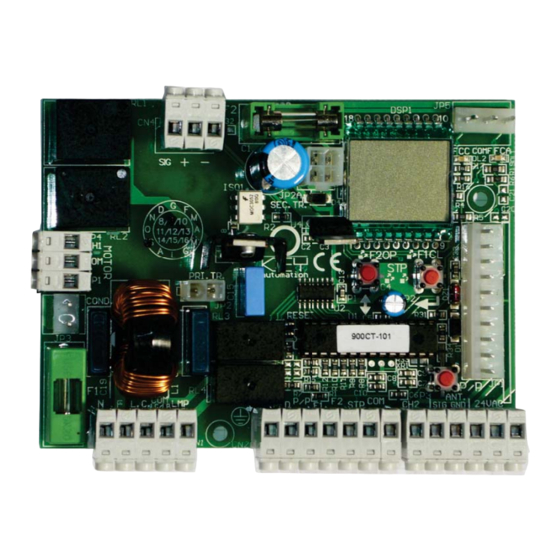

MODELS AND CHARACTERISTICS 900CT-101 Control unit for 1 230 Vac motor sliding or overhead motor, set up for radio card. TECHNICAL DATA CT-101 POWER SUPPLY 230Vac/50Hz MAX. MOTOR LOAD 1200 W ACCESSORIES POWER SUPPLY OUTPUT 24Vac 400mA WORKING TIME 0-120sec... - Page 4 dedicated to the connection of the power supply of the board: 1) N 230Vac 2) F 230Vac 3) L.C. Courtesy light max.25W 230Vac 4) COM LC/LP Shared courtesy light or asher 5) LMP Connected to the asher max.25W 230Vac 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 230Vac RG58...
- Page 5 Accessory power supply connection 24Vac 15 watts max 2nd radio channel connection (only if using 2-channel radio connector) 2nd radio channel connection (only if using 2-channel radio connector) Antenna connection (signal) Antenna connection (mesh) 24Vac Max 10 Watt 24Vac Max 10 Watt 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 JP3 1)
- Page 6 VISUAL DIAGNOSIS The control unit is designed to automate residential and industrial openings with 1 motor having a maximum power of 1200W with active and passive safety controls for installation that is compliant with current safety standards. The great reliability of the system and the high concentration of the functions are managed by a micro-controller so that the system can autonomously calculate all deceleration parameters and the wor ing time with no special programming by the installer.
-
Page 7: Programming Functions
PROGRAMMING FUNCTIONS Access the parameter menu by holding the ENTER button until the rst parameter, appears. Press the ENTER button (P2) repeatedly to advance through the parameters menu. To change the pa- rameter press UP/DOWN (P1) N.B. any variation in function must be made with the automation closed FUNCTIONS/VALUES Medium Obstacle detection activated with L=0 and... -
Page 8: Radio Connector
Provide a maintenance schedule for the system (at least every 6 months for the safeties) with an appropriate register of wor performed. Keep this instruction manual for future reference. Key Automation S.r.l. reserves the right to ma e, at any time, any modi cations which may be required to improve appearance and/or operation. DISPOSAL This product is composed of various components which may in turn contain pollutants. - Page 9 NOTE ANMERKUNGEN NOTES NOTA NOTES OBSERVAÇÕES...
