Installation and mounting manual for EK-FC580 DCII backplate
This product is intended for installation only by expert users. Please consult with a qualified technician for installation. Improper installation may result in damage to your equipment. EK Water Blocks assumes no liability
whatsoever, expressed or implied, for the use of these products, nor their installation. The following instructions are subject to change without notice. Please visit our web site at
www.ekwaterblocks.com
for updates. Before
installation of this product please read important notice, disclosure and warranty conditions printed on the back of the box.

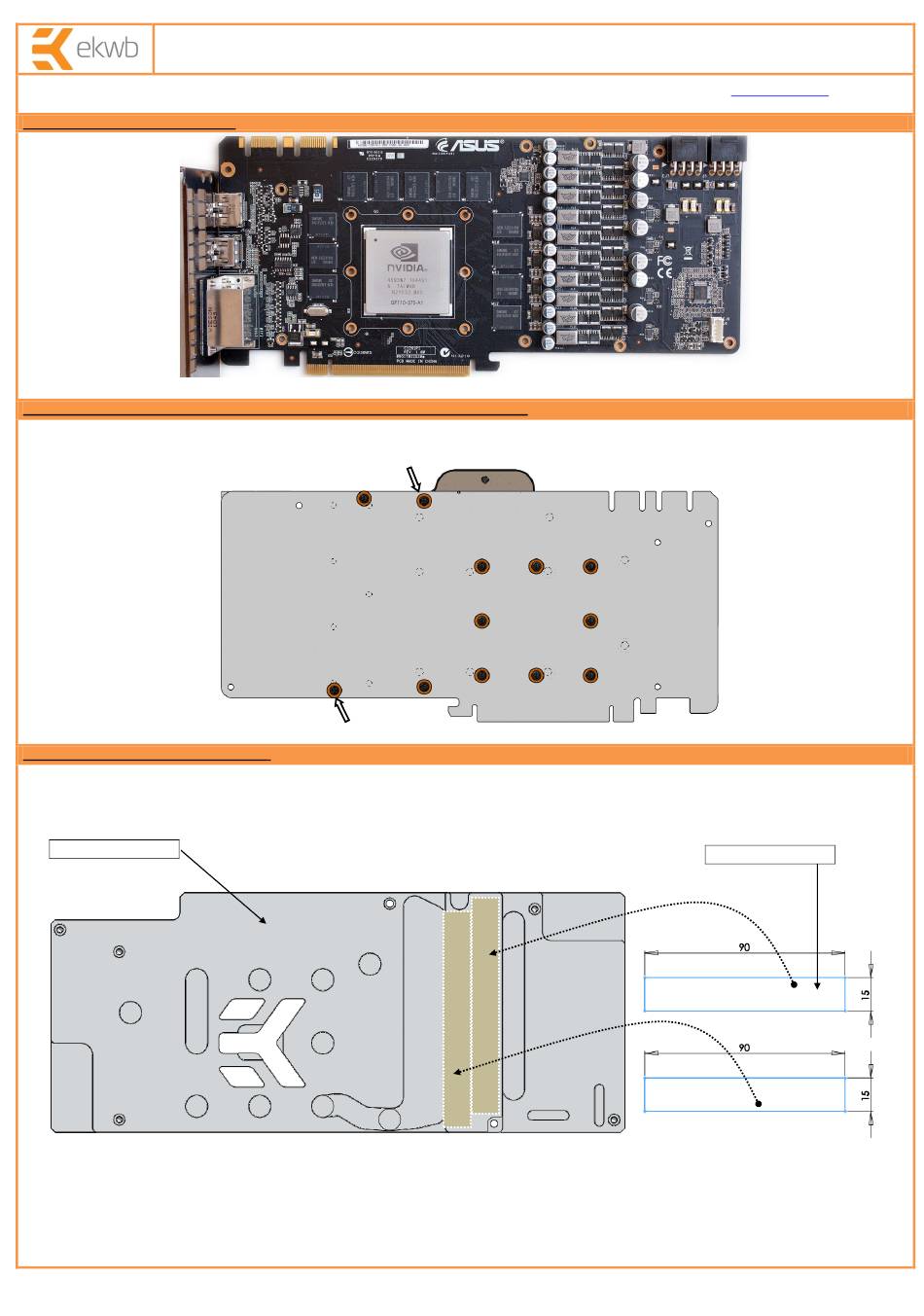

STEP 1: GENERAL INFORMATION. Sample picture of ASUS GeForce 580 GTX DirectCU II graphics card.
STEP 2: PREPARING YOUR ASUS GEFORCE 580 GTX DirectCU II GRAPHICS CARD
EK-FC580 DCII backplate is very easy to install. First install EK-FC580 DCII water block according to its manual. If you have it already installed,
please check below which mounting screws for water block are to be left in their position. Please remove the two (2) screws marked with arrow.
STEP 3: APPLYING THE THERMAL PADS
EK-FC580 DCII backplate features passive cooling of the printed circuit board and it's components therefore it is mandatory to install the enclosed
thermal pad. Please install the two 1mm thick thermal pads (90x15x1mm) directly on the extruded stub on the backplate itself as shown on the
picture below. You may need to trim the excess thermal pads.
EK-FC 580 DCII backplate
Thermal pad 90x15x1mm
th
All disclosures, notices and warranty conditions are being written on the back of the box.
Released on 10
of October, 2011.
Advertisement
Table of Contents
Related Manuals for ekwb EK-FC580 DCII
Summary of Contents for ekwb EK-FC580 DCII
- Page 1 STEP 2: PREPARING YOUR ASUS GEFORCE 580 GTX DirectCU II GRAPHICS CARD EK-FC580 DCII backplate is very easy to install. First install EK-FC580 DCII water block according to its manual. If you have it already installed, please check below which mounting screws for water block are to be left in their position. Please remove the two (2) screws marked with arrow.
- Page 2 The use of enclosed plastic washers is mandatory! (Please note that EKWB holds no responsibility of any kind if assembly is not made by instructions. This applies also for all products that are not out of EKWB production line.
