ekwb EK-FC590 GTX Installation And Mounting Manuals

This product is intended for installation only by expert users. Please consult with a qualified technician for installation. Improper installation may result in damage to your equipment. EK Water Blocks assumes no liability
whatsoever, expressed or implied, for the use of these products, nor their installation. The following instructions are subject to change without notice. Please visit our web site at
installation of this product please read important notice, disclosure and warranty conditions printed on the back of the box.

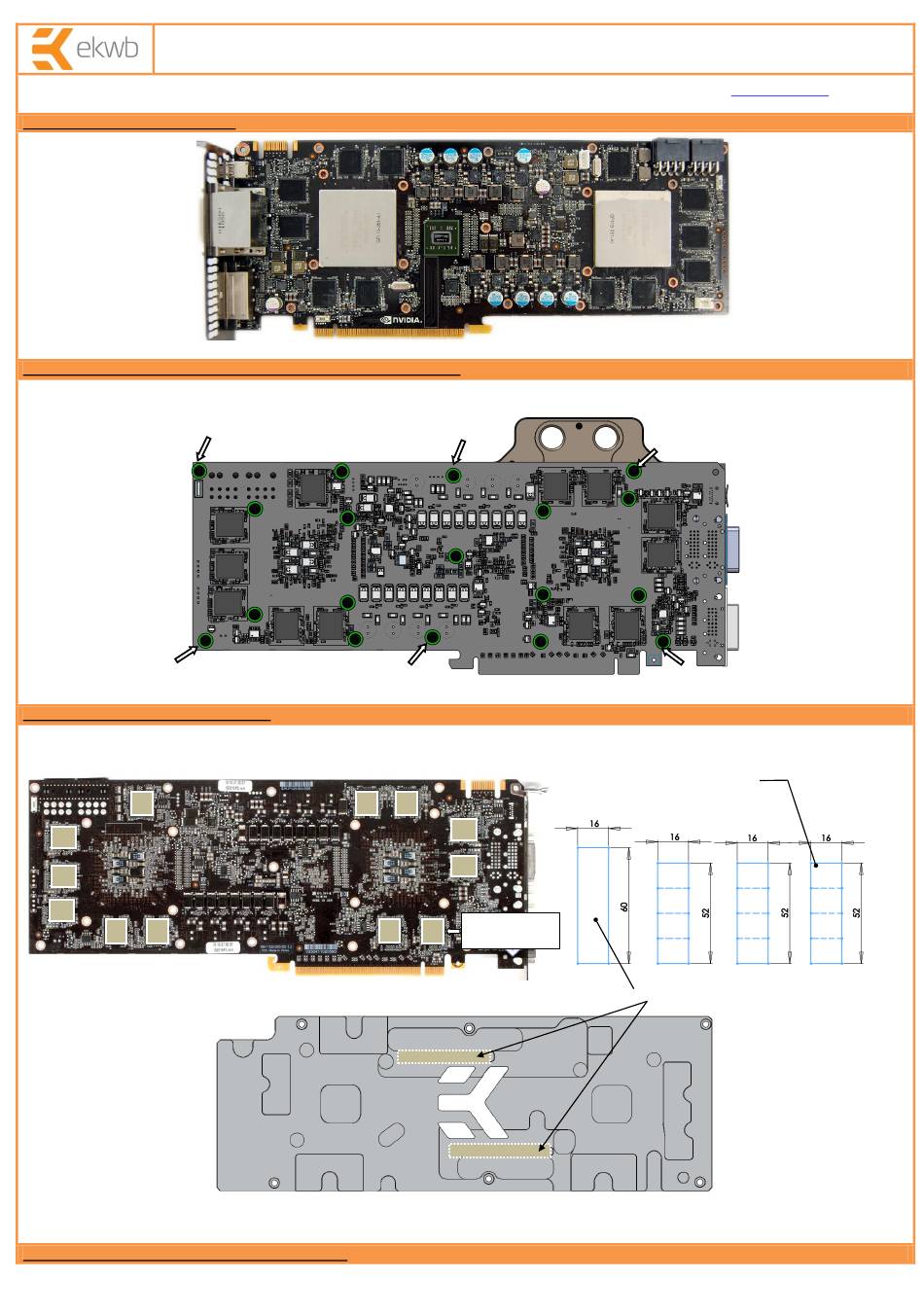

STEP 1: GENERAL INFORMATION. Sample picture of NVidia GeForce 590 GTX graphic card (reference design).
STEP 2: PREPARING YOUR GRAPHIC CARD NVIDIA GEFORCE 590 GTX
EK-FC590 GTX backplate is very easy to install. First install EK-FC590 GTX water block according to its manual. If you have it already installed,
please check below which mounting screws for water block are to be left in their position. Please remove the six screws marked with arrow.
STEP 3: APPLYING THE THERMAL PADS
EK-FC590GTX backplate features passive cooling of the printed circuit board and it's components therefore it is mandatory to install the enclosed
thermal pads. Please install the 0.5mm thick thermal pads on the memory ICs and on the two extruded stubs on the backplate itself.
1
1
1
1
1 1
STEP 3: ATTACHING EK-FC590 GTX BACKPLATE
All disclosures, notices and warranty conditions are being written on the back of the box.
Installation and mounting manual for EK-FC590 GTX backplate
1
1
1
1
1
Thickness 0.5mm (for
1
memory ICs)
www.ekwaterblocks.com
Thickness 0.5mm (for memory ICs)
1
1
1
1
2
1
1
1
1
Thickness 0.5mm
(for VRM)
Released on 4
for updates. Before
1
1
1
1
th
of April, 2011.
