ekwb EK-FC560 GTX Installation And Mounting Manual

This product is intended for installation only by expert users. Please consult with a qualified technician for installation. Improper installation may result in damage to your equipment. EK Water Blocks assumes no liability
whatsoever, expressed or implied, for the use of these products, nor their installation. The following instructions are subject to change without notice. Please visit our web site at
Before installation of this product please read important notice, disclosure and warranty conditions printed on the back of the box.
The barb hose fittings require only a small amount of force to screw them in; otherwise the high flow fittings might break. These fittings do not need to be tightened with much force because the
liquid seal is made using o-rings. The use of an algaecide and corrosion inhibitors is always recommended for any liquid cooling system.

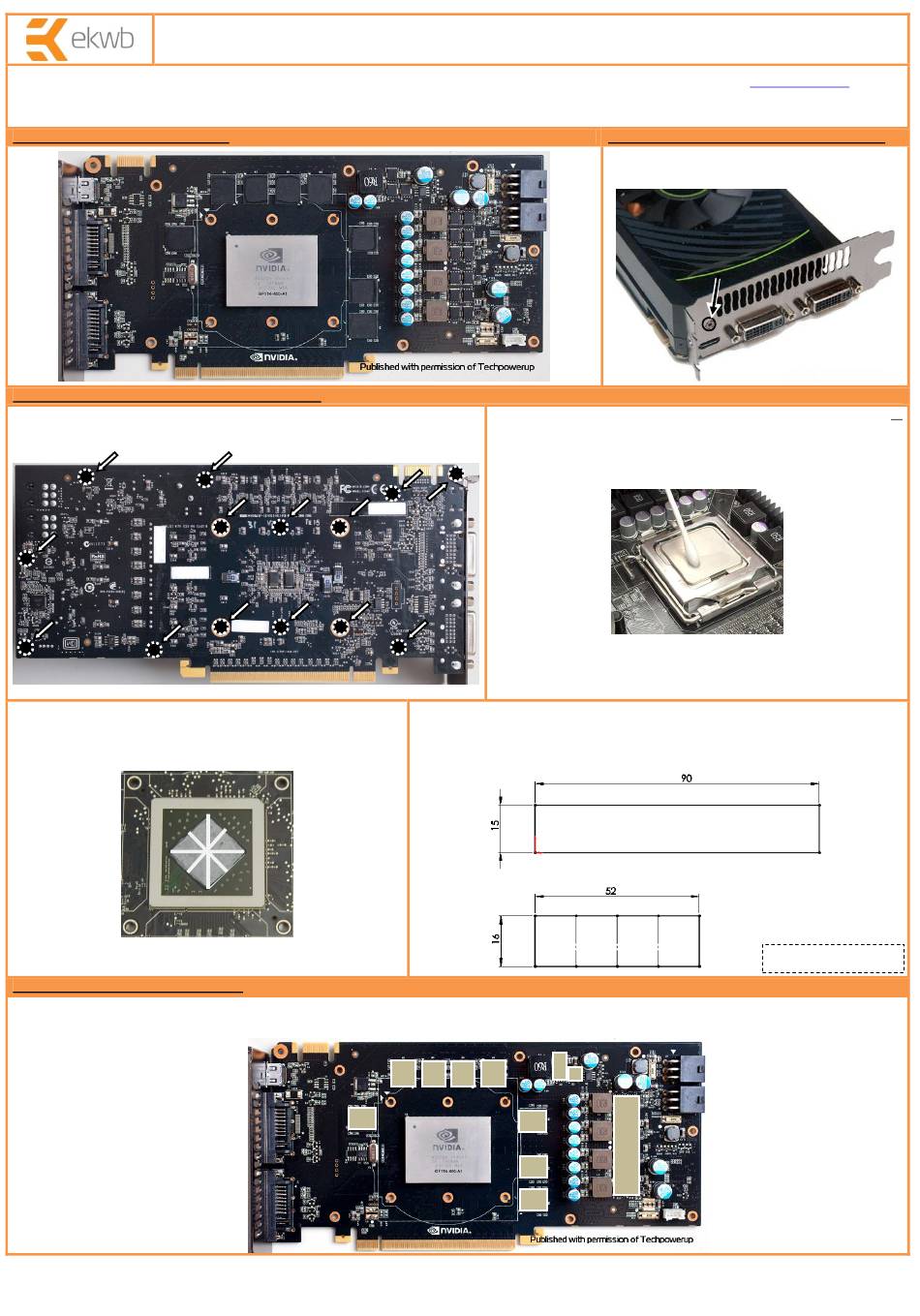

STEP 1: GENERAL INFORMATION. Sample picture of Nvidia 560 GTX Ti graphics card
STEP 2 cont.: PREPARING YOUR GRAPHIC CARD
1 cont.. REMOVING STOCK COOLER.
screws and backplate should be removed. There are 14 screws on the back of the graphics
card.
3. APPLYING THERMAL COMPOUND.
coat the GPU with for example Arctic Cooling MX-2 ™ or MX-4 ™ thermal
grease. EKWB recommends to apply thermal grease in cross form for best
performance (see sample picture).
STEP 3: INSTALLING WATER BLOCK
PLACING THERMAL PADS ON PCB. Place thermal pads on chips so that numbers on chips match size of thermal pads. EKWB made sure users have more than enough pads to
cover all surfaces that need to be covered to make block fully functional). It is advised to use small drops of electrically non-conductive thermal grease on chips to make thermal
pads more adhesive and also to improve heat transfer.
All disclosures, notices and warranty conditions are being written on the back of the box.
Installation and mounting manual for EK-FC560 GTX water block
Remove all encircled screws. All heat sink assembly
Apply thermal compound: lightly
1
2. CLEANING THE PCB. Carefully detach the original heat sink after removing all
fasteners securing it to the board and bracket. Wipe off the remains (by using
non–abrasive cloth or Q-tip, as shown on sample photo) of the original thermal
compound until the components and circuit board are completely clean. EKWB
does not recommend using any liquids for removing paste.
. CUTTING THERMAL PADS.
4
already be pre-cut. Others have to be cut to smaller chunks in order to cover all the VRM
components and PCIE lane splitter chip (PLEASE REMOVE FOIL ON BOTH SIDES OF THERMAL
PADS PRIOR TO INSTALLATION. WARNING: DIMENSION BELLOW ARE SCALED).
1
1
1 1 1
2
2
1
1
1
1
www.ekwaterblocks.com
STEP 2: PREPARING YOUR GRAPHIC CARD.
1. REMOVING STOCK COOLER: Remove encircled screw
on the I/O bracket:
Your block comes with thermal pads, some of which may
2
1
1 1
2
Released on 18
for updates.
All pads are 1mm thick.
th
of April, 2011.
