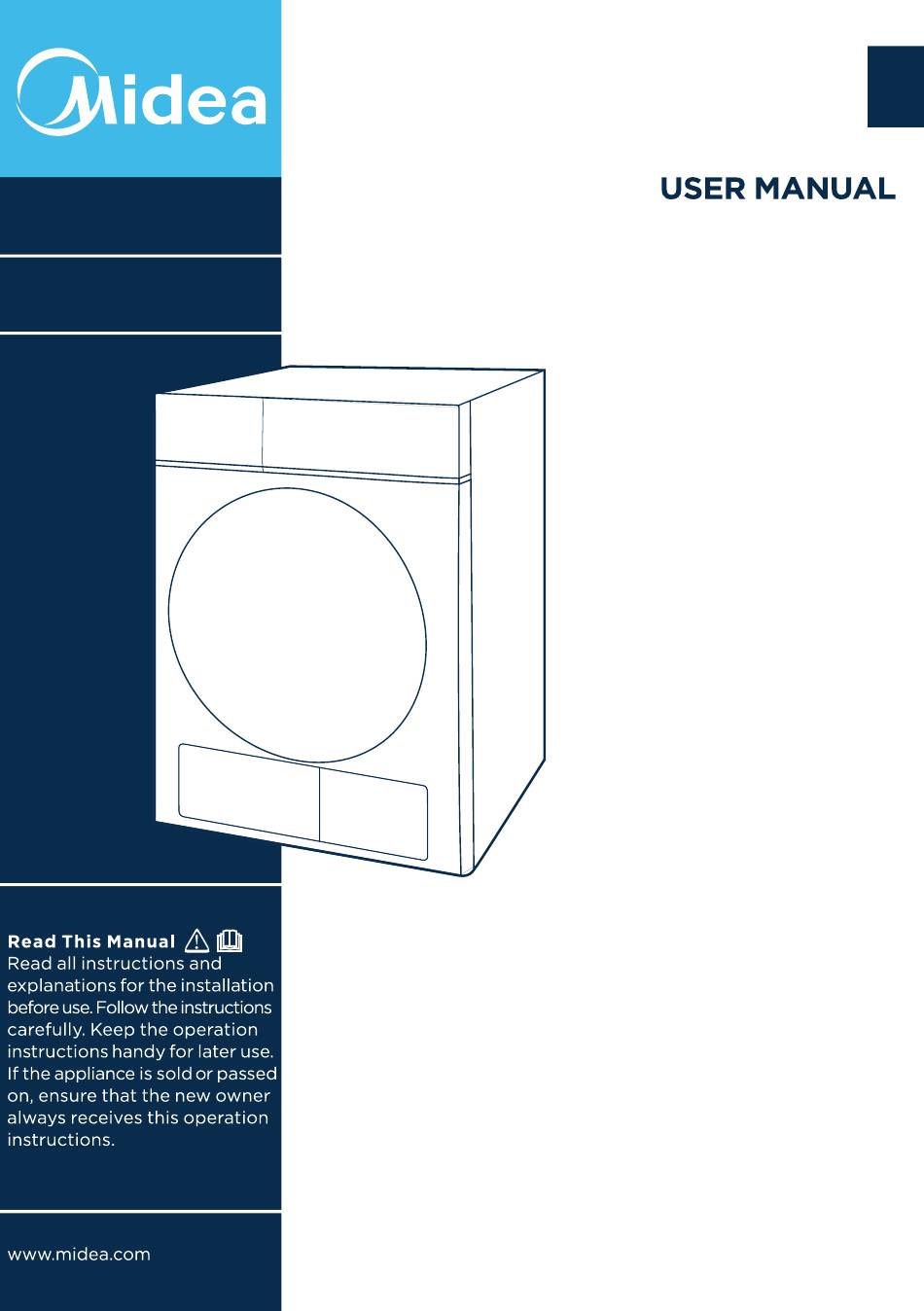

TUMBLE DRYER
Dryer
Read all instructions and explanations for
the installation before use. Follow the
instructions carefully. Keep the operation
instructions handy for later use. If the
appliance is sold or passed on, ensure
that the new owner always receives this operation instructions.
delete installation before use. Follow the
instructions carefully. Keep the operation
instructions handy for later use. If the
product is sold or passed on then ensure
that the new owner always receives this
manual.
MODEL:
MDS70-VR072/A04-AU

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MDS70-VR072/A04-AU and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Midea MDS70-VR072/A04-AU

Summary of Contents for Midea MDS70-VR072/A04-AU

  • Page 1 Follow the instructions carefully. Keep the operation instructions handy for later use. If the product is sold or passed on then ensure that the new owner always receives this manual. MODEL: MDS70-VR072/A04-AU...

  • Page 2: Table Of Contents

    CONTENTS SAFETY INSTRUCTIONS Safety Instructions ..........INSTALLATION Product Description ..........Installation ............OPERATION Quick Start ............. Before each Drying ..........Control Panel ............Drying Programmes Table ........MAINTENANCE Cleaning and Care ..........Trouble Shooting ............ Technical Specification........... Explanation of symbols Warning;Risk of fire / Flammable materials Read operator’s manual...

  • Page 3: Safety Instructions

    SAFETY INSTRUCTIONS Safety Instructions • The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  • Page 4 SAFETY INSTRUCTIONS • Items such as foam rubber (latex form), shower caps, waterproof textiles, rubber backed articles and clothes or pillows fitted with foam rubber pads should not be dried in the tumble dryer. • Fabric softeners, or similar products, should be used as specified by the fabric softener instructions.
  • Page 5 To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling. Rated capacity Model 7.0kg MDS70-VR072/A04-AU...
  • Page 6 SAFETY INSTRUCTIONS • Power supply and grounding • The dryer employs alternating current with the rated voltage and frequency. When the voltage fluctuates between 6% of rated voltage, the dryer can work normally. • A special power socket with a capacity 10A for the dryer had better be set beside the ≥...
  • Page 7 SAFETY INSTRUCTIONS • Precautions Install or store where it will not be exposed Keep area around the exhaust opening and to temperatures below freezing or exposed adjacent surrounding areas free from the to water or weather, which could cause accumulation of lint, dust and dirt. An permanent damage and invalidate the obstructed port might reduce the airflow.
  • Page 8 SAFETY INSTRUCTIONS Do not allow children on or in the appliance. Do not use the machine when your hands are Close supervision of children is necessary wet. when the appliance is used near children. The exhaust air must not be discharged into Do not store plastic, paper or clothing that a flue which is used for exhausting fumes may burn or melt on top of the dryer during...

  • Page 9: Installation

    INSTALLATION Product Description Top board Side panel Control panel Drum Door lock Power plug Door Lint filter Exhaust duct Front panel Note: Please see the products you purchased in kind prevail. Installation >10cm Installation Position Selection • Dryer should be placed in a ventilated area with not less than 10cm distance from the wall.
  • Page 10 INSTALLATION Level Adjusting • Once in its permanent operating position, check that the dryer is absolutely level with the aid of a spirit level. If it is not, adjust the feet with a tool. Note! If the dryer is not placed horizontally (tilt angle more than 2°), the dryer may not work properly.

  • Page 11: Operation

    OPERATION Quick Start Note! Before use, please make sure the tumble dryer is installed properly. Before Drying plug in load close the door Drying Turn the knob to start select the program After Drying Buzzer beep. unload clean filter unplug...

  • Page 12: Before Each Drying

    OPERATION Before each Drying 1.Before drying, thoroughly spin the laundry in a washing machine. High spin speed can reduce the drying time and save energy consumption. 2.For uniform drying result, sort the laundry according to fabric type and drying programme. 3.Before drying, please close zips, hooks and eyelets, button up, tie fabric belts, etc.

  • Page 13: Control Panel

    OPERATION Control Panel Programmes On/Off Turn to select any dry cycle to turn on Different Dryer cycle can be selected according to the user's needs to make the your dryer. clothes have more effective drying results. Start/Pause Press the button to start or pause the drying cycle.

  • Page 14: Drying Programmes Table

    OPERATION Drying Programmes Table Weight (max) Programme Application/Properties 7.0kg 5.0kg AUTO To dry unknown material clothes automatically. 7.0kg Cotton To dry cotton pieces of clothing. Drying level: standard dry. 7.0kg Cotton Extra To dry cotton pieces of clothing. Drying level: extra. Cotton Less 7.0kg To dry cotton pieces of clothing.
  • Page 15 OPERATION Note! • The programmes above are only recommended for using, users can choose the appropriate programme according to the personal habits. • The room temperature and humidity will affect the drying time. • Check the clothes care label and choose the corresponding programme accordingly. •...

  • Page 16: Maintenance

    MAINTENANCE Cleaning and Care Filter clean • Clean the lint filter after each use. Remove the filter by pulling it straight up. • Filter cleaning Use a wiping cloth or your hands to remove lint. • Install filter If the filter is cleaned by damp cloth or water, please dry thoroughly before installation.
  • Page 17 MAINTENANCE Safety reset 1. This dryer has a safety cut out switch which is activated by temperature. 2. If your dryer is not heating this button must be reset, before the dryer can heat again. You may need to wait 10 minutes for cooling down. The safety reset button is on the backboard.

  • Page 18: Trouble Shooting

    MAINTENANCE Trouble Shooting Problem Cause Solution • Power cut off. • Wait for restore of electricity. • The power plug is not • Check the power socket,make sure the plug Dryer does plugged tight. is inserted tightly. • The dryer is overloaded. •...

  • Page 19: Technical Specification

    Please contact your local 2: PCB failure service center if the problem occurs. The light flashes 4 times PCB fault and turn off 5 seconds Technical Specification Model MDS70-VR072/A04-AU Dimension 555*595*840(mm) (L*W*H) Rated input power 2000W Rated voltage 220-240V~ Rated frequency...
  • Page 20 V1.0 16138200A13589...
