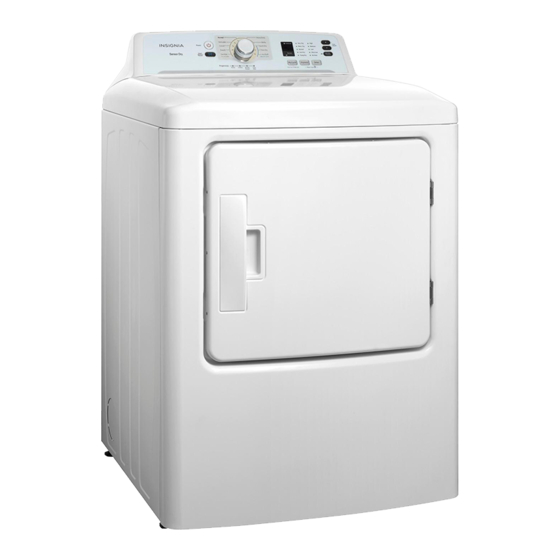

- Page 1 Website: www.midea.com/us Laundry DRYER MACHINE Service Manual Models: MDD160-V052/F01-US1305 MDD160-VG052/F01-US13 NS-FDRE67WH8A NS-FDRG67WH8A CAUTION READ THIS MANUAL CAREFULLY TO DIAGNOSE TROUBLES CORRECTLY BEFORE OFFERING SERVICE.
-
Page 2: Table Of Contents
Service manual for Dryer Machine Midea America Company CONTENTS 1. PRECAUTION .......................... 6 1.1 Safety precaution ............................ 6 1.2 Warning ..............................6 1.3 Caution ..............................8 2. HOW TO USE ........................... 9 2.1 Controls and function ..........................9 2.2 Cycle guide with option settings ......................11 3. - Page 3 Service manual for Dryer Machine Midea America Company WARNING: For your safety the information in this manual must be followed to minimize the risk of fire or explosion, or to prevent property damage, personal injury or death. –Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
- Page 4 Service manual for Dryer Machine Midea America Company WARNING This conversion kit shall be installed by a qualified service agency in accordance with the manufacturer’s instructions and all applicable codes and requirements of the Authority Having Jurisdiction. The information in...
- Page 5 Service manual for Dryer Machine Midea America Company Temperature conversion: ℃ ℉ ℃ ℉ ℃ ℉ 64.4 62.6 60.8 57.2 55.4 53.6 51.8 102.2 100.4 48.2 98.6 46.4 96.8 44.6 42.8 93.2 91.4 39.2 89.6 37.4 87.8 35.6 33.8 84.2 zero 82.4...
-
Page 6: Precaution
Service manual for Dryer Machine Midea America Company 1. PRECAUTION 1.1 Safety precaution For your safety the information in this manual must be followed to minimize the risk of fire or explosion, or to prevent property damage, personal injury or death. - Page 7 Service manual for Dryer Machine Midea America Company Do not dry articles that have been To reduce the risk of fire due to previously cleaned in, washed in, soaked in, contaminated loads, the final part of a or spotted with gasoline, dry-cleaning...
-
Page 8: Caution
Residual oil on clothing can ignite Because of continuing product spontaneously. The potential for improvements, Midea America reserves the spontaneous combustion increases when right of change specifications without notice. items containing vegetable oil or cooking oil For complete details, see the Installation are exposed to heat. -
Page 9: How To Use
Service manual for Dryer Machine Midea America Company 2. HOW TO USE 2.1 Controls and function 1. Power button Press once to turn your dryer on. Press again to turn your dryer off. If the dryer is left on for more than10 minutes without any buttons being pressed, the unit will automatically turn OFF. - Page 10 Service manual for Dryer Machine Midea America Company Press the button to select the dryness level. Different dryness level will result in different drying time. For clothes to be ironed manually, a lower dryness level should be selected 10. Child lock Press the Dryness and Temp.
-
Page 11: Cycle Guide With Option Settings
Service manual for Dryer Machine Midea America Company 2.2 Cycle guide with option settings Wrinkle Time Default time Default time Cycle Fabric type Dryness Level Temp My Cycle Prevent adjust (Gas) (Elec.) Very Dry More Dry Cotton ● ● Normal... -
Page 12: Dimension And Installation
Service manual for Dryer Machine Midea America Company 3. DIMENSION AND INSTALLATION 3.1 Unit dimension The dryer should be located where there is enough space at the front for loading the dryer, and enough space behind for the exhaust system. -
Page 13: Installation
Service manual for Dryer Machine Midea America Company Alcove or closet installations The dryer must be exhausted to the outside to reduce the risk of fire when installed in an alcove or closet. No other fuel-burning appliance should be installed in the same closet as the dryer. - Page 14 Service manual for Dryer Machine Midea America Company drafts and entry of wildlife. Never use an exhaust hood with a magnetic damper. 12. The hood should have at least 12 inches (30.5cm) of clearance between the bottom of the hood and the ground or other obstruction. The hood opening should point down.
- Page 15 Service manual for Dryer Machine Midea America Company The dryer is not suitable for installation in a mobile home. Remove the door from all discarded appliances to avoid the danger of a child being trapped and suffocating. Exhausting The dryer shall not be exhausted into a chimney, a wall, a ceiling, an attic, a crawl space, or a concealed space of a building.
- Page 16 Service manual for Dryer Machine Midea America Company Gas dryers installed in residential garages must be raised 18" (46cm) above the floor. Additionally, a 1/8" (0.3cm) N.P.T. (National Pipe Thread) plugged tapping, accessible for test gauge connection, must be installed immediately upstream of your dryer’s gas supply connection.
- Page 17 Service manual for Dryer Machine Midea America Company terminals, open-end spade lugs with turned up ends, or with tinned leads. Do not reuse a power supply cord from an old dryer. The power cord electric supply wiring must be retained at the dryer cabinet with a suitable UL-listed strain relief.
- Page 18 Service manual for Dryer Machine Midea America Company C. Green or bare copper wire of the power cord D. Neutral grounding wire (White) E. Neutral wire (white or center wire) F. 3/4" (1.9cm) UL-listed strain relief Gas models Your dryer has a cord with an equipment-grounding conductor and a grounding plug.
- Page 19 Service manual for Dryer Machine Midea America Company All gas installations must be done in accordance with the National Fuel Code ANSI/Z2231 - Latest Revision (for the U.S.) or CAN/CGA - B149 Installation Codes - Latest Revision (for Canada) and local codes and ordinances.
- Page 20 Service manual for Dryer Machine Midea America Company Dryer Wall Make sure your Use a 4 inch. (10.2cm) Tape Duct dryer is installed diameter rigid metal 4" exhaust properly so it duct. Tape all joints, exhausts air including at the dryer.
- Page 21 Service manual for Dryer Machine Midea America Company Check all gas connections for leaks using a soap solution. If bubbles appear, tighten the connections and recheck. DO NOT use an open flame to check for gas leaks. 7. Using a level, check your dryer and make the necessary adjustments to the leveling legs.
-
Page 22: Trouble Shooting
Service manual for Dryer Machine Midea America Company 4. TROUBLE SHOOTING 4.1 Test mode by Control Make sure the door are closed, press [Time Adjust+] and [Wrinkle Prevent] at the same time within 3s after plug in, then unit will go into test mode, scree will show St. -
Page 23: Error Codes
Service manual for Dryer Machine Midea America Company 4.3 Error codes Fault When Action After Fault Category Description Debounce Class Criteria Code Checked Debounced Will run current cycle Sensor Humidity Control will run whole without fault, log this Error cycle with cycle default setting, and don’t need... -
Page 24: Wiring Diagram And Terminals
Service manual for Dryer Machine Midea America Company 4.4 Wiring diagram and terminals ELECTRIC MODEL GAS MODEL ① DOOR SWITCH ① DOOR SWITCH ② L1 ② L ③ / ③ / ④ N ④ N ① LAMP ① LAMP ② / ②... - Page 25 Service manual for Dryer Machine Midea America Company ELECTRIC MODEL: GAS MODEL: ------------------------------------------------------------------------------------------------------------------------------------------------------- － 25 －...
-
Page 26: Trouble Shooting
Service manual for Dryer Machine Midea America Company 4.5 Trouble shooting Problem What To Do ● All wires are hooked up to their corresponding terminals. ● Dryer is plugged in. ● Blown fuse or circuit breaker. ● Door switch functional…door closed. - Page 27 Service manual for Dryer Machine Midea America Company If the igniter does not heat up, remove power and using an ohmmeter, check the following: ● Open flame switch. ● Open igniter. The igniter does ● Shorted booster coil. not glow ●...
- Page 28 Service manual for Dryer Machine Midea America Company COMPONENT TESTING DOOR SWITCH PROCEDURES THERMISTOR THERMOSTAT 1 250V 16A 70/50℃, 25A ● Measure resistance of the following terminal HI-limit ● Thermostat 1 resistance < 1Ω (Electronic & (Electronic & GAS) (1) Door switch: open GAS) Terminal: “COM”...
- Page 29 Service manual for Dryer Machine Midea America Company GAS MODELS ONLY THERMOSTAT 1 FLAME SENSOR 10RS 120V ● Flame sensor resistance < 1Ω 230/160F 25A (60T21) Hi-Limit - If resistance is infinity, replace Flame sensor. ● Thermostat 1 resistance < 1Ω...
-
Page 30: How To Disassembly The Unit
Service manual for Dryer Machine Midea America Company 5. HOW TO DISASSEMBLY THE UNIT Caution Disconnect the electrical power. Turn off the gas supply. 1. Remove the control panel 1.1 Remove the screws that is used to fix the control panel with a screwdrive;... - Page 31 Service manual for Dryer Machine Midea America Company 4. Remove the back cover 4.1 Remove the screws that is used to fix power line; 4.2 Pull out the terminals; 4.3 Remove the screws on the back cover; 4.4 Take down the back cover;...
- Page 32 Service manual for Dryer Machine Midea America Company 6. Remove the heater assy 6.1 Pull out all the terminals; 6.2 Remove the screw that is used to fix the heater assy; 6.3 Take down the heater assy; 6.4 Remove the thermostat;...
- Page 33 Service manual for Dryer Machine Midea America Company Install the conversion kit: This kit is acceptable for: MDD160-VG052/F01-US13 This kit comprises one nozzle( Orifice Size：1.2mm) and one valve cover. This kit is used for LP GAS（Propane）. 7(a). Change the thermostats...
- Page 34 Service manual for Dryer Machine Midea America Company 7(e). Change the burner (Gas model only) 7(f). Change the gas valve (Gas model only) 7(g). Change the orifice for LP (Gas model only) 7(g).1 Remove the 2 screws fixing the burner 7(g).2 Remove the burner...
- Page 35 Service manual for Dryer Machine Midea America Company NOTE: Before proceeding, you Orifice must first determine Regulator which gas valve style is Vent cap on the unit. If the gas dryers has style “A”, follow step STYLE”A” 7(h) .For style “B” follow step 7(i).
- Page 36 Service manual for Dryer Machine Midea America Company STYLE B GAS VALVE ① ② CONVERSION 7(i).1 Disconnect the 2 connectors from the valve. 7(i).2 Position a pair of long nose pliers into the slots of the cover dial. Rotate cover dial 25 degrees counter clockwise lining up ”LPG”...
- Page 37 Service manual for Dryer Machine Midea America Company 9. Remove the Door Hinge 10. Remove the Door seal 11. Deleave the Door assy 11.1 Remove all 12 screws around the door. 11.2 Depart the door front and back. 12. Remove the handle Take care the slots fixing the handle.
- Page 38 Service manual for Dryer Machine Midea America Company 14. Remove the Door Hook 15. Remove the Front Cover 15.1 Remove the screws that is used to fix the Front Cover; 15.2 Take down the Front Cover; 15.3 Pull out the terminals connecting to the Front Cover;...
- Page 39 Service manual for Dryer Machine Midea America Company 18. Remove the screws as shown on the fig. 19. Remove the air flow channel assy. 20. Remove the temperature sensor ------------------------------------------------------------------------------------------------------------------------------------------------------- － 39 －...
- Page 40 Service manual for Dryer Machine Midea America Company 21. Remove the temperature switch 22. Remove the belt switch. 23. Remove the idle wheel. ------------------------------------------------------------------------------------------------------------------------------------------------------- － 40 －...
- Page 41 Service manual for Dryer Machine Midea America Company 24. Remove the motor and fan assy. 25. Remove the fan 25.1 Disconnect all hooks fixing the fan cover. 25.2 Remove the nut fixing the fan. ------------------------------------------------------------------------------------------------------------------------------------------------------- － 41 －...
- Page 42 Service manual for Dryer Machine Midea America Company 26. Remove the motor. 27. Remove the wheels supporting the drum. ------------------------------------------------------------------------------------------------------------------------------------------------------- － 42 －...
-
Page 43: Exploded View
Service manual for Dryer Machine Midea America Company 6. EXPLODED VIEW ELECTRIC MODEL ------------------------------------------------------------------------------------------------------------------------------------------------------- － 43 －... - Page 44 Service manual for Dryer Machine Midea America Company GAS MODEL ------------------------------------------------------------------------------------------------------------------------------------------------------- － 44 －...
-
Page 45: Spare Parts
Service manual for Dryer Machine Midea America Company 7. SPARE PARTS ELECTRIC MODEL Part Name Quantity Door Handle Door Cover Door Cover Back Door Gasket Door Hinge Assembly Fixed Seat Front Panel Cover Switch Front Panel Cover (2) Door Pin... - Page 46 Service manual for Dryer Machine Midea America Company Front Panel Pin Adjustable Foot Assembly（Rear） Side Plate Rear Vent Pipe Assembly Belt 14.1 Felt 14.2 Lifter 14.3 Basket Assembly 14.4 Felt 14.5 Heating Wind Cover Assembly 14.6 Bearing House Assembly 14.7...
- Page 47 Service manual for Dryer Machine Midea America Company GAS MODEL Part Name Quantity Door Handle Door Support Door Cover Door Cover Back Door Gasket Door Hinge Assembly Fixed Seat Front Panel Cover Switch Front Panel Cover (2) Door Pin Front Panel Cover (1)
- Page 48 Service manual for Dryer Machine Midea America Company Auto Thermostat Limiter Thermostat Support Burner Ignitor Support Gas Valve Assembly Internal Wire Assembly 8.10 Heater Support 8.11 Flame Switch Front Panel Pin Adjustable Foot Assembly（Back） Side Plate Rear Vent Pipe Assembly Belt 14.1...
-
Page 49: Specification
Service manual for Dryer Machine Midea America Company 8. SPECIFICATION Model No. MDD160-V052/F01-US1305 MDD160-VG052/F01-US13 ERP No. 22038210000579 22038210000639 Picture Heater Type Electric Power Supply 120/240V/60Hz 120V/60hz Capacity (Cuft) CEF (lb/kWh/cycle) 3.73 Energy Star, 2015 Certification, safety Watts (Heater) 4800W 16000BTU/h... - Page 50 Service manual for Dryer Machine Midea America Company Exhaust Options 3-Way (Rear; Left & Bottom) 3-Way (Rear; Left & Bottom) Special feature child lock Door switch error alarm auto-power off Dimensions & loading Width, body, Inch Depth, body, Inch 30 1/16...
