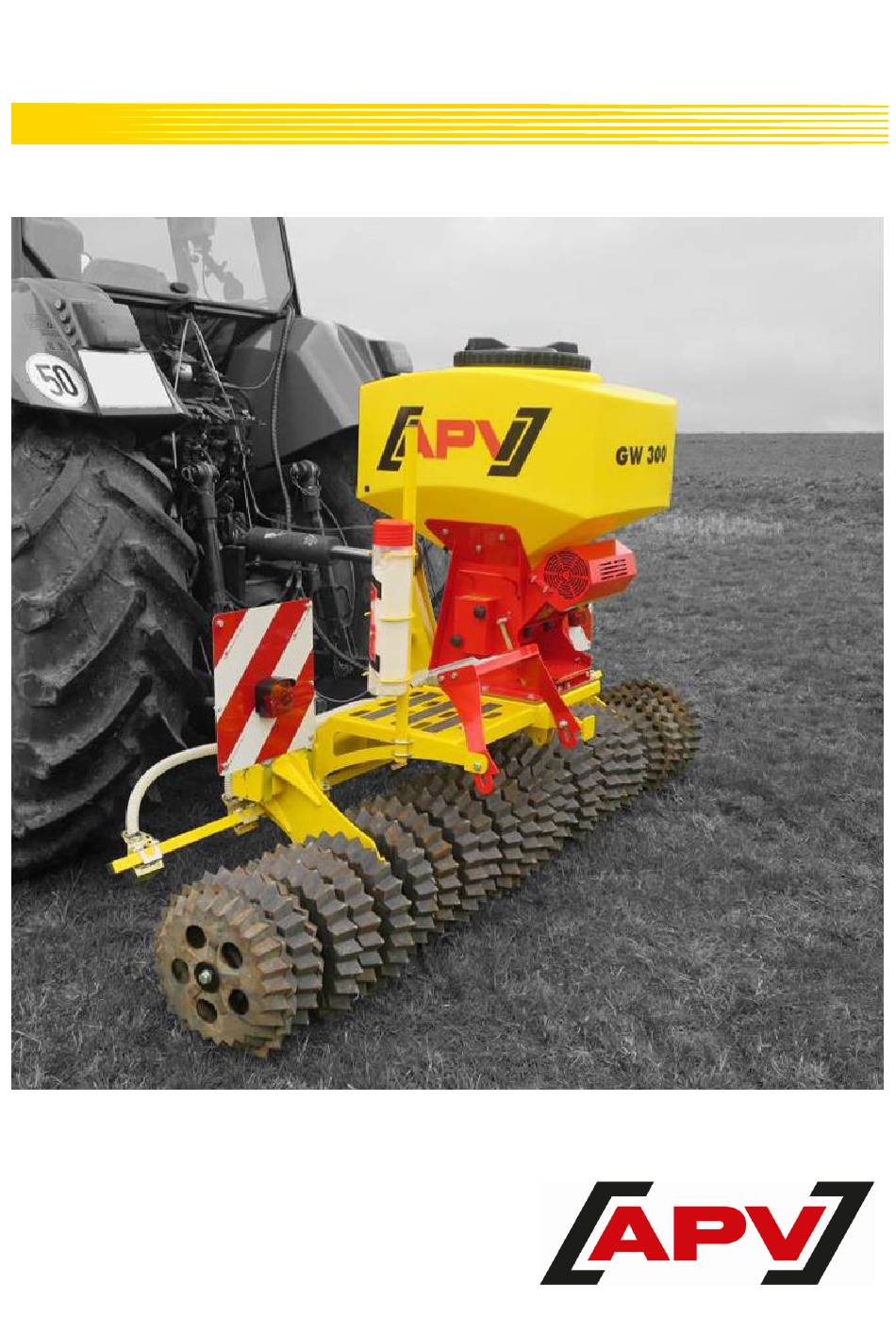

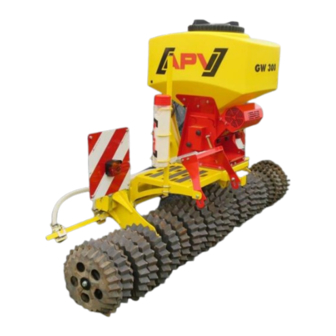

GRASSLAND ROLLER
GW 250 M1, GW 300 M1, GW 400 M1
OPERATING MANUAL
PLEASE READ CAREFULLY BEFORE INITIAL OPERATION!
Version: 2.0 EN; item number: 00602-3-732
Translation of the original operating instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GW 400 M1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for APV GW 400 M1

Summary of Contents for APV GW 400 M1

  • Page 1 GRASSLAND ROLLER GW 250 M1, GW 300 M1, GW 400 M1 OPERATING MANUAL PLEASE READ CAREFULLY BEFORE INITIAL OPERATION! Version: 2.0 EN; item number: 00602-3-732 Translation of the original operating instructions...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS EC DECLARATION OF CONFORMITY ..................4 UK CONFORMITY ASSESSED ...................... 5 IDENTIFICATION OF THE IMPLEMENT ..................6 SERVICE ............................6 WARRANTY ........................... 6 Warranty activation ......................7 SAFETY INSTRUCTIONS ......................7 Intended use ........................7 General safety-related instructions and accident prevention regulations ......8 Mounted implements ......................
  • Page 3 16.4 Mounting kit for Pneumatic Seeder ..................19 16.5 Multi-Metering System mounting kit ................... 20 SPARE PARTS ..........................20 INDEX ............................20...

  • Page 4: Ec Declaration Of Conformity

    Serial number(s): as of 06017-01000 (GW 300 M1) Serial number(s): as of 06018-01000 (GW 300 M1) Serial number(s): as of 06019-01000 (GW 300 M1) Serial number(s): as of 06030-01000 (GW 400 M1) Applied relevant EC Directives: Machinery Directive 2006/42/EC For the planning, design, construction and marketing of the mounted implement, the following harmonised European standards were applied in addition to the Directives, in particular: EN ISO 12100:2010 –...

  • Page 5: Conformity Assessed

    Serial number(s): as of 06017-01000 (GW 300 M1) Serial number(s): as of 06018-01000 (GW 300 M1) Serial number(s): as of 06019-01000 (GW 300 M1) Serial number(s): as of 06030-01000 (GW 400 M1) Applied relevant EC Directives: Machinery Directive 2006/42/EC For the planning, design, construction and marketing of the mounted implement, the following harmonised European standards were applied in addition to the Directives, in particular: EN ISO 12100:2010 –...

  • Page 6: Identification Of The Implement

    If you still have questions regarding the handling of this implement despite the information provided in this operating manual  For questions regarding spare parts  To order maintenance and repair work Service address: APV - Technische Produkte GmbH Telephone: +43 2913 8001-5500 Zentrale: Dallein 15 Fax: +43 2913 8002 A-3753 Hötzelsdorf Email: service@apv.at AUSTRIA Web: www.apv.at...

  • Page 7: Warranty Activation

    WARRANTY ACTIVATION Every APV implement must be registered immediately after delivery. The registration activates the claim for warranty services and APV can guarantee the best service. To activate the warranty for your implement, simply scan the QR code with your smartphone - you will then be taken directly to the service area on our website.

  • Page 8: General Safety-Related Instructions And Accident Prevention Regulations

    GENERAL SAFETY-RELATED INSTRUCTIONS AND ACCIDENT PREVENTION REGULATIONS  The operator has read and understood this operating manual before handling the implement.  The operator must train and instruct their personnel. The personnel must have read and understood this operating manual before handling the implement. ...

  • Page 9: Mounted Implements

     Danger after lifting due to centrifugal mass that is still rotating! Only approach the implement when it has come to a standstill!  Before exiting the tractor, lower the implement onto the ground, switch off the motor and remove the ignition key! ...

  • Page 10: Mounted Seeders

    It is strictly forbidden to stand on the platform or its access ladder while driving.  When not in use, the ladder must be folded up and secured.  An ascent must be established conforming to the standards. This ascent is available from APV. 6.5.1 FILLING THE SEEDER ...

  • Page 11: Information Signs / Hazard Labels

    INFORMATION SIGNS / HAZARD LABELS Pay special attention to these stickers on the implement, as they warn you of specific dangers! INFORMATION SIGNS Loading hooks. When loading the implement, attach the ropes or chains to Read and observe the Do not stand on the After a short period of these points! operating manual...

  • Page 12: Operating Manual

    OPERATING MANUAL MOUNTING ON THE TRACTOR  The air pressure in the rear tractor tyres should be 0.8 bar during operation.  Under difficult operating conditions, additional wheel weights can be useful. Please also refer to the operating manual from the tractor manufacturer. ...

  • Page 13: Layout Of The Implement

    LAYOUT OF THE IMPLEMENT 1: Three-point linkage (CAT 2 lower link) 2: Dispersion plate installation (accessories) 3: Lighting incl. warning signs (accessories) 4: Platform kit (accessories) 5: PS/MD mounting kit (accessories) 6: Cambridge (530 or 390) or Toothed Ring Roller Figure 6 SETTINGS AND WORKING WITH THE IMPLEMENT Before beginning operation, the following must be performed:...

  • Page 14: Regular Maintenance Instructions

    TECHNICAL DATA Type designation: GW 250 M1 GW 300 M1 GW 400 M1 Function: Fine crumbling of clods, reconsolidation, and pressing Mode of operation: down of the seeds Working width: 2.40 m...

  • Page 15: Road Transport

    Type designation: GW 250 M1 GW 300 M1 GW 400 M1   Meadow Harrow Meadow harrow  Meadow Harrow WS 300 WS 400 WS 250   Pneumatic Pneumatic  Pneumatic seeder PS 120- seeder PS 120- seeder PS 120-...
  • Page 16 Specifications: Tractor net weight Front axle load of the empty tractor Rear axle load of the empty tractor Total weight of the rear-mounted implement Total weight of the front-mounted implement Distance from the centre of gravity of the front-mounted implement to the centre of the front axle Wheelbase of the tractor Distance from the centre of the rear axle to the centre of Figure 7...

  • Page 17: Lighting Circuit Diagram

    12.3.1 TABLE FOR THE WEIGHT RATIOS Double the Permissible value Actual value permissible tyre acc. to operating acc. to calculation load capacity manual (2 tyres) Minimum ballast front/rear kg ≤ kg ≤ Total weight kg ≤ kg ≤ Front axle load kg ≤...

  • Page 18: Decommissioning, Storage And Disposal

    DECOMMISSIONING, STORAGE AND DISPOSAL 14.1 DECOMMISSIONING THE IMPLEMENT To ensure that the implement remains fully functional, even if it is out of operation for longer periods of time, it is important to take precautions for storage: To do so, observe Point 14.2. 14.2 STORAGE OF THE IMPLEMENT ...

  • Page 19: Accessories

    The optimal forward speed and the adjustment of the seeding rate must be set with your understanding of the correlations between the soil properties and weather conditions, which can vary greatly in different regions. ACCESSORIES 16.1 WARNING SIGNS AND LED LIGHTING Is required when the implement is transported on public roads.
  • Page 20 Please keep your product number / serial number at hand. You can also view our online spare parts catalogue on our website www.apv.at in the Service area. If you have any questions regarding spare parts or your order, our Customer Service (see point 4 for contact data) is also happy to assist you.
  • Page 21 NOTES...
  • Page 22 NOTES...
  • Page 23 NOTES...
  • Page 24 APV – Technische Produkte GmbH Zentrale: Dallein 15 AT - 3753 Hötzelsdorf Tel.: +43 2913 8001 office@apv.at www.apv.at...

This manual is also suitable for:

Gw 300 m1Gw 250 m1
