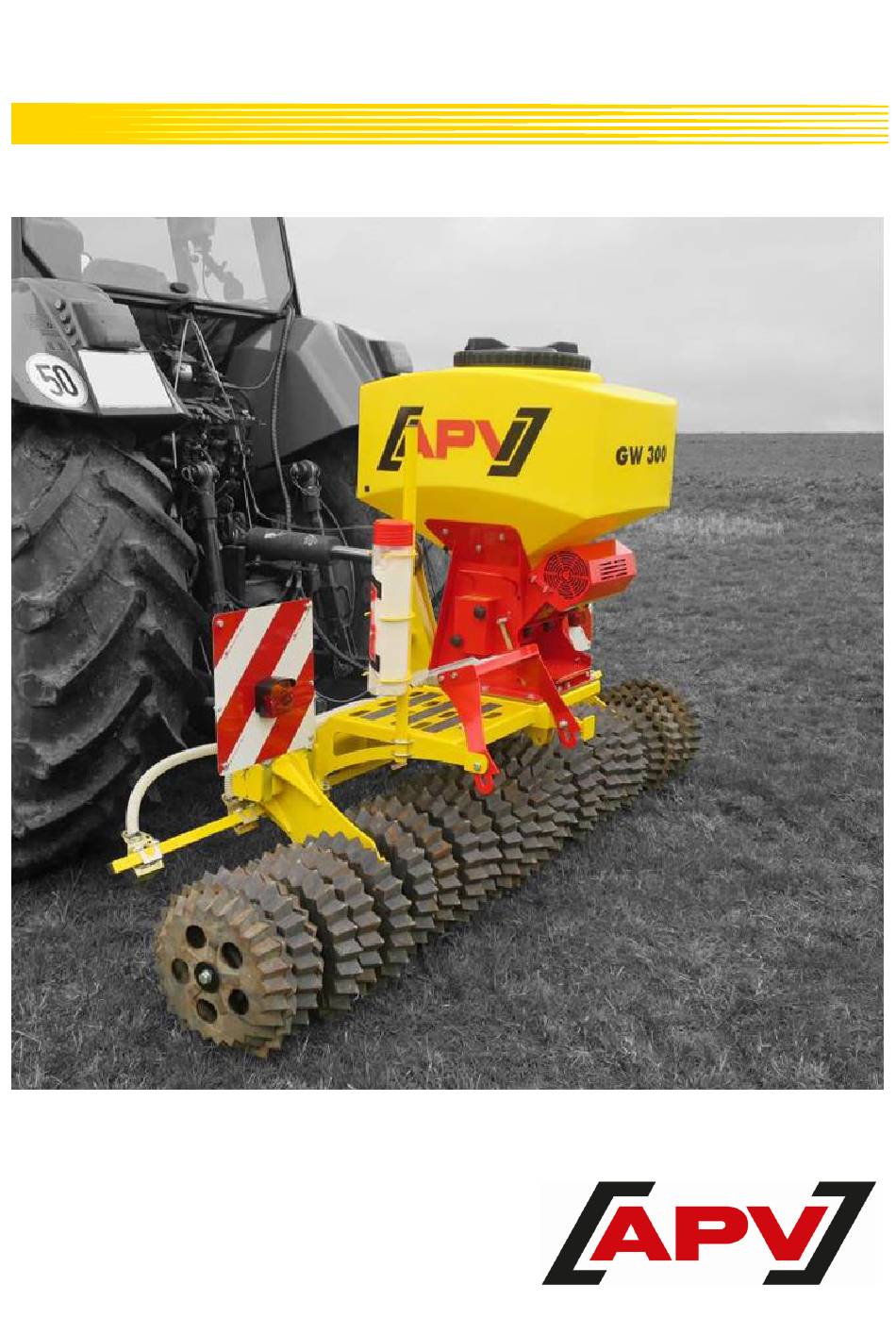

- Page 1 GRASSLAND ROLLER GW 250 M1, GW 300 M1 OPERATING MANUAL PLEASE READ CAREFULLY BEFORE INITIAL OPERATION! Version: 1.2 EN; item number: 00601-3-206 Translation of the original operating instructions...
-
Page 2: Table Of Contents
TABLE OF CONTENTS EC DECLARATION OF CONFORMITY ..................4 IDENTIFICATION OF THE IMPLEMENT ..................5 SERVICE ............................5 WARRANTY ........................... 5 Warranty activation ......................6 SAFETY INSTRUCTIONS ......................6 Intended use ........................6 General safety-related instructions and accident prevention regulations ......6 Mounted implements ...................... - Page 3 15.6 Sensor set - GPSa + linkage sensor top link ..............19 SPARE PARTS ..........................19 INDEX ............................20...
-
Page 4: Ec Declaration Of Conformity
GRASSLAND ROLLER GW 250 M1 GRASSLAND ROLLER GW 300 M1 Year of manufacture: as of 2020 Serial number(s): as of 06014-01000 (GW 250 M1) Serial number(s): as of 06015-01000 (GW 250 M1) Serial number(s): as of 06016-01000 (GW 250 M1) -
Page 5: Identification Of The Implement
For questions regarding spare parts To order maintenance and repair work Service address: APV - Technische Produkte GmbH Telephone: +43 (0) 2913 8001-5500 HEADQUARTERS Fax: +43 (0) 2913 8002 Dallein 15 Email: service@apv.at A-3753 Hötzelsdorf... -
Page 6: Warranty Activation
To activate the warranty for your implement, simply scan the QR code with your smartphone – you will then be taken directly to the warranty activation page. You can also call up the warranty activation page through our website www.apv.at in the Service area. SAFETY INSTRUCTIONS This chapter contains general rules of conduct for the intended use of the implement and safety- related information that should always be observed for your safety. - Page 7 Do not use the implement if you are tired or under the influence of drugs, alcohol or medication. Check the implement and the tractor for road and operational safety before every use (e.g. defective parts, connections, hoses, protective equipment, etc.)! ...
-
Page 8: Mounted Implements
Extreme caution must be taken when changing defective components or tools. Replacing components that cannot be removed with tools such as a screwdriver or wrench may only be replaced by specialist personnel from an appropriately authorised company or by APV Customer Service. -
Page 9: Mounted Seeders
It is strictly forbidden to stand on the platform or its access ladder while driving. When not in use, the ladder must be folded up and secured. An ascent must be established conforming to the standards. This ascent is available from APV. 5.5.1 FILLING THE SEEDER ... -
Page 10: Hazard Labels
Label for the recess for Labelling of the installing the 24-mm lubrication points. pins. HAZARD LABELS Do not climb onto rotating parts, use the intended access ladders! OPERATING MANUAL MOUNTING ON THE TRACTOR The air pressure in the rear tractor tyres should be 0.8 bar during operation. If the tyres have a lower load capacity, increase the pressure. -
Page 11: Implement Layout
Figure 2 Figure 3 Figure 4 Figure 5 When mounting on the front, an additional mounting kit is not required, since the roller is equipped with a CAT 2 three-point linkage. CAUTION! In a lowered state, driving in curves is not permitted! IMPLEMENT LAYOUT 1: Platform kit (accessories) 2: PS/MD mounting kit (accessories) -
Page 12: Settings And Working With The Implement
SETTINGS AND WORKING WITH THE IMPLEMENT Before beginning operation, the following must be performed: Check bolted connections for firm seating Relubricate the bearing Check the mechanical integrity of all components The recommended working speed is max. 8 km/h. On stony soils, a lower speed should be selected; otherwise, the roller rings can break. -
Page 13: Information On Nature Conservation And Environmental Protection
Many parts of the implement are made of steel or spring steel (such as the centre frame, roller ring, ...) and can be accepted and recycled by a waste disposal plant. TECHNICAL DATA Type designation: GW 250 M1 GW 300 M1 Mode of action: Fine crumbling of clods, reconsolidation and Mode of operation:... -
Page 14: Transport On Public Roads (Most Important Specifications)
11.2 TRANSPORT ON PUBLIC ROADS (MOST IMPORTANT SPECIFICATIONS) The axle load and the total weight of the towing vehicle may not be exceeded. The mounted implement must be identified with country-specific warning signs or stickers with red and white slanted lines (according to DIN, ÖNORM or the respective country-specific STANDARDS). - Page 15 Now enter the calculated actual front axle load and the permissible front axle load specified in the tractor operating manual in the table under Point 11.4. 4. Calculation of the actual total weight Gtat: If the required minimum rear ballast (GH) is not reached with the rear-mounted implement (GH min), the weight of the rear-mounted implement must be increased to the weight of the minimum rear ballast! Now enter the calculated total weight and the permissible total weight specified in the tractor...
-
Page 16: Lighting Circuit Diagram
LIGHTING CIRCUIT DIAGRAM Right Left 12 V plug, 7-pin Rear light, right Turn signal Rear light Brake light Rear light, left Brake light Rear light Turn signal Plug and cable assignment: Desig. Colour Function yellow Turn signal, left ---- White Earth Figure 8 Green... -
Page 17: Crop Cultivation Tips When Using The Grassland Roller
CROP CULTIVATION TIPS WHEN USING THE GRASSLAND ROLLER Seedbed preparation is always required before reseeding. With its thorough and effective mode of action, the GW 250/300 M1 can be optimally integrated in your overall management concept. The goal of your concept will be to improve yields and to increase the valuable grasses. Other effects of the GW 250/300 M1, like ... -
Page 18: Platform Kit
15.2 PLATFORM KIT To facilitate maintenance work on a mounted seeder. Please ensure that the platform kit is installed in compliance with the standards. Order number: 06008-2-009 Figure 10 15.3 DISPERSION PLATE INSTALLATION ACCESSORIES KIT Is required to be able to install the dispersion plates and to establish ideal conditions for uniform seeding. - Page 19 / serial number at hand. You can also view our online spare parts catalogue on our website www.apv.at the Service area. If you have any questions regarding spare parts or your order, our Customer Service (see point 3 for...
- Page 20 INDEX Accident prevention regulations ......6 operating manual ..........9 Bearing ............16 Plug and cable assignment ......16 Care ............... 12 Recyclable raw materials ........ 13 Cropping tips ..........17 Reduction of noise pollution ......13 Decommissioning ........... 16 Road transport ..........
- Page 21 NOTES...
- Page 22 NOTES...
- Page 23 NOTES...
- Page 24 APV – Technische Produkte GmbH HEADQUARTERS Dallein 15 AT - 3753 Hötzelsdorf Tel.: +43 2913 8001 Email: office@apv.at www.apv.at...
