Summary of Contents for hilscher CIFX M3042100BM-DN/F

  • Page 1 User manual CIFX M3042100BM-DN\F PC cards PCI Express M.2 3042 B-M DeviceNet Hilscher Gesellschaft für Systemautomation mbH www.hilscher.com DOC210402UM03EN | Revision 3 | English | 2023-06 | Released | Public...
  • Page 2: Table Of Contents

    Diagnosis with LEDs ...................... 25 Overview ........................ 25 System LED ........................ 25 DeviceNet Master...................... 26 DeviceNet Slave...................... 27 Connectors .......................... 28 DeviceNet interface...................... 28 CIFX M3042100BM-DN\F | Hardware description and installation © Hilscher 2021 -2023 DOC210402UM03EN | Revision 3 | English | 2023-06 | Released | Public...
  • Page 3 FCC compliance...................... 40 References........................ 41 Conventions in this manual .................... 43 Legal notes........................ 44 Registered trademarks.................... 48 Licenses ......................... 48 Glossary.......................... 51 Contacts.......................... 52 CIFX M3042100BM-DN\F | Hardware description and installation © Hilscher 2021 -2023 DOC210402UM03EN | Revision 3 | English | 2023-06 | Released | Public...
  • Page 4: Introduction

    Basic card CIFX M3042100BM RE of hardware revision 3 added. Section PCI Express M.2 bus [} page 30] updated (Pin 10: BOOT). Table 1: List of revisions CIFX M3042100BM-DN\F | Hardware description and installation © Hilscher 2021 -2023 DOC210402UM03EN | Revision 3 | English | 2023-06 | Released | Public...
  • Page 5: Devices And Accessories

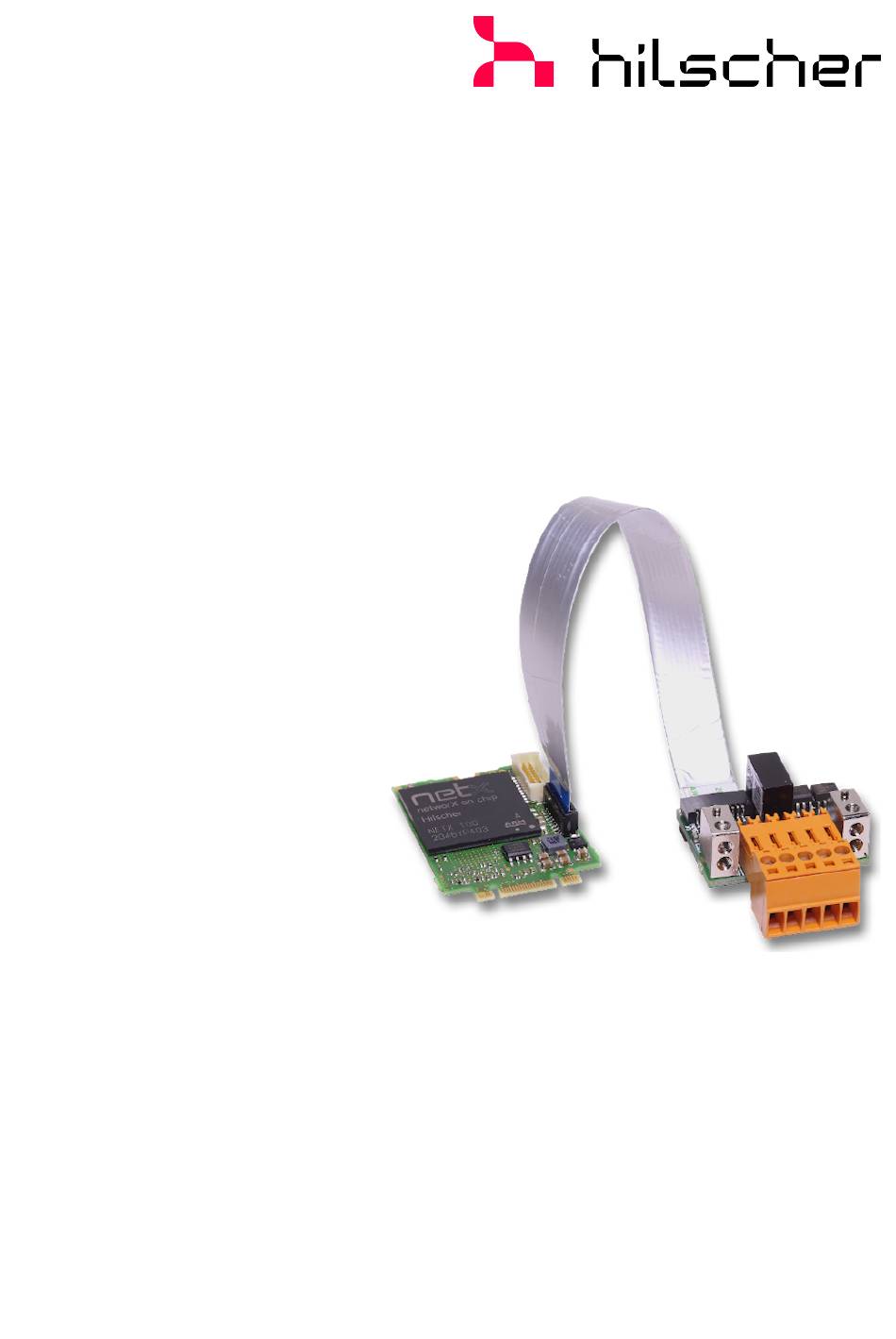

    5/52 2 Devices and accessories The PC card CIFX M3042100BM-DN\F is a communication interface from Hilscher based on the communication controller netX 100 and consists of a basic card that is equipped with a detached network interface. PC card Description of the basic card...
  • Page 6: Basic Card Cifx M3042100Bm

    PCI Express M.2 bus, pin 67 to pin 75 (10) Matrix label Table 4: Legend for the basic card CIFX M3042100BM CIFX M3042100BM-DN\F | Hardware description and installation © Hilscher 2021 -2023 DOC210402UM03EN | Revision 3 | English | 2023-06 | Released | Public...
  • Page 7: Detached Network Interface Aifx-Dn

    After the download, you can start commissioning and configuring your device immediately. Ø Check our website regularly for software updates for your product. CIFX M3042100BM-DN\F | Hardware description and installation © Hilscher 2021 -2023 DOC210402UM03EN | Revision 3 | English | 2023-06 | Released | Public...
  • Page 8: Revision Or Version Statuses Of The Hardware And Software

    Note: Unless otherwise stated, the firmware version in this manual is the same as the stack version. CIFX M3042100BM-DN\F | Hardware description and installation © Hilscher 2021 -2023 DOC210402UM03EN | Revision 3 | English | 2023-06 | Released | Public...
  • Page 9: Device Label With Matrix Code

    The 2D code (Data Matrix Code) contains the following information: Part number: 1234.567 Hardware revision: 1 Serial number: 20000 Figure 3: Example 2D label CIFX M3042100BM-DN\F | Hardware description and installation © Hilscher 2021 -2023 DOC210402UM03EN | Revision 3 | English | 2023-06 | Released | Public...
  • Page 10: Safety

    · Evaluation of the safety of electrical systems and equipment · Installing and configuring IT systems · CIFX M3042100BM-DN\F | Hardware description and installation © Hilscher 2021 -2023 DOC210402UM03EN | Revision 3 | English | 2023-06 | Released | Public...
  • Page 11: Safety Messages

    Performing hot-swap or hot-plug may pose a hazard to the PC card, the system platform and the person performing the action. CIFX M3042100BM-DN\F | Hardware description and installation © Hilscher 2021 -2023 DOC210402UM03EN | Revision 3 | English | 2023-06 | Released | Public...
  • Page 12: Property Damage

    If available, use a static-safe workstation. · When not in use, store the equipment in appropriate static-safe packaging. CIFX M3042100BM-DN\F | Hardware description and installation © Hilscher 2021 -2023 DOC210402UM03EN | Revision 3 | English | 2023-06 | Released | Public...
  • Page 13: Power Drop During Write And Delete Accesses In The File System

    Information and data security Take all usual measures for information and data security, in particular, for PC cards with Ethernet technology. Hilscher explicitly points out that a device with access to a public network (Internet) must be installed behind a firewall or only be accessible via a secure connection such as an encrypted VPN connection.
  • Page 14: Installing The Hardware

    Operating system ® For SYCON.net for netX: Windows CIFX M3042100BM-DN\F | Hardware description and installation © Hilscher 2021 -2023 DOC210402UM03EN | Revision 3 | English | 2023-06 | Released | Public...
  • Page 15: Table 10: Panel Cut-Outs And Holes For Mounting Aifx

    When dimensioning the front panel, note the width of the front panel specified in section AIFX-DN [} page 34] . CIFX M3042100BM-DN\F | Hardware description and installation © Hilscher 2021 -2023 DOC210402UM03EN | Revision 3 | English | 2023-06 | Released | Public...
  • Page 16: Requirements For Operation

    The PC card must be parameterized using the SYCON.net for netX configuration software. Table 11: Requirements for operation CIFX M3042100BM-DN\F | Hardware description and installation © Hilscher 2021 -2023 DOC210402UM03EN | Revision 3 | English | 2023-06 | Released | Public...
  • Page 17: Overview Installation And Firmware Download

    PC card CIFX M3042100BM-CO\F: Step Description Further information Downloading installation Revision or version · Download the installation files from the Hilscher website for: files statuses of the hardware - cifX Device Driver (latest version) and software [} page 8] - SYCON.net for netX ·...
  • Page 18 PC, and make sure you are grounded when you install or uninstall the PC card. CIFX M3042100BM-DN\F | Hardware description and installation © Hilscher 2021 -2023 DOC210402UM03EN | Revision 3 | English | 2023-06 | Released | Public...
  • Page 19 PC, and make sure you are grounded when you install or uninstall the PC card. CIFX M3042100BM-DN\F | Hardware description and installation © Hilscher 2021 -2023 DOC210402UM03EN | Revision 3 | English | 2023-06 | Released | Public...
  • Page 20 Ø To do this, first plug the cable into the cable connector fieldbus X1 on the AIFX-DN. CIFX M3042100BM-DN\F | Hardware description and installation © Hilscher 2021 -2023 DOC210402UM03EN | Revision 3 | English | 2023-06 | Released | Public...
  • Page 21: Figure 4: Connecting Cable To The Detached Network Interface Fieldbus Aifx-Dn

    Ø Close the housing of the PC or connection device again. Loading or updating the firmware and configuration in the device Ø Download the firmware from the Hilscher website and save the firmware to your PC's local hard disk. Ø If necessary, transfer the configuration to the PC. Create the configuration using an appropriate configuration software.
  • Page 22: Troubleshooting Information

    LEDs in this manual. For information about the device diagnostics and their functions, see the operating instruction manual of the configuration software for your device. CIFX M3042100BM-DN\F | Hardware description and installation © Hilscher 2021 -2023 DOC210402UM03EN | Revision 3 | English | 2023-06 | Released | Public...
  • Page 23: Uninstall The Hardware

    Ø Remove the detached network interface from the housing cover of the PC or connection device. Ø Close the housing of the PC or connection device again. CIFX M3042100BM-DN\F | Hardware description and installation © Hilscher 2021 -2023 DOC210402UM03EN | Revision 3 | English | 2023-06 | Released | Public...
  • Page 24: Disposal And Recycling Of Waste Electronic Equipment

    Before returning, please contact us via the Return Merchandise Authorization (RMA) form on www.hilscher.com. In Europe, the directive 2012/19/EU waste electrical and electronic equipment applies. Different policies and laws may apply nationally.
  • Page 25: Diagnosis With Leds

    Power supply for the device is missing or hardware defect. (off) Table 14: States of the SYS LED, netX 10/50/51/52/100/500-based devices CIFX M3042100BM-DN\F | Hardware description and installation © Hilscher 2021 -2023 DOC210402UM03EN | Revision 3 | English | 2023-06 | Released | Public...
  • Page 26: Devicenet Master

    The LED turns on green "On" for 250 ms, then red "On" for 250 ms, then green/red/off "Off". Table 16: LED state definitions for the DeviceNet Master protocol CIFX M3042100BM-DN\F | Hardware description and installation © Hilscher 2021 -2023 DOC210402UM03EN | Revision 3 | English | 2023-06 | Released | Public...
  • Page 27: Devicenet Slave

    The LED turns on green "On" for 250 ms, then red "On" for 250 ms, then green/red/off "Off". Table 18: LED state definitions for the DeviceNet Slave protocol CIFX M3042100BM-DN\F | Hardware description and installation © Hilscher 2021 -2023 DOC210402UM03EN | Revision 3 | English | 2023-06 | Released | Public...
  • Page 28: Connectors

    Reset out Output (not used) Table 20: Pin assignment for cable connector fieldbus X701 (10FMN-BMT-A-TF), on CIFX M3042100BM CIFX M3042100BM-DN\F | Hardware description and installation © Hilscher 2021 -2023 DOC210402UM03EN | Revision 3 | English | 2023-06 | Released | Public...
  • Page 29: Cable Connector Fieldbus X1, Aifx-Dn

    (not used) RSTOUT# Reset out Input (not used) Table 21: Pin assignment for cable connector fieldbus X1, AIFX-DN CIFX M3042100BM-DN\F | Hardware description and installation © Hilscher 2021 -2023 DOC210402UM03EN | Revision 3 | English | 2023-06 | Released | Public...
  • Page 30: Pci Express M.2 Bus

    REFCLKP PCIe Reference Clock signals (100 MHz) defined by the PCI Express CEM Specification. Input (not used) Return current path. Power (not used) CIFX M3042100BM-DN\F | Hardware description and installation © Hilscher 2021 -2023 DOC210402UM03EN | Revision 3 | English | 2023-06 | Released | Public...
  • Page 31 3.3V supply Power Return current path. Power Table 22: Pin assignment PCI Express M.2 bus X200, CIFX M3042100BM CIFX M3042100BM-DN\F | Hardware description and installation © Hilscher 2021 -2023 DOC210402UM03EN | Revision 3 | English | 2023-06 | Released | Public...
  • Page 32: Technical Data

    Mounting/installation PCI Express slot (3.3 V), for M.2 type 3042-D3, Dual key B-M (Socket 1 Connectivity) CIFX M3042100BM-DN\F | Hardware description and installation © Hilscher 2021 -2023 DOC210402UM03EN | Revision 3 | English | 2023-06 | Released | Public...
  • Page 33: Pci Identifier On The Pci Express M.2 Bus

    0x0000 Subsystem device ID 0x0000 Table 24: PCI identifier on the PCI Express M.2 bus for CIFX M3042100BM CIFX M3042100BM-DN\F | Hardware description and installation © Hilscher 2021 -2023 DOC210402UM03EN | Revision 3 | English | 2023-06 | Released | Public...
  • Page 34: Aifx-Dn

    CE sign UKCA sign Emission, Immunity Tested together with the corresponding basic card. RoHS Table 25: Technical data AIFX-DN CIFX M3042100BM-DN\F | Hardware description and installation © Hilscher 2021 -2023 DOC210402UM03EN | Revision 3 | English | 2023-06 | Released | Public...
  • Page 35: Communication Protocols

    Automatic baud rate detection is not supported. Data transport layer CAN frames Reference to firmware/stack V2.4 version Table 26: Technical data DeviceNet Master CIFX M3042100BM-DN\F | Hardware description and installation © Hilscher 2021 -2023 DOC210402UM03EN | Revision 3 | English | 2023-06 | Released | Public...
  • Page 36: Devicenet Slave

    Automatic baud rate detection is not supported Data transport layer CAN frames Reference to firmware/stack V2.7 version Table 27: Technical data DeviceNet Slave CIFX M3042100BM-DN\F | Hardware description and installation © Hilscher 2021 -2023 DOC210402UM03EN | Revision 3 | English | 2023-06 | Released | Public...
  • Page 37: Dimensions

    The dimensions (L x W x H) given in the section Technical data [} page 32] (or the identical information in the product data sheet or on the Hilscher website) are rounded figures or the respective total measure (for example, including the front panel).
  • Page 38: Dimensions Cifx M3042100Bm

    The height of the component on the top of the basic card M3042100BM does not meet the standard specifications. For more information, see section System requirements [} page 14]. CIFX M3042100BM-DN\F | Hardware description and installation © Hilscher 2021 -2023 DOC210402UM03EN | Revision 3 | English | 2023-06 | Released | Public...
  • Page 39: Dimensions Aifx-Dn

    Dimensions 39/52 Dimensions AIFX-DN Figure 8: Dimensions AIFX-DN (Revision 3) CIFX M3042100BM-DN\F | Hardware description and installation © Hilscher 2021 -2023 DOC210402UM03EN | Revision 3 | English | 2023-06 | Released | Public...
  • Page 40: Appendix

    CIFX M3042100BM-DN\F | Hardware description and installation © Hilscher 2021 -2023 DOC210402UM03EN | Revision 3 | English | 2023-06 | Released | Public...
  • Page 41: References

    FDT-Container, DOC040401OIxxEN, English, 2018-03. Hilscher Gesellschaft für Systemautomation mbH: Operation instruction manual, DTM for DeviceNet Master devices, Configuration of Hilscher Master devices, DOC070403OIxxEN, English, 2018-03 Hilscher Gesellschaft für Systemautomation mbH: Operation instruction manual, DTM for Hilscher DeviceNet Slave devices, Configuration of Hilscher Slave devices, DOC091003OIxxEN, English, 2019-04.
  • Page 42 Electrostatics - Part 5-2: Protection of electronic components against electrostatic phenomena, User manual, (IEC TR 61340-5-2:2018), DIN IEC/ TR 61340-5-2 (VDE V 0300-5-2), English, 2019-04. CIFX M3042100BM-DN\F | Hardware description and installation © Hilscher 2021 -2023 DOC210402UM03EN | Revision 3 | English | 2023-06 | Released | Public...
  • Page 43: Conventions In This Manual

    Indicates a hazardous situation, which if not avoided, may result in minor or moderate Injury. NOTICE Indicates a property damage message. Table 29: Signal words CIFX M3042100BM-DN\F | Hardware description and installation © Hilscher 2021 -2023 DOC210402UM03EN | Revision 3 | English | 2023-06 | Released | Public...
  • Page 44: Legal Notes

    The manual delivered with the product shall apply. Under no circumstances shall Hilscher Gesellschaft für Systemautomation mbH be liable for direct, indirect, ancillary or subsequent damage, or for any loss of income, which may arise after use of the information contained herein.
  • Page 45 Appendix 45/52 Liability disclaimer The hardware and/or software was created and tested by Hilscher Gesellschaft für Systemautomation mbH with utmost care and is made available as is. No warranty can be assumed for the performance or flawlessness of the hardware and/or software under all application conditions and scenarios and the work results achieved by the user when using the hardware and/or software.
  • Page 46 Additional guarantees Although the hardware and software was developed and tested in-depth with greatest care, Hilscher Gesellschaft für Systemautomation mbH shall not assume any guarantee for the suitability thereof for any purpose that was not confirmed in writing. No guarantee can be granted whereby the...
  • Page 47 The customer hereby expressly acknowledges that this document contains trade secrets, information protected by copyright and other patent and ownership privileges as well as any related rights of Hilscher Gesellschaft für Systemautomation mbH. The customer agrees to treat as confidential all of the information made available to customer by Hilscher Gesellschaft für...
  • Page 48: Registered Trademarks

    * Die Master-Lizenz beinhaltet den Betrieb der PC-Karte cifX als Master sowie die Lizenz für die Konfigurationssoftware SYCON.net für das jeweilige cifX. CIFX M3042100BM-DN\F | Hardware description and installation © Hilscher 2021 -2023 DOC210402UM03EN | Revision 3 | English | 2023-06 | Released | Public...
  • Page 49 DeviceNet interface (CombiCon plug connector, 5-pin), X200......28 Figure 7: Dimensions CIFX M3042100BM ................38 Figure 8: Dimensions AIFX-DN (Revision 3) ............... 39 CIFX M3042100BM-DN\F | Hardware description and installation © Hilscher 2021 -2023 DOC210402UM03EN | Revision 3 | English | 2023-06 | Released | Public...
  • Page 50 Technical data DeviceNet Master................Table 27: Technical data DeviceNet Slave................Table 28: Signs........................Table 29: Signal words ......................CIFX M3042100BM-DN\F | Hardware description and installation © Hilscher 2021 -2023 DOC210402UM03EN | Revision 3 | English | 2023-06 | Released | Public...
  • Page 51: Glossary

    8 bytes of user data as well as the application layer are described in the CANopen standard. CIFX M3042100BM Communication interface in M.2 format and B+M key from Hilscher on the basis of the netX 100 communication controller DeviceNet Open network standard based on CAN: (1.) Standardization in the...
  • Page 52: Contacts

    Hilscher Korea Inc. E-mail: hotline@hilscher.com 13494, Seongnam, Gyeonggi Phone: +82 (0) 31-739-8361 SUBSIDIARIES E-mail: info@hilscher.kr China Support Hilscher Systemautomation (Shanghai) Co. Ltd. Phone: +82 (0) 31-739-8363 200010 Shanghai E-mail: kr.support@hilscher.com Phone: +86 (0) 21-6355-5161 E-mail: info@hilscher.cn Austria Support Hilscher Austria GmbH...
