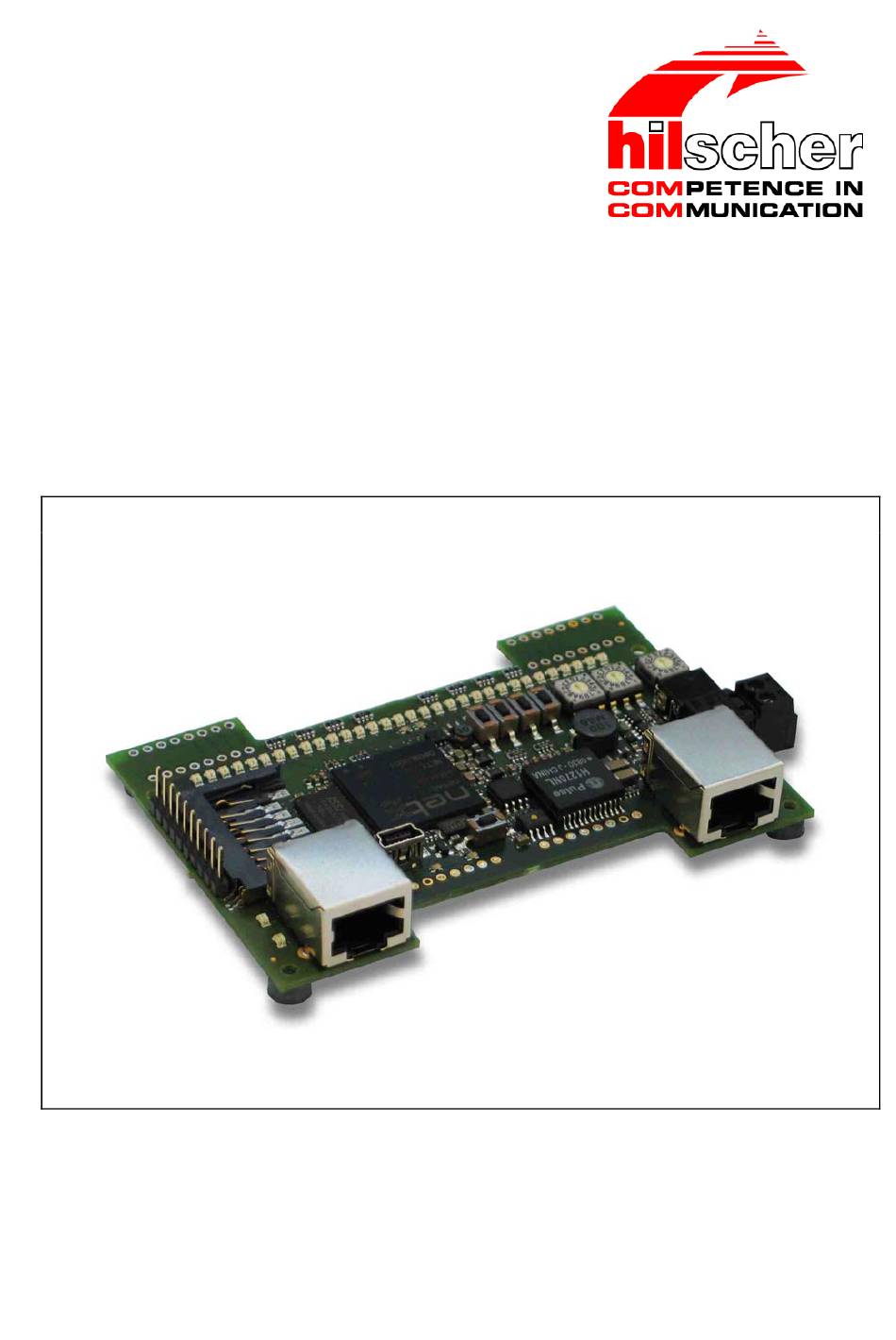

- Page 1 User Manual NXIO 50-RE-Board Hardware Description Hilscher Gesellschaft für Systemautomation mbH www.hilscher.com DOC090101UM04EN | Revision 4 | English | 2011-06 | Released | Public...
-
Page 2: Table Of Contents
Possibilities of sticking NXIO 50 Boards togehter.............23 4.3.1 Allowed Interconnections ...................23 4.3.2 Forbidden Interconnections................24 CONFIGURATION ....................25 PROFINET IO Device....................25 5.1.1 General Data ......................25 NXIO 50-RE-Board | Hardware Description DOC090101UM04EN | Revision 4 | English | 2011-06 | Released | Public © Hilscher, 2009-2011... -
Page 3: Introduction
LED PROFINET IO-RT-Device ................42 7.3.6 LED SERCOS III-Slave ..................43 TECHNICAL DATA ....................45 Technical Data of the Boards ...................45 GLOSSARY.......................46 CONTACTS.......................47 NXIO 50-RE-Board | Hardware Description DOC090101UM04EN | Revision 4 | English | 2011-06 | Released | Public © Hilscher, 2009-2011... -
Page 4: Introduction
Operation Instructions: <instruction> 1. <instruction> 2. <instruction> Results: <result> Notes: Important: <important note> Note: <note> <note, were to find further information> NXIO 50-RE-Board | Hardware Description DOC090101UM04EN | Revision 4 | English | 2011-06 | Released | Public © Hilscher, 2009-2011... -
Page 5: Reference To Hardware And Firmware
The product CD contains: • Documentation: User Manual (this document) • Schematic • Device Description Files (GSDML, XML, EDS) • Firmware NXIO 50-RE-Board | Hardware Description DOC090101UM04EN | Revision 4 | English | 2011-06 | Released | Public © Hilscher, 2009-2011... -
Page 6: Legal Notes
There is no entitlement to revisions of delivered documents. The manual delivered with the product applies. Hilscher Gesellschaft für Systemautomation mbH is not liable under any circumstances for direct, indirect, incidental or follow-on damage or loss of earnings resulting from the use of the information contained in this publication. -
Page 7: Exclusion Of Liability
7/47 1.4.3 Exclusion of Liability The software was produced and tested with utmost care by Hilscher Gesellschaft für Systemautomation mbH and is made available as is. No warranty can be assumed for the performance and flawlessness of the software for all usage conditions and cases and for the results produced when utilized by the user. -
Page 8: Export Regulations
We wish to inform you that you may require permission from state authorities to export, re-export or import the product. NXIO 50-RE-Board | Hardware Description DOC090101UM04EN | Revision 4 | English | 2011-06 | Released | Public © Hilscher, 2009-2011... -
Page 9: Safety
CAUTION consequence simple battery if it isn't avoided. Indicates an important note in the manual. Note Table 5: Signal Words NXIO 50-RE-Board | Hardware Description DOC090101UM04EN | Revision 4 | English | 2011-06 | Released | Public © Hilscher, 2009-2011... - Page 10 Indicates a Property Damage Message. NOTICE Indicates an Important Note in the Manual. Note Table 6: Signal Words according to ANSI NXIO 50-RE-Board | Hardware Description DOC090101UM04EN | Revision 4 | English | 2011-06 | Released | Public © Hilscher, 2009-2011...
-
Page 11: Safety Instructions
Do not touch circuit components inside the equipment. If available, use a static-safe workstation. When not in use, store the equipment in appropriate static-safe packaging. NXIO 50-RE-Board | Hardware Description DOC090101UM04EN | Revision 4 | English | 2011-06 | Released | Public © Hilscher, 2009-2011... -
Page 12: Description And Requirements
NXIO 50-RE-Board | Hardware Description DOC090101UM04EN | Revision 4 | English | 2011-06 | Released | Public © Hilscher, 2009-2011... -
Page 13: Netx50 Technology
13/47 3.1.1 netX50 Technology The netX50 is a member of Hilscher’s family of highly integrated network controllers with a new system architecture optimized for communication and maximum data throughput. Based on the 32-Bit CPU ARM 966E-S clocked with 200 MHz, it provides a total of 112 KB internal RAM (including 8 KB instruction TCM and 8 KB data TCM) and 64 KByte ROM. -
Page 14: Requirements
• DC power supply with 12 - 30 V (DC) output voltage, power consumption approximately. 2,6 W per Board. • Communication Master • Ethernet cable • Firmware on plugged MMC card NXIO 50-RE-Board | Hardware Description DOC090101UM04EN | Revision 4 | English | 2011-06 | Released | Public © Hilscher, 2009-2011... -
Page 15: Device Drawings And Connections
Input signal Bit 31, from pushbutton Socket terminal Ethernet CH 0 and power supply strip Input signal Bit 16, from push button NXIO 50-RE-Board | Hardware Description DOC090101UM04EN | Revision 4 | English | 2011-06 | Released | Public © Hilscher, 2009-2011... - Page 16 Socket terminal Ethernet CH 1 and power supply strip Table 7: Operator elements, interfaces and LEDs of the NXIO 50-RE Board NXIO 50-RE-Board | Hardware Description DOC090101UM04EN | Revision 4 | English | 2011-06 | Released | Public © Hilscher, 2009-2011...
- Page 17 The connector pins 7 .. 10 have an in / output level of 3,3 V and a pulldown- resistor of 50 KΩ. These are not short-circuit-proof! Note: The pins of connector are for oscilloscope measurements only. NXIO 50-RE-Board | Hardware Description DOC090101UM04EN | Revision 4 | English | 2011-06 | Released | Public © Hilscher, 2009-2011...
- Page 18 CH1 RX– Ethernet Channel 1: receipt data ten – +24 V Power supply Ground Table 12: Signals of multi-pin connector 31 NXIO 50-RE-Board | Hardware Description DOC090101UM04EN | Revision 4 | English | 2011-06 | Released | Public © Hilscher, 2009-2011...
-
Page 19: Power Supply
Input: 100-240 V ~0,4 A (47-63 Hz) Output: 24 V / 0,625 mA cable length :1,8 m Order number: 7930.000 NXIO 50-RE-Board | Hardware Description DOC090101UM04EN | Revision 4 | English | 2011-06 | Released | Public © Hilscher, 2009-2011... -
Page 20: Types Of The Nxio 50-Re Boards
Ethernet connection is designed as multi-pin /multipoint connector. Via this multi-pin/multipoint connector other NXIO 50 board can be connected. The power supply is connected through. NXIO 50-RE-Board | Hardware Description DOC090101UM04EN | Revision 4 | English | 2011-06 | Released | Public © Hilscher, 2009-2011... -
Page 21: Nxio 50-Re\Cr
/multipoint connectors. Via this multi- pin/multipoint connectors other NXIO 50 board can be connected. The power supply is connected through. NXIO 50-RE-Board | Hardware Description DOC090101UM04EN | Revision 4 | English | 2011-06 | Released | Public © Hilscher, 2009-2011... -
Page 22: Nxio 50-Re\Ca
Ethernet sockets. Additionally a connection for power supply of the NXIO 50 boards sticked together is done. NXIO 50-RE-Board | Hardware Description DOC090101UM04EN | Revision 4 | English | 2011-06 | Released | Public © Hilscher, 2009-2011... -
Page 23: Possibilities Of Sticking Nxio 50 Boards Togehter
NXIO 50-RE\CA adapter. The maximum installation of NXIO boards regarding the power supply. NXIO 50-RE-Board | Hardware Description DOC090101UM04EN | Revision 4 | English | 2011-06 | Released | Public © Hilscher, 2009-2011... -
Page 24: Forbidden Interconnections
NXIO 50-RE\CN forbidden. Only one of these boards is allowed. In the interconnection above is one of the red crossed NXIO 50-RE\CN boards forbidden. NXIO 50-RE-Board | Hardware Description DOC090101UM04EN | Revision 4 | English | 2011-06 | Released | Public © Hilscher, 2009-2011... -
Page 25: Configuration
VLAN- and Priority-tagging Functions cyclic process data Context Management over CLRPC Target/Actual Configuration comparison Table 13: General Data PROFINET IO Device NXIO 50-RE-Board | Hardware Description DOC090101UM04EN | Revision 4 | English | 2011-06 | Released | Public © Hilscher, 2009-2011... -
Page 26: Configuring Nxio 50-Re For Profinet Io
Ethernet Device Configuration. Note: For further information refer to the operation instruction manual Ethernet Device Configuration (Setting IP Address for Ethernet compatible Hilscher Devices using the DCP Protocol, ENDevCfg_en.pdf). 8. Configure the Master. NXIO 50-RE-Board | Hardware Description DOC090101UM04EN | Revision 4 | English | 2011-06 | Released | Public ©... -
Page 27: Ethercat Slave
Real-Time Ethernet System EtherCAT Slave Set protocol rotary switch to position 3 Protocol rotary switch Not used Address rotary switches Hilscher NXIO 50-RE ECS.xml (on CD) System Requirements EtherCAT Master Support USB Current firmware has no USB support Cyclic data... -
Page 28: Ethernet/Ip Adapter (Slave)
Then the saved configuration is loaded and DHCP is used for startup. EDS (Device description file) HILSCHER NXIO50 EIS 1.1.EDS (of CD) System Requirements EtherNet/IP Scanner / Master For the start after power on or reset the IP address must... -
Page 29: Sercos Iii Slave
Set protocol rotary switch to position 4. Protocol rotary switch Device address from 1 to 127 Address rotary switches SDDML (Device description file) Hilscher NXIO50 RE S3S FSPIO FixCFG.xml (on CD) System Requirements SERCOS III Master Firmware Support USB Current firmware has no USB support. -
Page 30: Open Modbus/Tcp Server
Communication System Switch Open Modbus/TCP applicable applicable Table 21: Use of Hubs and Switches for Open Modbus/TCP 5. Configure the Client. NXIO 50-RE-Board | Hardware Description DOC090101UM04EN | Revision 4 | English | 2011-06 | Released | Public © Hilscher, 2009-2011... -
Page 31: Powerlink Controlled Node (Slave)
Communication System Switch POWERLINK applicable forbidden Table 23: Use of Hubs and Switches 5. Configure the Master. NXIO 50-RE-Board | Hardware Description DOC090101UM04EN | Revision 4 | English | 2011-06 | Released | Public © Hilscher, 2009-2011... -
Page 32: Interfaces
2 x 2 Twisted-Pair cupric cable, CAT5 (100 MBit/s) Length of cable max. 100 m Transmission rate 10 MBit/s / 100 MBit/s Table 25: Ethernet Connection Data NXIO 50-RE-Board | Hardware Description DOC090101UM04EN | Revision 4 | English | 2011-06 | Released | Public © Hilscher, 2009-2011... -
Page 33: Use Of Hubs And Switches
Data - Data + Not connected Ground Table 27: Pin assignment X2 This interface is not supported by the current firmware. NXIO 50-RE-Board | Hardware Description DOC090101UM04EN | Revision 4 | English | 2011-06 | Released | Public © Hilscher, 2009-2011... -
Page 34: Leds Real-Time-Ethernet- Systems
LINK, L Link ACT, A Activity Link/Activity L/A IN Link/Activity Input L/A OUT Link/Activity Output Table 29: Meaning LED Names NXIO 50-RE-Board | Hardware Description DOC090101UM04EN | Revision 4 | English | 2011-06 | Released | Public © Hilscher, 2009-2011... -
Page 35: Sys-Led
To determine the position of the LED use the device drawings in section Device Drawings and Connections on page 15. NXIO 50-RE-Board | Hardware Description DOC090101UM04EN | Revision 4 | English | 2011-06 | Released | Public © Hilscher, 2009-2011... -
Page 36: Leds Real-Time Ethernet Protocols
No link established (off) RJ45 Ch0 LED yellow This LED is not used. RJ45 Ch1 Table 31: LEDs EtherCAT Slave NXIO 50-RE-Board | Hardware Description DOC090101UM04EN | Revision 4 | English | 2011-06 | Released | Public © Hilscher, 2009-2011... - Page 37 To determine the position of the LEDs use the device drawings in section Device Drawings and Connections on page 15. NXIO 50-RE-Board | Hardware Description DOC090101UM04EN | Revision 4 | English | 2011-06 | Released | Public © Hilscher, 2009-2011...
-
Page 38: Led Ethernet/Ip-Adapter (Slave)
To determine the position of the LEDs use the device drawings in section Device Drawings and Connections on page 15. NXIO 50-RE-Board | Hardware Description DOC090101UM04EN | Revision 4 | English | 2011-06 | Released | Public © Hilscher, 2009-2011... -
Page 39: Led Open Modbus/Tcp
To determine the position of the LEDs use the device drawings in section Device Drawings and Connections on page 15. NXIO 50-RE-Board | Hardware Description DOC090101UM04EN | Revision 4 | English | 2011-06 | Released | Public © Hilscher, 2009-2011... -
Page 40: Led Powerlink Controlled Node / Slave
The device has no connection to the Ethernet (off) RJ45 LED yellow Ch0 & Ch1 This LED is not used. & Table 35: LEDs Powerlink Controlled Node/Slave NXIO 50-RE-Board | Hardware Description DOC090101UM04EN | Revision 4 | English | 2011-06 | Released | Public © Hilscher, 2009-2011... - Page 41 To determine the position of the LEDs use the device drawings in section Device Drawings and Connections on page 15. NXIO 50-RE-Board | Hardware Description DOC090101UM04EN | Revision 4 | English | 2011-06 | Released | Public © Hilscher, 2009-2011...
-
Page 42: Led Profinet Io-Rt-Device
To determine the position of the LEDs use the device drawings in section Device Drawings and Connections on page 15. NXIO 50-RE-Board | Hardware Description DOC090101UM04EN | Revision 4 | English | 2011-06 | Released | Public © Hilscher, 2009-2011... -
Page 43: Led Sercos Iii-Slave
The device has no connection to the Ethernet (off) RJ45 LED yellow Ch0 & Ch1 This LED is not used. & Table 38: LEDs SERCOS III Slave NXIO 50-RE-Board | Hardware Description DOC090101UM04EN | Revision 4 | English | 2011-06 | Released | Public © Hilscher, 2009-2011... - Page 44 To determine the position of the LEDs use the device drawings in section Device Drawings and Connections on page 15. NXIO 50-RE-Board | Hardware Description DOC090101UM04EN | Revision 4 | English | 2011-06 | Released | Public © Hilscher, 2009-2011...
-
Page 45: Technical Data
Dimensions (L x B x H) 100 x 32,5 x 16 mm Table 41: Technical data NXIO 50-RE \CA Board NXIO 50-RE-Board | Hardware Description DOC090101UM04EN | Revision 4 | English | 2011-06 | Released | Public © Hilscher, 2009-2011... -
Page 46: Glossary
Glossary 46/47 9 Glossary netX networX on chip, next generation of communication controllers Programmable Input / Output NXIO 50-RE-Board | Hardware Description DOC090101UM04EN | Revision 4 | English | 2011-06 | Released | Public © Hilscher, 2009-2011... -
Page 47: Contacts
Phone: +1 630-505-5301 E-Mail: info@hilscher.it E-Mail: info@hilscher.us Support Support Phone: +39 02 25007068 Phone: +1 630-505-5301 E-Mail: it.support@hilscher.com E-Mail: us.support@hilscher.com NXIO 50-RE-Board | Hardware Description DOC090101UM04EN | Revision 4 | English | 2011-06 | Released | Public © Hilscher, 2009-2011...
