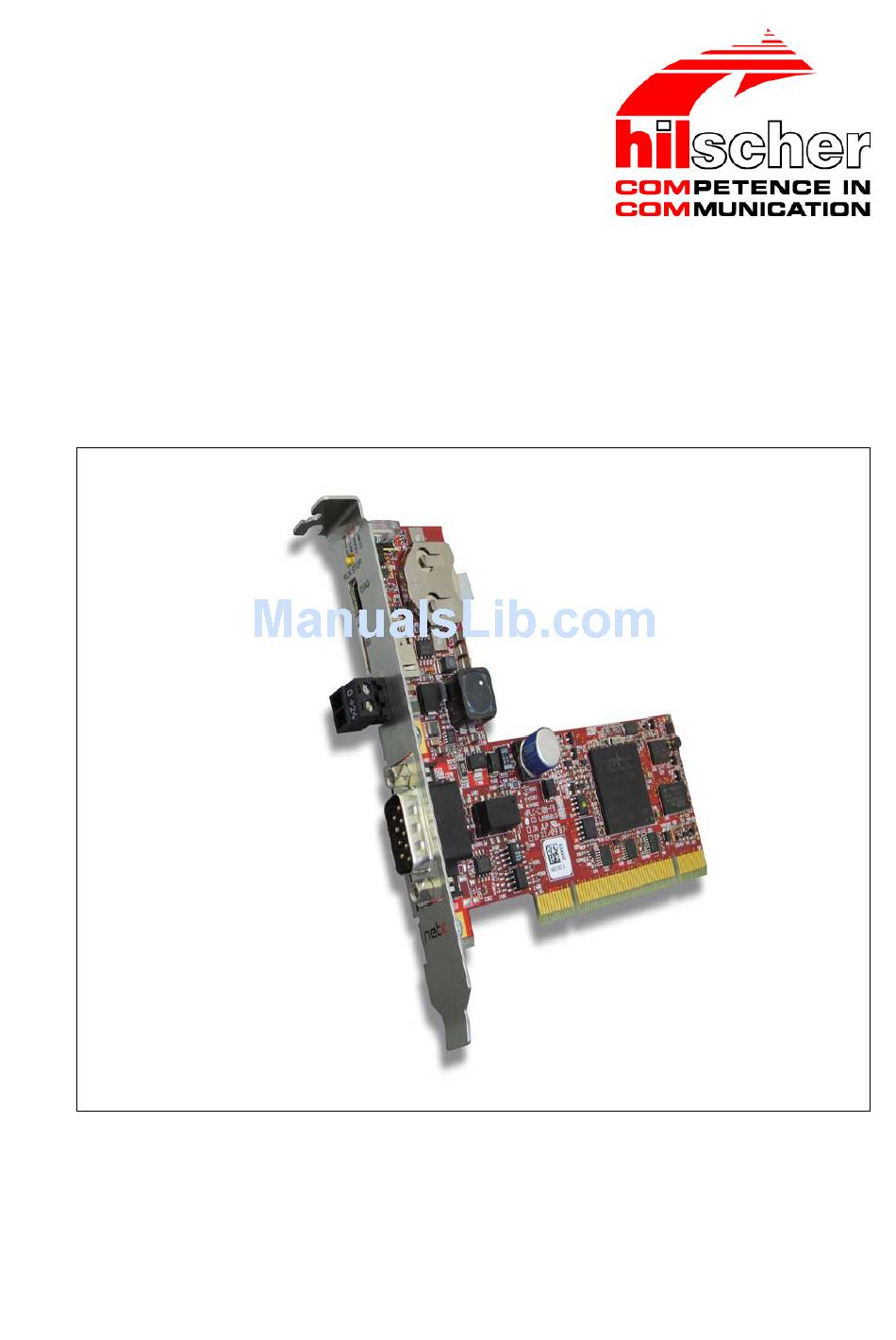

- Page 1 User Manual Slot PLC NPLC-C100 Hardware Installation Hilscher Gesellschaft für Systemautomation mbH www.hilscher.com DOC120112UM02EN | Revision 2 | English | 2014-01 | Released | Public...
-
Page 2: Table Of Contents
DEVICE DRAWINGS ....................16 Device Drawing NPLC-C100-DP ................16 4.1.1 Cover NPLC-C100-xx..................17 INSTALLING HARDWARE (SLOT PLC) ..............18 Safety Messages on Personal Injury ................18 Slot PLC NPLC-C100 | Hardware Installation DOC120112UM02EN | Revision 2 | English | 2014-01 | Released | Public © Hilscher, 2009-2014... - Page 3 Mini-B USB Connector (5 Pin)................24 BATTERY........................25 Preparation for changing Battery ................26 7.1.1 Safety Messages on Personal Injury..............26 Changing the Battery ....................26 TROUBLESHOOTING ....................28 TECHNICAL DATA SLOT PLC NPLC-C100-XX ............29 APPENDIX ........................30 10.1 Memory Card ......................30 10.2 Update Firmware ......................31 10.3 Battery Disposal......................34...
-
Page 4: Introduction
Introduction 4/36 1 Introduction About the User Manual This user manual contains the description for the slot PLC NPLC-C100-xx. NPLC-C100-xx are PC cards with PLC functionality. This user manual describes the slot PLCs NPLC-C100-DP NPLC-C100-CO NPLC-C100-DN 1.1.1... -
Page 5: Reference To Hardware, Firmware, Driver And Software
Device Driver PC card driver for Windows 1.1.1.0 USB Driver USB driver for Windows 5.1.2600.2180 Table 4: Reference to Driver Slot PLC NPLC-C100 | Hardware Installation DOC120112UM02EN | Revision 2 | English | 2014-01 | Released | Public © Hilscher, 2009-2014... -
Page 6: Conventions In This Manual
If the numbers reference to a section outside the current section then a cross reference to that section and figure is indicated. Slot PLC NPLC-C100 | Hardware Installation DOC120112UM02EN | Revision 2 | English | 2014-01 | Released | Public © Hilscher, 2009-2014... -
Page 7: Legal Notes
There is no entitlement to revisions of delivered documents. The manual delivered with the product applies. Hilscher Gesellschaft für Systemautomation mbH is not liable under any circumstances for direct, indirect, incidental or follow-on damage or loss of earnings resulting from the use of the information contained in this publication. -
Page 8: Exclusion Of Liability
Warranty Although the hardware and software was developed with utmost care and tested intensively, Hilscher Gesellschaft für Systemautomation mbH does not guarantee its suitability for any purpose not confirmed in writing. It cannot be guaranteed that the hardware and software will meet your requirements, that the use of the software operates without interruption and that the software is free of errors. -
Page 9: Export Regulations
A license for fieldbus master functionality is necessary in the slot PLC to operate on the fieldbus as master. Slot PLC NPLC-C100 | Hardware Installation DOC120112UM02EN | Revision 2 | English | 2014-01 | Released | Public © Hilscher, 2009-2014... -
Page 10: Safety
Table 5: Slot PLC NPLC-C100 and Fieldbus Systems realized thereby Personnel Qualification The PC Card NPLC-C100 must only be installed, configured and removed by qualified personnel. Job-specific technical skills for people professionally working with electricity must be present concerning the following topics: ... -
Page 11: Commitment To Read And Understand The Manual
The danger of a lethal electrical shock caused by parts with more than 50V may occur, if you open the PC cabinet to install the PC Card NPLC-C100. HAZARDOUS VOLTAGE is present inside of the PC or of the connec- ting device, into which the PC Card cifX is integrated. -
Page 12: Labeling Of Safety Instructions
ANSI Z535 standard, refer to reference safety [S1]. Slot PLC NPLC-C100 | Hardware Installation DOC120112UM02EN | Revision 2 | English | 2014-01 | Released | Public © Hilscher, 2009-2014... -
Page 13: Safety Instructions
Follow guidelines when you handle this equipment. Observe the necessary safety precautions when handling components that are vulnerable to electrostatic discharge. Slot PLC NPLC-C100 | Hardware Installation DOC120112UM02EN | Revision 2 | English | 2014-01 | Released | Public © Hilscher, 2009-2014... -
Page 14: Description And Requirements
Fieldbus Systems realized thereby on page 10 can be realized. Power Supply The slot PLC NPLC-C100 can be supplied by 5 V or 3.3 V (via the PCI bus) or by an external supply voltage of 24 V DC. By that a redundant power supply is achieved. -
Page 15: System Requirements
DVD ROM drive Graphic resolution: min. 1024 x 768 pixel or higher Keyboard and Mouse Requirements for Operation Note: For operating a slot PLC NPLC-C100-xx Update older versions of the cifX Device Driver to V1.1.1.0. 3.3.1 Slot PLC NPLC-C100-XX... -
Page 16: Device Drawings
NPLC-C100-DP: PROFIBUS interface NPLC-C100-CO: CANopen interface NPLC-C100-DN: DeviceNet interface Battery holder Battery Table 9: Designation in the Device Drawing NPLC-C100-xx Slot PLC NPLC-C100 | Hardware Installation DOC120112UM02EN | Revision 2 | English | 2014-01 | Released | Public © Hilscher, 2009-2014... -
Page 17: Cover Nplc-C100-Xx
-DP – D-Sub female, 9 pin -CO – D-Sub male, 9 pin -DN – COMBICON, 5 pin Table 10: Designation for the Cover of NPLC-C100-xx Slot PLC NPLC-C100 | Hardware Installation DOC120112UM02EN | Revision 2 | English | 2014-01 | Released | Public... -
Page 18: Installing Hardware (Slot Plc)
Make sure, that the power supply is off at the PC or at the connecting device. Open the PC cabinet and install or remove the slot PLC NPLC-C100 only after disconnecting power Slot PLC NPLC-C100 | Hardware Installation DOC120112UM02EN | Revision 2 | English | 2014-01 | Released | Public ©... -
Page 19: Property Damage Messages
Adhere for all slot PLC NPLC-C100 described in this manual the instruction hereafter: Device Destruction! All I/O signal pins at the slot PLC NPLC-C100 tolerate only a specified signaling voltage! Operation the slot PLC NPLC-C100 with a signaling voltage other than... -
Page 20: Installing Battery
Note: Install all software components, before you install the hardware, to prevent problems due to missing drivers after rebooting the PC. For installation of the slot PLC NPLC-C100 handle as follows: 1. Disconnect the power plug of the PC. 2. Open the cabinet of the PC. -
Page 21: Hardware
Hardware 21/36 6 Hardware Block Diagram Figure 2: NPLC-C100-xx Block Diagram Slot PLC NPLC-C100 | Hardware Installation DOC120112UM02EN | Revision 2 | English | 2014-01 | Released | Public © Hilscher, 2009-2014... -
Page 22: Internal And External Power Supply
22/36 Internal and External Power Supply Note: Hardware revision 3 of the slot PLC NPLC-C100 can be supplied via the PCI bus only with 5 V. Hardware revision 4 of the slot PLC NPLC- C100 can be supplied via the PCI bus with 3.3 V respectively 5 V. -
Page 23: Interfaces
+24 V DeviceNet-power supply COMBICON Socket, female Table 13: DeviceNet Pin Assignment Position in Figure 1 on page 16. Slot PLC NPLC-C100 | Hardware Installation DOC120112UM02EN | Revision 2 | English | 2014-01 | Released | Public © Hilscher, 2009-2014... -
Page 24: Profibus Interface
Schirm PE Metallschutzkragen auf PE Tabelle 1: Mini-B USB Anschluss Pinbelegung (5-polig) Position in Figure 1 on page 16. Slot PLC NPLC-C100 | Hardware Installation DOC120112UM02EN | Revision 2 | English | 2014-01 | Released | Public © Hilscher, 2009-2014... -
Page 25: Battery
If the slot PLC is powered then the battery is not discharged. Important: Recommendation: Change the battery every 12 month. Slot PLC NPLC-C100 | Hardware Installation DOC120112UM02EN | Revision 2 | English | 2014-01 | Released | Public © Hilscher, 2009-2014... -
Page 26: Preparation For Changing Battery
Make sure, that the power supply is off at the PC or at the connecting device. Open the PC cabinet and install or remove the slot PLC NPLC-C100 only after disconnecting power. Changing the Battery 1. - Page 27 10. Reconnect the PC to the mains power and switch it on. For battery disposal see section Battery Disposal on page 34. Slot PLC NPLC-C100 | Hardware Installation DOC120112UM02EN | Revision 2 | English | 2014-01 | Released | Public...
-
Page 28: Troubleshooting
Check that the pin assignment of the used cable is correct. Configuration Check the configuration in the Master and the Slave device. The configuration has to match. Slot PLC NPLC-C100 | Hardware Installation DOC120112UM02EN | Revision 2 | English | 2014-01 | Released | Public © Hilscher, 2009-2014... -
Page 29: Technical Data Slot Plc Nplc-C100-Xx
Technical Data Slot PLC NPLC-C100-xx 29/36 9 Technical Data Slot PLC NPLC-C100-xx Number of Slot PLCs Max. 2 slot PLC in one PC Table 15: Technical Data Slot PLC Item NPLC-C100-DP, NPLC-C100-CO, NPLC-C100-DN System Interface PCI V2.3, 33 MHz Dual-Port Memory Size... -
Page 30: Appendix
30/36 10 Appendix 10.1 Memory Card The slot PLC “NPLC-C100” device can be set back to factory settings with a micro SD card and the base firmware on it. Requirements The memory card can have up to 4 GB storage capacity. -
Page 31: Update Firmware
open the program cifX Setup with a double click on the cifX Setup symbol The cifx Driver Setup Program is started Slot PLC NPLC-C100 | Hardware Installation DOC120112UM02EN | Revision 2 | English | 2014-01 | Released | Public © Hilscher, 2009-2014... - Page 32 Open in the area Assigned Module/Firmware Files with a click on the windows for the firmware file selection Select the firmware file for the NPLC-C100 as listed in the document “software installation” of the used PLC type. ...
- Page 33 The firmware file is loaded into the slot PLC 7 Reset of the slot PLC NPLC-C100 The slot PLC NPLC-C100 requires a reset. Therefore shut down and power down the PC If the external power supply is used, then switch off or disconnect the external power supply from the slot PLC NPLC-C100.
-
Page 34: Battery Disposal
This product must not be treated as household waste. This product must be disposed of at a designated waste electronic equipment collecting point. Slot PLC NPLC-C100 | Hardware Installation DOC120112UM02EN | Revision 2 | English | 2014-01 | Released | Public © Hilscher, 2009-2014... -
Page 35: List Of Figures
Table 2: Reference to Hardware Table 3: Reference to Product Variant Table 4: Reference to Driver Table 5: Slot PLC NPLC-C100 and Fieldbus Systems realized thereby Table 6: Safety Symbols and Sort of Warning or Principle Table 7: Signal Words... -
Page 36: Contacts
Phone: +1 630-505-5301 E-Mail: info@hilscher.it E-Mail: info@hilscher.us Support Support Phone: +39 02 25007068 Phone: +1 630-505-5301 E-Mail: it.support@hilscher.com E-Mail: us.support@hilscher.com Slot PLC NPLC-C100 | Hardware Installation DOC120112UM02EN | Revision 2 | English | 2014-01 | Released | Public © Hilscher, 2009-2014...
