Summary of Contents for hilscher CIFX M223090AE-RE/F

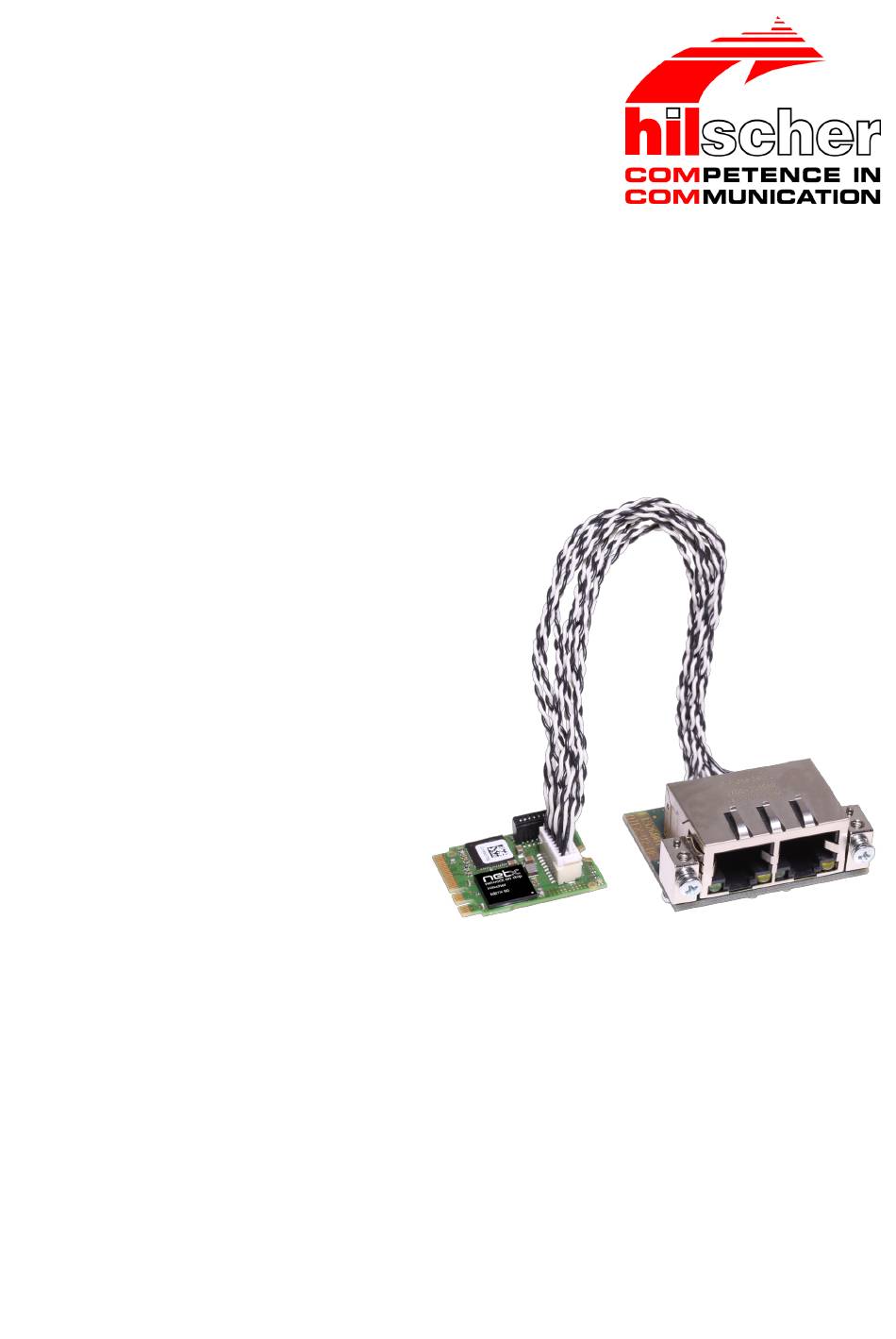

- Page 1 User manual CIFX M223090AE-RE\F PC card PCI Express M.2 2230 A-E Real-Time-Ethernet Slave Hilscher Gesellschaft für Systemautomation mbH www.hilscher.com DOC190704UM06EN | Revision 6 | English | 2022-02 | Released | Public...
-
Page 2: Table Of Contents
Overview ........................ 23 System LED ........................ 24 EtherCAT Slave ...................... 25 EtherNet/IP Adapter (V3/5) .................... 27 OpenModbusTCP ...................... 29 PROFINET IO-Device .................... 30 CIFX M223090AE-RE\F | Hardware description and installation © Hilscher 2019 - 2022 DOC190704UM06EN | Revision 6 | English | 2022-02 | Released | Public... - Page 3 FCC compliance...................... 49 References........................ 49 Conventions in this manual .................... 51 Legal notes........................ 52 Registered trademarks.................... 56 Glossary.......................... 60 Contacts.......................... 63 CIFX M223090AE-RE\F | Hardware description and installation © Hilscher 2019 - 2022 DOC190704UM06EN | Revision 6 | English | 2022-02 | Released | Public...
-
Page 4: Introduction
Section Cable connector Ethernet X1, AIFX-V2-RE [} page 34] added. Section PC card CIFX M223090AE-RE\F [} page 37] and AIFX-V2-RE [} page 39]: UKCA added. Table 1: List of revisions CIFX M223090AE-RE\F | Hardware description and installation © Hilscher 2019 - 2022 DOC190704UM06EN | Revision 6 | English | 2022-02 | Released | Public... -
Page 5: Devices And Accessories
5/63 2 Devices and accessories The PC card CIFX M223090AE-RE\F is a communication interface from Hilscher based on the communication controller netX 90 and consists of a basic card that is equipped with a detached network interface. PC card Description of the basic card... -
Page 6: Basic Card Cifx M223090Ae
PCI Express M.2 bus, pin 32 to pin 75 Table 4: Legend on the basic card CIFX M223090AE CIFX M223090AE-RE\F | Hardware description and installation © Hilscher 2019 - 2022 DOC190704UM06EN | Revision 6 | English | 2022-02 | Released | Public... -
Page 7: Detached Network Interface Aifx-V2-Re
In contrast, the detached network interface Ethernet AIFX-RE is only suitable for netX 100-based devices. CIFX M223090AE-RE\F | Hardware description and installation © Hilscher 2019 - 2022 DOC190704UM06EN | Revision 6 | English | 2022-02 | Released | Public... -
Page 8: Product Software
Unless otherwise stated, the firmware version in this manual is the same as the stack version. CIFX M223090AE-RE\F | Hardware description and installation © Hilscher 2019 - 2022 DOC190704UM06EN | Revision 6 | English | 2022-02 | Released | Public... -
Page 9: Device Label With Matrix Code
The 2D code (Data Matrix Code) contains the following information: Part number: 1234.567 Hardware revision: 1 Serial number: 20000 Figure 3: Example 2D label CIFX M223090AE-RE\F | Hardware description and installation © Hilscher 2019 - 2022 DOC190704UM06EN | Revision 6 | English | 2022-02 | Released | Public... -
Page 10: Safety
Evaluation of the safety of electrical systems and equipment · Installing and configuring IT systems · CIFX M223090AE-RE\F | Hardware description and installation © Hilscher 2019 - 2022 DOC190704UM06EN | Revision 6 | English | 2022-02 | Released | Public... -
Page 11: Safety Messages
Performing hot-swap or hot-plug may pose a hazard to the PC card, the system platform and the person performing the action. CIFX M223090AE-RE\F | Hardware description and installation © Hilscher 2019 - 2022 DOC190704UM06EN | Revision 6 | English | 2022-02 | Released | Public... -
Page 12: Property Damage
If available, use a static-safe workstation. · When not in use, store the equipment in appropriate static-safe packaging. CIFX M223090AE-RE\F | Hardware description and installation © Hilscher 2019 - 2022 DOC190704UM06EN | Revision 6 | English | 2022-02 | Released | Public... -
Page 13: Power Drop During Write And Delete Accesses In The File System
Information and data security Take all usual measures for information and data security, in particular, for PC cards with Ethernet technology. Hilscher explicitly points out that a device with access to a public network (Internet) must be installed behind a firewall or only be accessible via a secure connection such as an encrypted VPN connection. -
Page 14: Warnings
PC, and make sure you are grounded when you install or uninstall the PC card. CIFX M223090AE-RE\F | Hardware description and installation © Hilscher 2019 - 2022 DOC190704UM06EN | Revision 6 | English | 2022-02 | Released | Public... -
Page 15: Installing The Hardware
8 bits for identification of the PCI- Express communication, communication errors occur. Note the errata "CIFX M223090AE" (Hilscher DOC-ID DOC220201ERR01EN) and the solutions and workarounds given therein. The reference is listed in the section References [} page 49] . -
Page 16: Table 10: Panel Cut-Outs And Holes For Aifx Mounting
When dimensioning the front panel, note the width of the front panel specified in section AIFX-V2-RE [} page 39]. CIFX M223090AE-RE\F | Hardware description and installation © Hilscher 2019 - 2022 DOC190704UM06EN | Revision 6 | English | 2022-02 | Released | Public... -
Page 17: Requirements For Operation
To configure the Master device you need the device description file with the name for: · EtherCAT Slave: Hilscher CIFX RE NETX90 ECS.xml, · EtherNet/IP Adapter: HILSCHER CIFX-RE NETX90 EIS V1.1.EDS, · and PROFINET IO-Device: GSDML-V2.35-HILSCHER-CIFX NETX 90 RE... -
Page 18: Overview Installation And Firmware Download
PC card CIFX M223090AE-RE\F: Step Description See section Downloading installation Revision or version status · Download the installation files from the Hilscher website for: files of hardware and - cifX Device Driver (atest version) software [} page 8] - Device Explorer - Communication Studio ·... - Page 19 Ø For this purpose, first plug the cable into the Ethernet X1 cable connector on the AIFX-V2-RE. CIFX M223090AE-RE\F | Hardware description and installation © Hilscher 2019 - 2022 DOC190704UM06EN | Revision 6 | English | 2022-02 | Released | Public...
-
Page 20: Figure 4: Connecting Cable To The Detached Network Interface Ethernet (Aifx-V2-Re)
Loading firmware and configuration in the device or making an update Ø Download the firmware from the Hilscher website and save the firmware on the local hard disk of your PC. Ø If necessary, transfer the configuration to the PC. You create the configuration using a suitable configuration software. -
Page 21: Hints For Problem Solving
CIFX M223090AE-RE\F | Hardware description and installation © Hilscher 2019 - 2022 DOC190704UM06EN | Revision 6 | English | 2022-02 | Released | Public... -
Page 22: Uninstalling The Hardware
As a consumer, you are legally obliged to dispose of all waste electronic equipment according to national and local regulations. CIFX M223090AE-RE\F | Hardware description and installation © Hilscher 2019 - 2022 DOC190704UM06EN | Revision 6 | English | 2022-02 | Released | Public... -
Page 23: Diagnosis With Leds
L/A OUT Link/Activity Output Network status RX/TX Receive/Transmit Bus status Bus error System error Bus failure Table 15: LED designations CIFX M223090AE-RE\F | Hardware description and installation © Hilscher 2019 - 2022 DOC190704UM06EN | Revision 6 | English | 2022-02 | Released | Public... -
Page 24: System Led
· 4 Hz: 1 x yellow "On" for 125 ms and 1 x green "On" for 125 ms. Table 17: Definitions of the states of the SYS LED CIFX M223090AE-RE\F | Hardware description and installation © Hilscher 2019 - 2022 DOC190704UM06EN | Revision 6 | English | 2022-02 | Released | Public... -
Page 25: Ethercat Slave
"Off" phase (200 ms). The sequence is finished by a long "Off" phase (1,000 ms). Table 19: Definition LED states communication status CIFX M223090AE-RE\F | Hardware description and installation © Hilscher 2019 - 2022 DOC190704UM06EN | Revision 6 | English | 2022-02 | Released | Public... -
Page 26: Table 20: Ethernet Status Ethercat Slave
"Off" for 50 ms. The LED turns on and off in irregular intervals to indicate low Ethernet activity. Table 21: Definition LED states Ethernet status CIFX M223090AE-RE\F | Hardware description and installation © Hilscher 2019 - 2022 DOC190704UM06EN | Revision 6 | English | 2022-02 | Released | Public... -
Page 27: Ethernet/Ip Adapter (V3/5)
Not powered, no IP address: The device does not have an (off) IP address (or is powered off). Table 22: Communication status EtherNet/IP Adapter CIFX M223090AE-RE\F | Hardware description and installation © Hilscher 2019 - 2022 DOC190704UM06EN | Revision 6 | English | 2022-02 | Released | Public... -
Page 28: Table 23: Definition Led States Communication Status
"Off" for 50 ms. The LED turns on and off in irregular intervals to indicate low Ethernet activity Table 25: Definition LED states Ethernet status CIFX M223090AE-RE\F | Hardware description and installation © Hilscher 2019 - 2022 DOC190704UM06EN | Revision 6 | English | 2022-02 | Released | Public... -
Page 29: Openmodbustcp
"Off" for 50 ms. The LED turns on and off in irregular intervals to indicate low Ethernet activity. Table 29: Definition LED states Ethernet status CIFX M223090AE-RE\F | Hardware description and installation © Hilscher 2019 - 2022 DOC190704UM06EN | Revision 6 | English | 2022-02 | Released | Public... -
Page 30: Profinet Io-Device
"Off" for 50 ms. The LED turns on and off in irregular intervals to indicate low Ethernet activity. Table 33: Definition LED states Ethernet status CIFX M223090AE-RE\F | Hardware description and installation © Hilscher 2019 - 2022 DOC190704UM06EN | Revision 6 | English | 2022-02 | Released | Public... -
Page 31: Connectors
Table 34: Ethernet pin assignment at the RJ45 socket Note: The RJ45 connector may only be used for LAN, not for telecommunications connections. CIFX M223090AE-RE\F | Hardware description and installation © Hilscher 2019 - 2022 DOC190704UM06EN | Revision 6 | English | 2022-02 | Released | Public... -
Page 32: Data Of The Ethernet Connection
Only allowed if switch supports priority tagging and LLDP (100 MBit/s, full duplex) Table 36: Usability of hubs and switches CIFX M223090AE-RE\F | Hardware description and installation © Hilscher 2019 - 2022 DOC190704UM06EN | Revision 6 | English | 2022-02 | Released | Public... -
Page 33: Cable Connector Ethernet X801, On Cifx M223090Ae
EN LED LINK/ACT1 (yellow/green) Output Table 37: Pin assignment for cable connector Ethernet X801 (BM20B-SRDS-G-T), on CIFX M223090AE CIFX M223090AE-RE\F | Hardware description and installation © Hilscher 2019 - 2022 DOC190704UM06EN | Revision 6 | English | 2022-02 | Released | Public... -
Page 34: Cable Connector Ethernet X1, Aifx-V2-Re
Table 38: Pin assignment for cable connector Ethernet X1, AIFX-V2-RE Figure 7: Cable connector Ethernet X1; 1x20 pins, AIFX-V2-RE CIFX M223090AE-RE\F | Hardware description and installation © Hilscher 2019 - 2022 DOC190704UM06EN | Revision 6 | English | 2022-02 | Released | Public... -
Page 35: Pci Express M.2 Bus
OBFF mechanism, the PEWAKE#signal is used for OBFF signaling. (not used) Return current path. Power 58-63 NC (not used) Return current path. Power CIFX M223090AE-RE\F | Hardware description and installation © Hilscher 2019 - 2022 DOC190704UM06EN | Revision 6 | English | 2022-02 | Released | Public... - Page 36 3.3V supply Power Return current path. Power Table 39: Pin assignment PCI Express M.2 bus X201, CIFX M223090AE CIFX M223090AE-RE\F | Hardware description and installation © Hilscher 2019 - 2022 DOC190704UM06EN | Revision 6 | English | 2022-02 | Released | Public...
-
Page 37: Technical Data
10% … 95% relative humidity, no condensation permitted Environment The device must be used only in a pollution degree 2 environment (or better). CIFX M223090AE-RE\F | Hardware description and installation © Hilscher 2019 - 2022 DOC190704UM06EN | Revision 6 | English | 2022-02 | Released | Public... -
Page 38: Pci Identifiers On The Pci Express M.2 Bus
0x6001 (Flash-based device, SPM) 0x1002 (interrupt source, SPM) Table 41: PCI identifiers on the PCI Express M.2 bus CIFX M223090AE-RE\F | Hardware description and installation © Hilscher 2019 - 2022 DOC190704UM06EN | Revision 6 | English | 2022-02 | Released | Public... -
Page 39: Aifx-V2-Re
UKCA sign Emission, Immunity Tested together with the corresponding basic card. RoHS Table 42: Technical data AIFX-V2-RE CIFX M223090AE-RE\F | Hardware description and installation © Hilscher 2019 - 2022 DOC190704UM06EN | Revision 6 | English | 2022-02 | Released | Public... -
Page 40: Communication Protocols
Two Ethernet Interfaces 100BASE-TX Integrated Dual-PHY (supports Auto-Negotiation and Auto-Crossover) Data transport layer Ethernet II, IEEE 802.3 CIFX M223090AE-RE\F | Hardware description and installation © Hilscher 2019 - 2022 DOC190704UM06EN | Revision 6 | English | 2022-02 | Released | Public... - Page 41 · No physical Read-Write commands supported (APRW, FPRW, BRW) Reference to stack version V5.1 Table 43: Technical data EtherCAT Slave CIFX M223090AE-RE\F | Hardware description and installation © Hilscher 2019 - 2022 DOC190704UM06EN | Revision 6 | English | 2022-02 | Released | Public...
-
Page 42: Ethernet/Ip Adapter
CIP Motion is not supported. CIP Safety is not supported. Reference to firmware/stack version Table 44: Technical data EtherNet/IP Adapter CIFX M223090AE-RE\F | Hardware description and installation © Hilscher 2019 - 2022 DOC190704UM06EN | Revision 6 | English | 2022-02 | Released | Public... -
Page 43: Open Modbus/Tcp
Data transport layer Ethernet II, IEEE 802.3 Reference to firmware/stack version V5.1 Table 45: Technical data Open Modbus/TCP CIFX M223090AE-RE\F | Hardware description and installation © Hilscher 2019 - 2022 DOC190704UM06EN | Revision 6 | English | 2022-02 | Released | Public... -
Page 44: Profinet Io-Device
Packets. Up to 8 sockets are available to the Application. Application Raw Ethernet API Sending and Receiving Raw Ethernet Frames as Application is supported. CIFX M223090AE-RE\F | Hardware description and installation © Hilscher 2019 - 2022 DOC190704UM06EN | Revision 6 | English | 2022-02 | Released | Public... - Page 45 (e.g. RAM) of a device. CIFX M223090AE-RE\F | Hardware description and installation © Hilscher 2019 - 2022 DOC190704UM06EN | Revision 6 | English | 2022-02 | Released | Public...
-
Page 46: Dimensions
The dimensions (L x W x H) given in the section Technical data [} page 37] (or the identical information in the product data sheet or on the Hilscher website) are rounded figures or the respective total measure (for example, including the front panel). -
Page 47: Dimensions Cifx M223090Ae
M223090AE does not comply with the standard specifications. For more information, see section System Requirements [} page 15]. CIFX M223090AE-RE\F | Hardware description and installation © Hilscher 2019 - 2022 DOC190704UM06EN | Revision 6 | English | 2022-02 | Released | Public... -
Page 48: Dimensions Aifx-V2-Re
Dimensions 48/63 Dimensions AIFX-V2-RE Figure 9: Dimensions AIFX-V2-RE (revision 2) CIFX M223090AE-RE\F | Hardware description and installation © Hilscher 2019 - 2022 DOC190704UM06EN | Revision 6 | English | 2022-02 | Released | Public... -
Page 49: Appendix
PCI-SIG (Special Interest Group), PCI Express M.2 Specification, Revision 1.1, English, 2016-12 Protocol API Manuals Hilscher Gesellschaft für Systemautomation mbH: Protocol API, EtherCAT Slave V5.3.0, Revision 3, DOC181005API03EN, English, 2021-08. Hilscher Gesellschaft für Systemautomation mbH: Protocol API, EtherNetIP Adapter V3.7.0 / V5.3.0, Revision 8, DOC150401API08EN, English, 2021-07. - Page 50 Appendix 50/63 Documentations on drivers and software Hilscher Gesellschaft für Systemautomation mbH: User manual, PC card CIFX M223090AE-RE\F Real-Time Ethernet, Hardware description and installation, DOC190704UMxxEN, English, 2020-12 Hilscher Gesellschaft für Systemautomation mbH: Operating instruction manual, cifX Device Driver, Installation and Operation for Windows XP/ Vista/7/8/10, DOC060601OIxxEN, English, 2019-01 Hilscher Gesellschaft für Systemautomation mbH: Operating instruction...
-
Page 51: Conventions In This Manual
Indicates a hazardous situation, which if not avoided, may result in minor or moderate Injury. Indicates a property damage message. Table 48: Signal words CIFX M223090AE-RE\F | Hardware description and installation © Hilscher 2019 - 2022 DOC190704UM06EN | Revision 6 | English | 2022-02 | Released | Public... -
Page 52: Legal Notes
The manual delivered with the product shall apply. Under no circumstances shall Hilscher Gesellschaft für Systemautomation mbH be liable for direct, indirect, ancillary or subsequent damage, or for any loss of income, which may arise after use of the information contained herein. - Page 53 Appendix 53/63 Liability disclaimer The hardware and/or software was created and tested by Hilscher Gesellschaft für Systemautomation mbH with utmost care and is made available as is. No warranty can be assumed for the performance or flawlessness of the hardware and/or software under all application conditions and scenarios and the work results achieved by the user when using the hardware and/or software.
- Page 54 Additional guarantees Although the hardware and software was developed and tested in-depth with greatest care, Hilscher Gesellschaft für Systemautomation mbH shall not assume any guarantee for the suitability thereof for any purpose that was not confirmed in writing. No guarantee can be granted whereby the...
- Page 55 The customer hereby expressly acknowledges that this document contains trade secrets, information protected by copyright and other patent and ownership privileges as well as any related rights of Hilscher Gesellschaft für Systemautomation mbH. The customer agrees to treat as confidential all of the information made available to customer by Hilscher Gesellschaft für...
-
Page 56: Registered Trademarks
(company names or trademarks) of the corresponding owner and may be protected under trademark or patent law. CIFX M223090AE-RE\F | Hardware description and installation © Hilscher 2019 - 2022 DOC190704UM06EN | Revision 6 | English | 2022-02 | Released | Public... - Page 57 Figure 8: Dimensions CIFX M223090AE (revision 4) ............47 Figure 9: Dimensions AIFX-V2-RE (revision 2) ..............48 CIFX M223090AE-RE\F | Hardware description and installation © Hilscher 2019 - 2022 DOC190704UM06EN | Revision 6 | English | 2022-02 | Released | Public...
- Page 58 Pin assignment for cable connector Ethernet X1, AIFX-V2-RE......Table 39: Pin assignment PCI Express M.2 bus X201, CIFX M223090AE ......CIFX M223090AE-RE\F | Hardware description and installation © Hilscher 2019 - 2022 DOC190704UM06EN | Revision 6 | English | 2022-02 | Released | Public...
- Page 59 Technical data Open Modbus/TCP................. Table 46: Technical data PROFINET IO-Device ..............Table 47: Signs........................Table 48: Signal words ......................CIFX M223090AE-RE\F | Hardware description and installation © Hilscher 2019 - 2022 DOC190704UM06EN | Revision 6 | English | 2022-02 | Released | Public...
-
Page 60: Glossary
Communication InterFace based on netX CIFX M223090AE Communication interface in M.2 format with A+E key from Hilscher on the basis of the communication controller netX 90 Discovery and basic configuration protocol: Protocol for identifying and configuring devices, which is defined within the PROFINET... - Page 61 Master Type of device that initiates and controls the communication on the netX networX on chip, Hilscher network communication controller. High integrated network controller with optimized system architecture for communication and maximum data transfer. Open Modbus/TCP Communication system for Industrial Ethernet designed and...
- Page 62 SYNC Sychronisation Cycle of the Master CIFX M223090AE-RE\F | Hardware description and installation © Hilscher 2019 - 2022 DOC190704UM06EN | Revision 6 | English | 2022-02 | Released | Public...
-
Page 63: Contacts
Hilscher Korea Inc. E-mail: hotline@hilscher.com 13494, Seongnam, Gyeonggi Phone: +82 (0) 31-739-8361 SUBSIDIARIES E-mail: info@hilscher.kr China Support Hilscher Systemautomation (Shanghai) Co. Ltd. Phone: +82 (0) 31-739-8363 200010 Shanghai E-mail: kr.support@hilscher.com Phone: +86 (0) 21-6355-5161 E-mail: info@hilscher.cn Austria Support Hilscher Austria GmbH...
