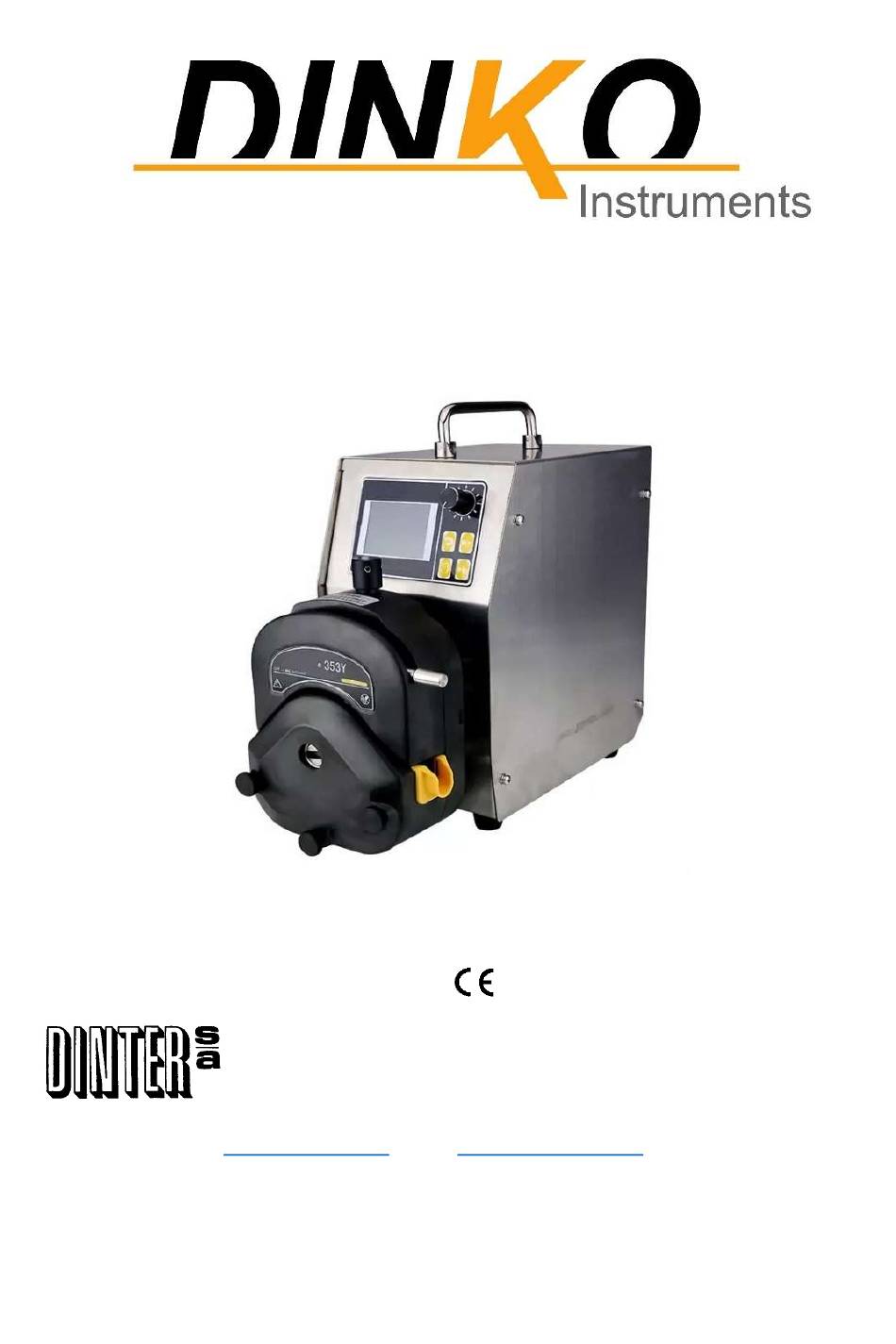

- Page 1 HIGH FLOW PERISTALTIC PUMP Manual May 2023 c/ Encarnació , 123-125. Tel. +34 93 284 69 62 e-mail: dinter@dinko.es www.dinko.es 08024-Barcelona...
-
Page 2: Table Of Contents
Content 1- Security ································································· 3 2- Get to know the peristaltic pump ·································· 4 3- Pump head and tube ················································· 5 4- Specifications ·························································· 7 5- How to use ······························································ 8 6- Menu configuration ················································ 13 7- Maintenance ························································· 16 8- Troubleshooting ·····················································... -
Page 3: 1- Security
1) Security Please read this manual carefully before using it! ●To avoid fire or electric shock, please do not use the pump outdoors, or in a humid environment. ●To reduce the risk of electric shock and the possibility of damage to the equipment, please use a standard 220 V AC plug with a ground connection. -
Page 4: 2- Get To Know The Peristaltic Pump
2 ) Get to know the peristaltic pump. The 353 series peristaltic pump is a smart pump that combines flow, timing and fill dosing functions. It can be operated by buttons, or controlled by an external signal or foot switch. It has a full speed emptying function and the suction angle etc can be adjusted. -
Page 5: 3- Pump Head And Tube
3 ) Head and tube of the pump. - Page 6 Reference flows ( unit : L/min) Tube type Silicone A-60-F Tube number Max. flow 13.2 11.8 Flow description 1. The flow is measured at room temperature of 23°C and without pressure at the inlet and outlet, and when clean water is pumped.
-
Page 7: 4- Specifications
4 ) Specifications 1) Specifications. Item/Code 353Y /1.9754.00 Speed range 30 - 600rpm Maximum speed 600rpm 1rpm Speed resolution Maximum suction 0.17MPa 0.17MPa Outlet pressure membrane keyboard Control mode Manual control, automation, timing, filling, external Principal function control External control 0-5V, 0-10V, 4-20mA, RS485 Display Power and current... -
Page 8: 5- How To Use
5 ) How to use 1) Install the pump head . Align the pump head output shaft with the groove in the rubber coupling and rotate it to align the pump head locating hole with the drive locating pin Tighten the two screws separately. Note: 1. - Page 9 Observation: 1. The pump head is installed on the motor at the factory. Only remove the pump head when cleaning or replacing the pump head. Please follow the steps above when installing. 3) Use the bomb Turn on the power → welcome interface → standby operation. The factory setting is the basic common "flow"...
- Page 10 Full Speed - Full speed emptying, press to highest pump speed, press again to restore, press start-stop button to stop, use as a cleaning tube in the app. Remark: only “Knob” is valid in the external control standby state, and the other function buttons are invalid (entering the setup menu through the “Knob”, the external control enable is disabled for interface button to take effect).
- Page 11 Internal control mode: F low (display speed and flow on the same screen) Timing (reserve switch) Filling (automatic operation or accepting the signal from the infrared switch to fill or stop filling without bottle. The wiring method is the same as that of the foot switch) External control: accept analogue set speed, variable direction, start and stop, pin definitions See Figure 2...
- Page 12 d) Configuration of parameters: Pump head model: Please choose the correct head, otherwise it will affect the flow accuracy. Tube diameter: This is directly related to the flow rate. External control: button control is set to "off" and external control is set to "on". Machine number: for 485 communication, pump identification Foot Switch: There are two working modes to choose from in flow mode.
-
Page 13: 6- Menu Configuration
6) Menu setting On the initial screen, pressing the Knob for 3 seconds will enter this menu Turning the Knob we select 1. Mode, to determine which work mode we are going to use 1-MODE 2-PARAMETER Turning the Knob we select 2. Parameter, to configure the different parameters of the pump. - Page 14 3-TIMING Turning the Knob we select 3. Timing, to configure the different parameters to work in Timing mode This mode is used to program timed dispenses with a pause in between. SPEED If we select this mode it is to work in Manual mode, the pump will work manually when we press the Start button.
- Page 15 The pump is calibrated at the factory, correctly indicating the type of tube, the pump already knows how long it has to work to dose the desired volume or it will indicate the volume that it will dose in the time that we establish.
-
Page 16: 7- Maintenance
7) Maintenance 1) Before each start of the peristaltic pump, carefully check whether the tubing is damaged. Before the machine stops working, please pump water to clean the tube. In order to prolong the life of the tube, especially after running at high speed (100rpm or more) for 8 hours, the tube should be pulled out (suction end) by 80 to 100mm to prevent the tube from dislodging. -
Page 17: 8- Troubleshooting
8) Troubleshooting Item Problem Inspection Treatment Observation Non-display Safe built into the Plug on or not Check the line screen socket Check settings Control correct or incorrect and reboot Pump Head Top Press Lump Loose fit Squeezer Tube Too Tight or Not Display normal, Tube size suitable for pump head or Choose the... -
Page 18: 9- Packing List
9) Packing list Article Name Unit Amount Observation smart drive Pump head 353 Power cord Foot switch 15 pin male connector 15 pin female connector silicone tube meter Manual Warranty card... - Page 19 10) Annexes Annex 1 Control mode of BT-CA series Manual Foot switch (pulse or lever for option) Speed External signal (0-5V, 0-10V, 4-20Ma, Modbus) Key Start/stop to start timing program have been set Mode Timing Start/stop by on/off signal of foot switch etc. Key Start/stop to start timing program have been set Filling Start/stop by on/off signal of infrared, foot switch etc.
- Page 20 Annex 2 Definition of external control terminal Input Terminal Definition 1 ) ON/OFF is the start and stop control, CW/CCW is the positive and negative control. For the external control switch, short circuit or hung to control. 2 ) GND is ground, which is the ground of the external control input signal. 3 ) When the pump is operated using the foot switch or switch value, Please short the terminal ⑨...
- Page 21 Annex 3 DB15 External wiring mode 2 : 0 ~10 V External control mode 1 : 0 ~ 5V External control External control 3 : 4~20mA...
- Page 22 Annex 3 DB15 External wiring external control 4 : Modbus - rtu foot switch Infrared switch...
- Page 23 1. Use external control mode, 1-4 to enable external control and select the corresponding external control mode. 2. When using a switch such as foot switch or infrared, it is necessary to make sure that the external control is turned off. 3.
- Page 24 Annex 4 Modbus parameter Article Content Communication data Rtu standard communication protocol, baud rate 9600, 8 data bits, 1 stop bit, format including parity check. command code done Modbus- rtu uses command code 02,04,06,15, starting addresses are all 999. Command 02 bit address 999 is start/stop signal, 1 for start, 0 for stop. 1000 is 02 discrete signal input CW/CCW signal, 1 for CW, 0 for CCW.
- Page 25 OTHER DINKO APPARATUS - Blenders-Homogenizers - Colorimeters - Conductivity Meters - Dosing Pumps - Extractor for meat analysis - Heating Plates - Infrared Stoves - Kits for water analysis - Magnetic Stirrers - Metallic block heaters - Microscopes - Nephelometers - Orbital Shakers - Oximeters - Peristaltic Pumps...
