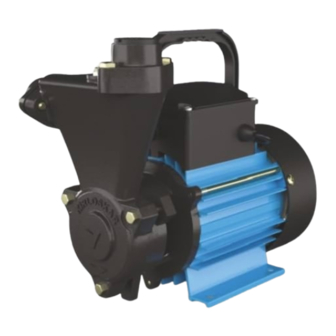

Mini range pump

Advertisement

Quick Links

KIRLOSKAR PUMPS
Mini Range Pump
Installation, Operation and Maintenance Manual
Bathroom
Showers
STRENGTHENED BY
Gardening
99.9%
PURE EC GRADE
COPPER
WINDING WIRES
Pressurised Washing of
Vehicles
JALSENA
JALHASTI
MINI 30C
MINI 40C
CM-0073
KIRLOSKAR BROTHERS LIMITED
Established 1888
A Kirloskar Group Company

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GOLD JALSENA and is the answer not in the manual?

Questions and answers

Summary of Contents for KIRLOSKAR GOLD JALSENA

  • Page 1 Mini Range Pump Installation, Operation and Maintenance Manual Bathroom Showers STRENGTHENED BY Gardening 99.9% PURE EC GRADE COPPER WINDING WIRES Pressurised Washing of Vehicles JALSENA JALHASTI MINI 30C MINI 40C CM-0073 KIRLOSKAR BROTHERS LIMITED Established 1888 A Kirloskar Group Company...
  • Page 2 Congratulations. on your acquiring one of the finest pumps in the country. The KIRLOSKAR pump series in your possession is scientifically designed by using the state of art design software (CREO,ANSYS,CFD) for better aesthetics, performance, optimum material Contents etc. These pumps are reliable, robust, compact in size.
  • Page 3: Table Of Contents

    Content Page No. Description S. No. Features Installation & Use Precautions Operation Maintenance Caution & Care Detailed Installation Procedure Exploded View of Self Priming Pump Parts List Trouble Shooting Warranty Conditions E-Warranty Registration Process...
  • Page 4: Features

    Features TEFC (Totally Enclosed Fan-cooled) Motor ü Capacitor start and run motor (Single Phase). ü ‘F’ Class of insulation. ü Specially processed steel shaft for corrosion resistance and durability ü Fitted with Thermal Overload Protector (TOP) for safety of motor. ü...
  • Page 5: Detailed Installation Procedure

    Detailed Installation Procedure Unboxing and E-warranty Registration On opening the box, a Product Manual is available Ÿ inside the box. Please go through the manual thoroughly before proceeding for installation. Warranty card is included in the manual on the Ÿ back cover.
  • Page 6 Suction Flange. Delivery Flange. Brass nut for water filling. Electric cable for power connection. Suction Flange Pipe Nipple Connection Take the hose nipple and wrap teflon tape on the threaded portion to avoid any leakages through threads. fit the hose nipple on the suction flange. Suction Pipe Connection Fix the suction pipe on the hose nipple of the pump inlet It is advisable to slightly heat the hose...
  • Page 7 Delivery Flange, Gasket And Bend Connection Remove the nuts from the pump outlet and take out delivery flange and Rubber Gasket. Cut the centre portion of the gasket with the help of scissor as shown in picture. Fit the cut rubber gasket and delivery flange on 1&3 the pump and tighten properly.
  • Page 8 Priming of Pump First time the pump is required to be Primed, which means water is to be filled in the delivery casing After fitting of suction and delivery pipes. 1. Remove the brass nut with the help of screw driver from the delivery casing as shown.
  • Page 9: Exploded View Of Self Priming Pump

    Exploded View of Self Priming Pump...
  • Page 10: Parts List

    Parts List Part Description Part No. Delivery Casing Impeller Rotor (motor) Rotor Shaft Mechanical Seal 296.1 Mounting Casing Tie Rod Delivery Flange Suction Flange 490.1 Packing for Suction Flange Packing for Delivery Flange 513.1 Hex head Bolt for Delivery Flange 580.1 Hex head Bolt for Suction Flange Priming Plug...
  • Page 11: Trouble Shooting

    Trouble Shooting...
  • Page 12: Warranty Conditions

    Email: marketing@kbl.co.in Website: www.kirloskarpumps.com CIN No.: L29113PN1920PLC000670 Works : S. F. No. 324/1, Moperipalayam Road, Thattampudur, Kaniyur Village, Coimbatore, Tamil Nadu - 641659 Other Product range manufactured by Kirloskar Brothers Limited. Pump Series Construction Feature Drive Unit Power Rating KDS+/++...
  • Page 13: Warranty Registration Process

    Steps for E-Warranty Registration Newly Purchased Pumps KIRLOSKAR BROTHERS LIMITED Established 1888 A Kirloskar Group Company...
  • Page 15 Cooled KOSi Single Phase Single Phase Three Phase 10 CM & 15 CM Borewell Openwell Submersible Pump Monobloc Pump Openwell Submersible Pump Submersible Pumps ALWAYS BUY PUMPS WITH LOGOS ON PACKAGING KIRLOSKAR BROTHERS LIMITED Established 1888 A Kirloskar Group Company...
  • Page 16 Warranty Certificate This product is warranted against manufacturing defects and workmanship under normal use and service for the period of 24 months from the date of invoice (or) 30 months from the date of manufacturing, whichever is earlier. Company to repair or replace the product at its discretion or any part thereof, for which is originally defective in material or workmanship, provided the product or its parts are returned to the point of purchase (To the dealer from where the product/ parts were purchased) on freight paid...
