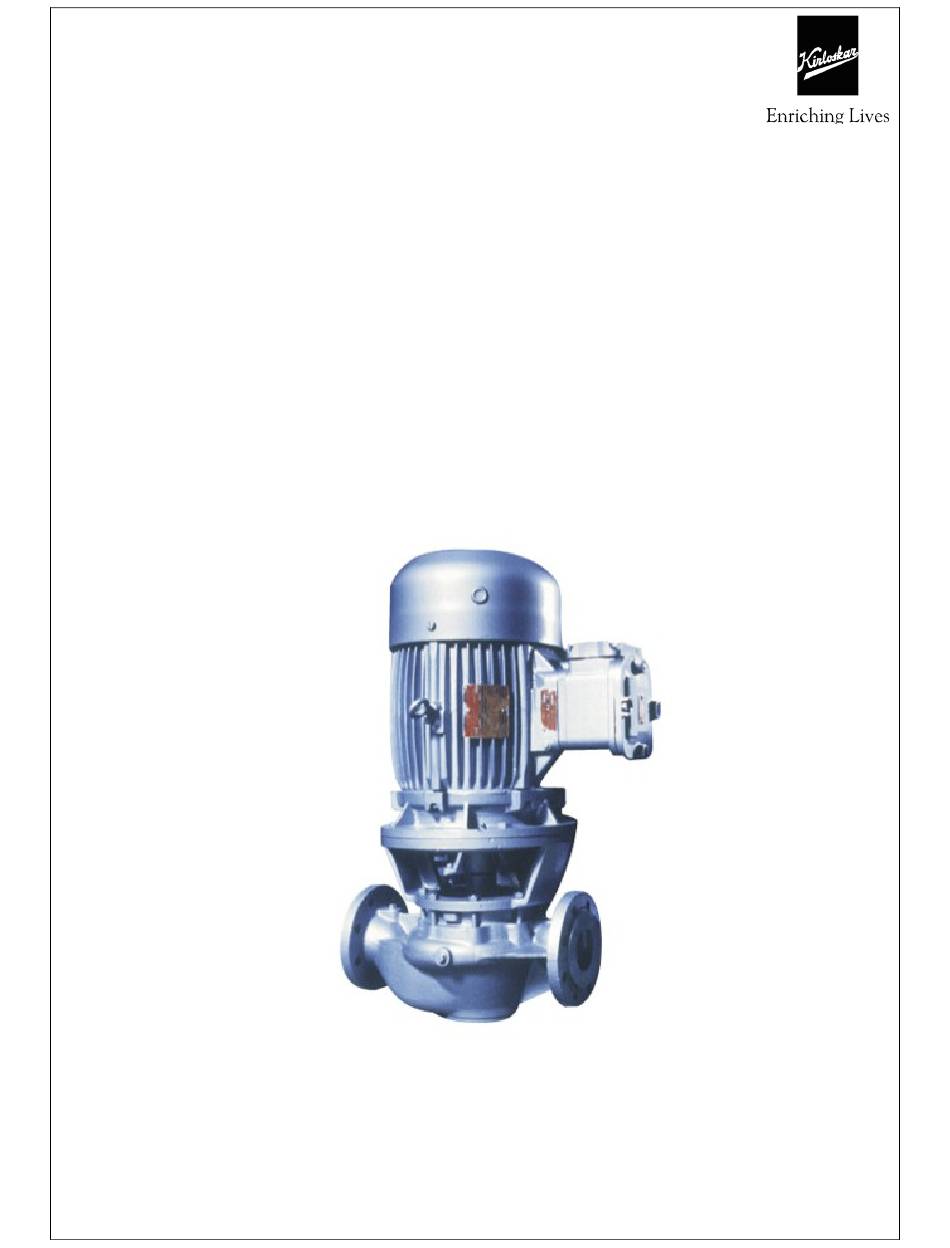

- Page 1 INSTRUCTIONS ON INSTALLATION, OPERATION AND MAINTENANCE FOR KIRLOSKAR PUMPS TYPE “DB-IN” KIRLOSKAR BROTHERS LIMITED REGISTERED OFFICE YAMUNA, SURVEY NO. 98/(3-7), BANER, PUNE 411 045 IOM_DBIN_MAR_00 Page 1 of 22...
-
Page 2: Warranty
KIRLOSKAR BROTHERS LIMITED REGISTERED OFFICE YAMUNA, SURVEY NO. 98/(3-7), BANER, PUNE 411 045 WARRANTY We warrant that the pump supplied from us is free from defective material and faulty workmanship. This warranty holds good for a period of 12 months from the date of commissioning the equipment or 18 months from the date of dispatch from our factory, whichever is earlier. -
Page 3: Table Of Contents
CONTENTS Sr. no Description Pg. no. General Information & Safety Instructions Transport Handling and Storage General Description Assembly and Installation Commissioning and Operation Maintenance and Service Additional details Cross sectional drawing Part list Exploded Pump Diagram Showing Typical Pump. Main features of DBIN standardized close coupled pumps. Please furnish complete nameplate details, name of parts, part nos. -
Page 4: General Information & Safety Instructions
1. General Information and Safety Instructions The products supplied by Kirloskar Brothers Ltd. have been designed with safety in mind. Where hazards cannot be eliminated, the risk has been minimized by the use of guards and other design features. Some hazards cannot be guarded against and the instructions below MUST BE COMPLIED WITH for safe operation. -
Page 5: Transport Handling And Storage
1.10 Within the manual, safety instructions are marked with safety symbols. Hazard This symbol refers to general mechanical aspects of safety. Hazard This symbol refers to electrical safety. This symbol gives warning of a hazard to the pump itself, which ATTENTION in turn, could cause a risk to personal safety. - Page 6 INSLIFT1.WMF Pump weight is shown on the Pump general arrangement drawing. Storage 2.3.1 Temporary Storage for up to Six Weeks If the pump is not to be used immediately, it should be stored carefully in a horizontal position, in a sheltered, dry location. Additional rust preventative should be applied to all unpainted carbon steel or cast iron parts, and should not be removed until final installation.
- Page 7 2.4.3 Exposed or Extreme Conditions Storage For exposed storage or extreme variants in atmospheric or environmental conditions, please refer to Kirloskar Brothers Ltd. for special storage instructions to suit the conditions applicable. IOM_DBIN_MAR_00 Page 7 of 22...
-
Page 8: General Description
3. General Description The KIRLOSKAR BROTHERS LTD. range of DBIN f Pumps are centrifugal pumps that comply with Pump Standard DIN24255. The mechanical assembly comprises an electric motor fitted with an extended shaft to carry a double shrouded type impeller. This is connected by a support frame to an in line volute casing fitted with wear ring(s). - Page 9 Pump Preparation Abrasion & Entrapment Hazard Do NOT touch any moving or rotating parts. Guards are provided to prevent access to these parts, where they have been removed for maintenance they MUST be replaced before operating the equipment. Remove packaging but leave the flange covers in place, check that impeller rotates freely by hand by turning the shaft.
- Page 10 Discharge Pipework The bore of the discharge pipe should be sized to ensure a flow velocity of 2.5 to 3 m/s is not exceeded. This is usually one size larger than the discharge branch. Pipework should be as short and straight as possible to reduce friction head loss. A non-return valve is usually fitted to prevent the pump from excessive back pressure and reverse rotation and a discharge valve is usually fitted to regulate the flow and allow for inspection and maintenance on the pump.
-
Page 11: Commissioning And Operation
5. Commissioning and Operation Commissioning Checks These checks must be done after first installation and after pump maintenance that required removal of the rotating assembly. Abrasion and Entrapment Hazard Do NOT touch any moving or rotating parts. Guards are provided to prevent access to these parts, where they have been removed for maintenance they MUST be replaced before operating the equipment. - Page 12 Hazardous Noise In addition to local or site regulations for noise protection, Kirloskar Brothers Ltd. recommend the use of Personal Ear Protection equipment in all enclosed pump rooms and particularly those containing diesel engines. Care must be taken to ensure that any audible alarm or warning signal can still be heard with ear defenders worn.
-
Page 13: Maintenance And Service
6. Maintenance and Service General Introduction Kirloskar Brothers Ltd. DBIN pumps will provide many years of trouble free service when maintained in accordance with these instructions. In the event of failure of the pump it is recommended that Kirloskar Brothers Ltd. Service Department are called to investigate and carry out repairs. - Page 14 Be cautious, if other supplier's components have been substituted for genuine Kirloskar Brothers Ltd.parts, these may then contain hazardous materials. Hazardous Gases, Mists, Sprays and Leaks Be aware of the hazards relating to the pumped fluid, especially the danger from inhalation of noxious and toxic gases, skin and eye contact or penetration.
- Page 15 6.3.1 General If the pump is maintained and serviced regularly, breakdowns that require the pump to be dismantled; should not occur. If a fault occurs, the cause should be identified before dismantling. Refer to Section 7 - Faults and Remedial Action. Refer to Section 8 - for the Pump Section Drawing for your pump.
- Page 16 Kirloskar Brothers Ltd. Service Engineer or an authorized Kirloskar Brothers Ltd. dealer/agent. To dismantle pump, proceed in the following sequence: Drain liquid from the casing, remove plug. Unscrew nuts on volute casing studs. Motor, complete with supporting frame (24800) and casing cover (22000), can now lifted clear of volute casing (11800).
- Page 17 Pump Dia. Dia. 1 Size Tolerance 0.1mm 40/13 69.7 40/16 50/13 50/16 79.7 50/20 65/13 65/16 94.7 65/20 80/13 80/16 114.7 80/20 80/26 100/16 129.6 6.3.4 Reassembly Ensure that all parts to be fitted are clean and free from burrs, with screw threads and abutting faces clear and free from damage.
- Page 18 Locate impeller key (32000) into shaft key way. Relocate impeller (15100) on shaft (18800). Refit impeller lock washer (41000) and screw on impeller nut (33000) and carefully tighten. Ensure impeller rotates freely by hand. If not investigate and rectify. Relocate casing cover (22000) into casing (11800), using casing studs, ensuring that gasket is seated correctly.
-
Page 19: Additional Details
7. Additional details 7.1 Cross section drawing: IOM_DBIN_MAR_00 Page 19 of 22... -
Page 20: Part List
7.2 Part list PART NO. DESCRIPTION MATERIAL SPECIFICATION 11800 PUMP CASING CI IS 210 GR FG 260 15100* IMPELLER CI IS 210 GR FG 260 WEAR RINF FOR SUCTION 19000* CI IS 210 GR FG 260 SIDE CASING COVER FOR 22000 CI IS 210 GR FG 260 MECHANICAL SEAL... -
Page 21: Exploded Pump Diagram Showing Typical Pump
7.3 Exploded Pump Diagram Showing Typical Pump. IOM_DBIN_MAR_00 Page 21 of 22... -
Page 22: Main Features Of Dbin Standardized Close Coupled Pumps
7.4 MAIN FEATURES OF DBIN STANDARDIZED CLOSE COUPLED PUMPS . 1) Cast iron casing. 2) Back-pull-out facility permits removal of motor, support frame and impeller without disturbance of casing or suction and delivery pipework. 3) Stainless steel shaft sleeve. 4) Six stub shafts cover entire range. 5) Standard motor facilities ease replacement.
