Assembly Instructions

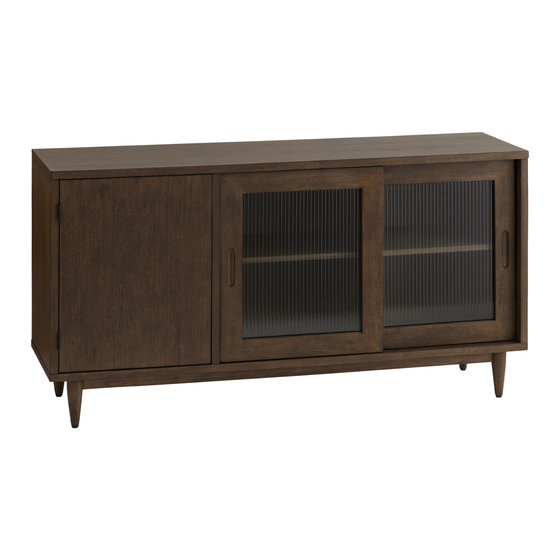

Kellen Fluted Glass Sideboard
SKU 626638
Thank you for your purchase. If you have any questions pertaining to the assembly of this
furniture piece, please contact the nearest World Market store. If you are not near a store,
please call our customer service call center toll free at 877-967-5362 for assistance.
ALL PRODUCTS SOLD AT WORLD MARKET ARE NOT
FOR COMMERCIAL USE AND ARE INTENDED FOR
RESIDENTIAL USE ONLY
2023.08.07
PAGE 1
Advertisement
Table of Contents
Related Manuals for World Market Kellen 626638
Summary of Contents for World Market Kellen 626638
- Page 1 Thank you for your purchase. If you have any questions pertaining to the assembly of this furniture piece, please contact the nearest World Market store. If you are not near a store, please call our customer service call center toll free at 877-967-5362 for assistance.
-
Page 2: Component List
Component List Q.TY LABEL PICTURE DESCRIPTION Top Frame FRONT Bottom Frame FRONT Left Side Frame FRONT Right Side Frame FRONT Left Divider Frame FRONT Right Divider Frame FRONT Support Rail Left Adjustable Shelf FRONT PAGE 2... - Page 3 Component List Q.TY LABEL PICTURE DESCRIPTION FRONT Right Adjustable Shelf Left Back Panel Mid Back Panel Right Back Panel Left Door FRONT Left Sliding Door (Tempered Glass) FRONT Right Sliding Door (Tempered Glass) FRONT Back Lid PAGE 3...
- Page 4 Component List Q.TY LABEL PICTURE DESCRIPTION Cam lock Ø15 mm Cam Screw Short Connecting Screw M7 x 50 mm Long Connecting Screw M7 x 70 mm Long Pan head Screw M4 x 60 mm Shelf Pin Ø6 Short Pan head Screw M3.5 x 15 mm Medium Flat Washer Ø6 x Ø19 x T1 mm...
- Page 5 Component List Q.TY LABEL PICTURE DESCRIPTION Allen Key 4 x 110 x 30 mm Wrench 13 mm Triangle Phillips Screwdriver (Not Included) PAGE 5...
-
Page 6: Assembly Preparation
Assemble on a clean non-marring surface (such as the product's packing foam). Do not discard any packaging until the product has been fully assembled. In case of missing parts, please contact your nearest World Market store or call our customer service call center at call 1-877-967-5362. -
Page 7: Assembly Steps
Assembly Steps Step 1 (H-2) Cam Screw x 10 (T-4) Phillips Screwdriver Step 1.1: FRONT OF PANELS Step 1.2: Make sure Cam Screws are tightened fully as shown IMPORTANT: Please make note of the different hardware sizes and ensure you are using the correct size hardware (bolts, screws, and washers) for each step. - Page 8 Step 2 (T-1) Allen key (H-4) Long Connecting Screw x 4 FRONT Install and secure Bottom Frame (B) to Left Divider Frame (D-1) and Right Divider Frame (D-2) using Long Connecting Screws (H-4) Engage all screws before fully tightening using Allen Key (T-1). Step 3.1 FRONT Note direction of...
- Page 9 Step 3.2 FRONT Attach Right Side Frame (C-2) to the Top Frame/ Support Rail assembly as shown. Note: A second person should hold the opposite side while performing this assembly step. Slightly separate Support Rail (E) from the Top Frame (A) (if needed) to get the Cam Screws (H-2) and dowels to insert. Step 3.3 (H-1) Cam Lock x 6 (T-1) Allen key...
- Page 10 Step 4 (H-1) Cam Lock x 4 (T-1) Allen key (T-3) Triangle (H-3) Short Connecting Screw x 6 Follow arrow direction 90° Triangle FRONT Position the Bottom Frame (B) assembly from step 2 to Left/Right Side Frames (C-1/C-2) while, at the same time, ensuring the Cam Screws (H-2) in the Top Frame (A) engage with both Left/Right Divider Frames (D-1/D-2).
- Page 11 Step 6 (T-1) Allen key (H-9) Connector bolt x 3 (H-10) Allen bolt x 3 H-10 (H-11) Large Flat Washer x 3 H-11 FRONT Position Lids (L) to Left/Mid/Right Back Panels (G-1/G-2/G-3). Secure with Connector Bolts (H-9), Large Flat Washers (H-11), an Allen Bolts (H-10) using provided Allen Key (T-1), stacking the hardware through Back Panels in the order as shown.
- Page 12 Step 8 Using a second person to assist you, carefully turn the assembled unit upright as shown. Position and secure Left Door (I) to Left Side Frame (C-1) in the correct placements and secure to assembly by inserting pre-installed male hinges into female hinges as shown.
- Page 13 Step 10 Step 10.2b Step 10.2a Step 10.1 NOTE: There are adjustment screws on the lower wheels as illustrated above. Turn the set screw clockwise to adjust the wheels INWARD which will decrease the gap between the bottom track and the bottom of the door. Adjust the set screw counter-clockwise to adjust the wheels OUTWARD which will increase the gap between the bottom track and the bottom of the door.
-
Page 14: Right Door
Step 11 ADJUSTABLE LEVELER NOTE: Levelers can be used for adjustment if needed. If RIGHT DOOR appears higher than Adjust the FRONT LEFT leveler until the LEFT DOOR doors are even. LEFT RIGHT DOOR DOOR Adjust the FRONT RIGHT leveler If LEFT DOOR appears higher than the RIGHT DOOR until doors are even. - Page 15 Anti-Tip Measures WARNING Furniture tip overs can result in death or serious injuries. To reduce the likelihood of tip over, this product should be used with the enclosed Anti-Tip Kit. This Anti-Tip Kit is only a deterrent. It is not a substitute for proper adult supervision. Manufacturer and retailer assume no liability for improper installation or excess loads placed on screws, brackets, or straps.
-
Page 16: Care And Maintenance
• Place heaviest items in the lowest drawers. Not intended for clothing storage use. All products sold at World Market are not for commercial use and are intended for residential use only. Care & Maintenance DO NOT put hot items directly on furniture surface. - Page 17 Customer Service Call Center, Toll Free at 877-967-5362. For valid warranty claims, World Market will repair or replace the product, or offer a full or par�al credit, in the sole discre�on of World Market. This LIMITED ONE-YEAR WARRANTY gives you specific legal rights and you may also have other rights which vary from state to state.
