World Market Jagger 626729 Assembly Instructions Manual

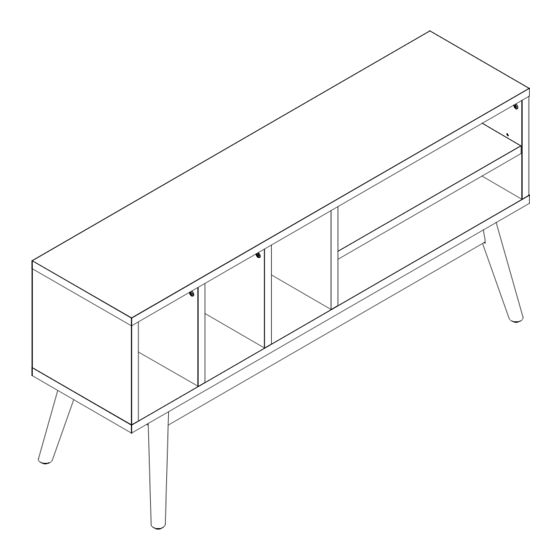

Record media cabinet 60"
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
R
Assembly Instructions
Jagger Record Media Cabinet 60''
SKU 626729
Thank you for your purchase. If you have any questions pertaining to the assembly of this
furniture piece, please contact the nearest World Market store. If you are not near a store,
please call our customer service call center toll free at 877-967-5362 for assistance.
ALL PRODUCTS SOLD AT WORLD MARKET ARE NOT
FOR COMMERCIAL USE AND ARE INTENDED FOR
RESIDENTIAL USE ONLY
2023.08.08
PAGE 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Jagger 626729 and is the answer not in the manual?

Questions and answers

Related Manuals for World Market Jagger 626729

Summary of Contents for World Market Jagger 626729

  • Page 1 Thank you for your purchase. If you have any questions pertaining to the assembly of this furniture piece, please contact the nearest World Market store. If you are not near a store, please call our customer service call center toll free at 877-967-5362 for assistance.

  • Page 2: Component List

    Component List Q.TY LABEL PICTURE DESCRIPTION Top Frame FRONT Bottom Frame FRONT Left Side Frame Right Side Frame Left Divider Frame Mid Divider Frame Adjustable Shelf FRONT Back Panel FRONT PAGE 2...

  • Page 3: Hardware List

    Hardware List Q.TY LABEL PICTURE DESCRIPTION Cam lock Ø15 mm Cam Screw Connecting Screw M7 x 50 mm Pan head Screw M3.5 x 25 mm Shelf Pin Ø6 Connector Bolt M6 x 10 mm (inside) Allen Bolt M6 x 20 mm Large Flat Washer Ø10 x Ø20 x T2 mm Small Flat Washer...

  • Page 4: Tool List

    Tool List LABEL PICTURE DESCRIPTION Allen Key 4 x 110 x 30 mm Wrench 13 mm Triangle Phillips Screwdriver (Not Included) PAGE 4...

  • Page 5: Assembly Preparation

    Assemble on a clean non-marring surface (such as the product's packing foam). Do not discard any packaging until the product has been fully assembled. In case of missing parts, please contact your nearest World Market store or call our customer service call center at call 1-877-967-5362.

  • Page 6: Assembly Steps

    Assembly Steps Step 1 (T-4) Phillips Screwdriver (H-2) Cam Screw x 10 FRONT IMPORTANT: Please make note of the different hardware sizes and ensure you are using the correct size hardware (bolts, screws, and washers) for each step. Make sure Cam Screws are tightened fully as shown Place Top Frame (A) upside down onto a padded, non-marring surface.
  • Page 7 Step 3 (H-3) Connecting Screw x 10 (T-3) Triangle (T-1) Allen key Triangle 90° FRONT Using a second person to assist you, carefully position the Bottom Frame (B) with the assembly by inserting the dowels in Left/Right Side Frames (C-1/C-2) and Mid/Left Divider Frame (D-1/D-2) into their receiving holes in the Bottom Frame (B).
  • Page 8 Step 5 (H-4) Pan Head Screw x 32 (T-3) Triangle (T-4) Phillips Screwdriver Triangle 90° FRONT Check that the cabinet is square (90 degrees) using Triangle (T-3). Once square, position Back Panel (F) onto assembly as shown. Make sure panel is oriented correctly (Connecting Bolt from previous step should point toward the top).
  • Page 9 Step 7 (H-5) Shelf Pin x 4 Step 7.1 Step 7.2 FRONT Step 7.1: Using a second person to assist you, carefully turn assembly upright. Insert Shelf Pins (H-5) into the desired hole locations on Right Side Frame (C-2) and Mid Divider Frames (D-2) Step 7.2: Turn Adjustable Shelf (E) diagonally and carefully insert into position as shown, making sure they rest evenly on each Shelf Pin (H-5).
  • Page 10 Anti-Tip Measures WARNING Furniture tip overs can result in death or serious injuries. To reduce the likelihood of tip over, this product should be used with the enclosed Anti-Tip Kit. This Anti-Tip Kit is only a deterrent. It is not a substitute for proper adult supervision. Manufacturer and retailer assume no liability for improper installation or excess loads placed on screws, brackets, or straps.
  • Page 11 DO NOT EXCEED RECOMMENDED LOAD. Use with products heavier than the maximum sizes and weights indicated may result instability causing possible injury. Do not allow children under 10 year to move unit. Manufactured for: World Market SKU#: 626729 DO NOT REMOVE THIS LABEL...

  • Page 12: Care And Maintenance

    Place heaviest items in the lowest drawers. Not intended for clothing storage use. All products sold at World Market are not for commercial use and are intended for residential use only. Care & Maintenance DO NOT put hot items directly on furniture surface.
  • Page 13 Customer Service Call Center, Toll Free at 877-967-5362. For valid warranty claims, World Market will repair or replace the product, or offer a full or par�al credit, in the sole discre�on of World Market. This LIMITED ONE-YEAR WARRANTY gives you specific legal rights and you may also have other rights which vary from state to state.
