R
Assembly Instructions

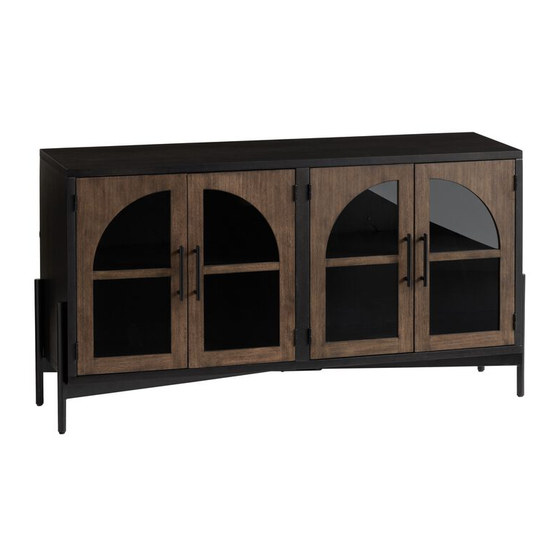

Amira Sideboard
SKU - 622520
THANK YOU FOR YOUR PURCHASE. IF YOU HAVE ANY QUESTIONS
PERTAINING TO THE ASSEMBLY OF THIS FURNITURE PIECE, PLEASE CONTACT
THE NEAREST WORLD MARKET STORE
IF YOU ARE NOT NEAR A STORE PLEASE CALL OUR CUSTOMER SERVICE CALL
CENTER TOLL FREE AT 877-967-5362 FOR ASSISTANCE.
All products sold at World Market are not for commercial use and are intended for residential use only.
Page 1
2023.03.27
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for World Market Amira
Summary of Contents for World Market Amira
- Page 1 IF YOU ARE NOT NEAR A STORE PLEASE CALL OUR CUSTOMER SERVICE CALL CENTER TOLL FREE AT 877-967-5362 FOR ASSISTANCE. All products sold at World Market are not for commercial use and are intended for residential use only. Page 1...
-
Page 2: Component List
Component List Q.TY LABEL PICTURE DESCRIPTION Top Frame Back Support Adjustable Shelf Bottom Frame Base Frame 1 Base Frame 2 Left Side Frame Right Side Frame Page 2... - Page 3 Component List Q.TY LABEL PICTURE DESCRIPTION Divider Frame Left Door A (Tempered Glass) Right Door A (Tempered Glass) Left Door B (Tempered Glass) Right Door B (Tempered Glass) Handle Left Back Panel Right Back Panel Page 3...
-
Page 4: Hardware List
Hardware List Q.TY LABEL PICTURE DESCRIPTION Cam lock Ø15 mm Cam Screw Connecting Screw M7 x 50 mm Shelf Pin Ø6 Short Pan head Screw M3.5 x 15 mm Long Pan head Screw M3.5 x 20 mm Large Flat Washer Ø6 x Ø19 x T2 mm Medium Allen Bolt M6 x 25 mm Long Allen Bolt M6 x 50 mm H-10... -
Page 5: Assembly Preparation
Assemble on a clean non-marring surface (packing foam). Save all packaging until finished. In case of missing parts, please contact your nearest World Market store or call our customer service call center at call 1-877-967-5362. WARNING: Small parts are a choking hazard. Adult Supervision is required before, during, and after assembly. -
Page 6: Assembly Steps
Assembly Steps Step 1 (H-2) Cam Screw x 10 (T-3) Phillips Screwdriver Step 1.1: FRONT OF PANELS Step 1.2: Make sure Cam Screws are tightened fully as shown IMPORTANT: Please make note of the different hardware sizes and ensure you are using the correct size hardware (bolts, screws, and washers) for each step. - Page 7 Step 2.1 Front Using a second person to assist you, attach Back Support (B) to Left/ Right Side Frame (G-1/ G-2) by inserting previously installed Cam Screws (H-2) and dowels into receiving holes. Be careful with the hinges so they are not damaged, or damage the floor.
- Page 8 Step 2.3 (H-1) Cam Lock x 2 (T-1) Allen key Front Follow arrow direction Follow arrow direction Install Cam Locks (H-1) into the corresponding holes along Back Support (B) as illustrated. Make sure arrows on Cam Locks point to the Cam Screws (H-2) upon insertion. Secure all Cam Locks (H-1) using Allen Key (T-1), turning them clockwise until they are snug.
- Page 9 Step 4 (H-11) Medium Flat Washer x 9 (H-8) Medium Allen Bolt x 1 (H-9) Long Allen Bolt x 8 (T-1) Allen Key x 1 (H-10) Lock Washer x 9 IMPORTANT: Please make note of the different hardware sizes H-11 and ensure you are using H-10 the correct size hardware...
- Page 10 Step 6 (T-2) Triangle (H-5) Short Pan Head Screw x 24 (H-6) Long Pan Head Screw x 4 (T-3) Phillips Screwdriver (H-7) Large Flat Washer x 4 90° Triangle Front Position Left Back Panel (M-1) and Right Back Panel (M-2) onto assembly as shown. Make sure both panels are oriented correctly (Connecting Bolt from previous step should point toward the top).
- Page 11 Step 8 Front Using a second person to assist you, carefully turn the assembled unit upright as shown. Position and secure Left Doors A/ B (J-1/ J-3) and Right Doors A/ B (J-2/ J-4) in the correct placements and secure to assembly by inserting pre-installed male hinges into female hinges as shown.
- Page 12 Step 10: Leveling Instruction ADJUSTABLE LEVELER NOTE: Levelers can be used for adjustment if needed. If RIGHT DOOR appears higher than Adjust the FRONT LEFT leveler until doors are even. the LEFT DOOR LEFT RIGHT DOOR DOOR If LEFT DOOR appears higher than Adjust the FRONT RIGHT leveler the RIGHT DOOR until doors are even.
-
Page 13: Care And Maintenance
Do not write on furniture without a padded barrier to protect the surface. Do not place furniture outside. For indoor use only. All products sold at World Market are not for commercial use and are intended for residential use only. - Page 14 Anti-Tip Measures Warning - Children may be injured by tipping of furniture and the use of the Anti-Tip Kit is highly recommended. This Anti-Tip Kit is only a deterrent It is not a substitute for proper adult supervision. Manufacturer and retailer assumes no liability for improper installation or excess loads placed on screws, brackets, or straps.
- Page 15 Customer Service Call Center, Toll Free at 877-967-5362. For valid warranty claims, World Market will repair or replace the product, or offer a full or partial credit, in the sole discretion of World Market. This LIMITED ONE-YEAR WARRANTY gives you specific legal rights and you may also have other rights which vary from state to state.
