hardware lists, assembly steps, anti-tip kit info (if applicable), care & maintenance and warranty info.
Cover page - for furniture goods that require customer level assembly. A/I are cover page, components and
Assembly Instructions

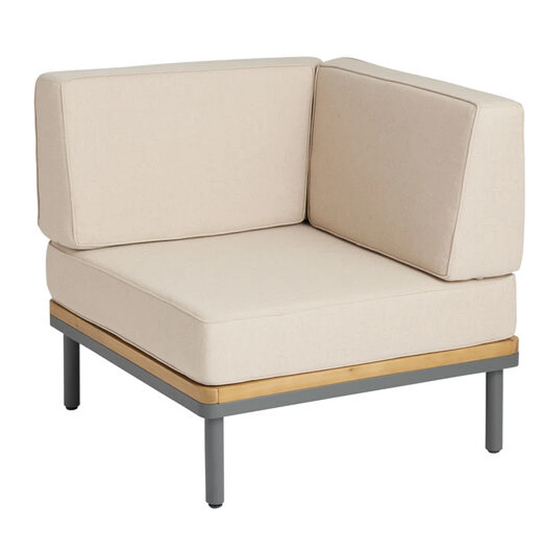

Andorra Corner
SKU 629622/629667
Thank you for your purchase. If you have any questions pertaining to the assembly of this
furniture piece, please contact the nearest World Market store. If you are not near a store,
please call our customer service call center toll free at 877-967-5362 for assistance.
ALL PRODUCTS SOLD AT WORLD MARKET ARE NOT
FOR COMMERCIAL USE AND ARE INTENDED FOR
RESIDENTIAL USE ONLY.
2023. 09.11
PAGE 1
V
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for World Market Andorra 629622
Summary of Contents for World Market Andorra 629622
- Page 1 Thank you for your purchase. If you have any questions pertaining to the assembly of this furniture piece, please contact the nearest World Market store. If you are not near a store, please call our customer service call center toll free at 877-967-5362 for assistance.
- Page 2 Component List Seat Frame Backrest Frame Right Back Cushion Left Back Cushion Seat Cushion Strap Connector Hardware List Allen Bolt (M8x80)mm Flat Washer (M8x1.2)mm Spring Washer M8 Hexagonal Nut M8 Plastic Flat Washer Tool List Allen Key Wrench 13 2023. 09.11 PAGE 2...
- Page 3 Assemble on a clean non-marring surface (such as the product’s packing foam). Do not discard any packaging until the product has been fully assembled. In case of missing parts, please contact your nearest World Market store or call our customer service call center at 1-877-967-5362.
- Page 4 Assembly Steps Step 1 (H-5) Plastic Flat Washer x 4 Clockwise Using a second person to assist you, place Seat Frame (A) upside down onto a padded, non-marring surface. Position the corner Legs (C) on Seat Frame (A) as shown. Position the Plastic Flat Washers (H-5) between the legs and the seat frame and tighten by turning clockwise.
- Page 5 Assembly Steps Step 3 Velcro Position Seat Cushion (F) into position as shown, ensuring the zipper faces down. Secure using the preattached Velcro straps to the bottom rail of the Backrest Frame (B). Position the Back Cushions (E), (D) into position as shown, ensuring the zipper faces down and the angles surface faces to the front.
- Page 6 Assembly Steps Step 5 If joining with with a partnering piece, place both assemblies side by side in your desired orientation. Secure together by threading two provided Strap Connectors (G) through the webbing and around each frame, one toward the front of the frames and one toward the back.
- Page 7 2023. 09.11 PAGE 7...
- Page 8 2023. 09.11 PAGE 8...
