R
Assembly Instructions

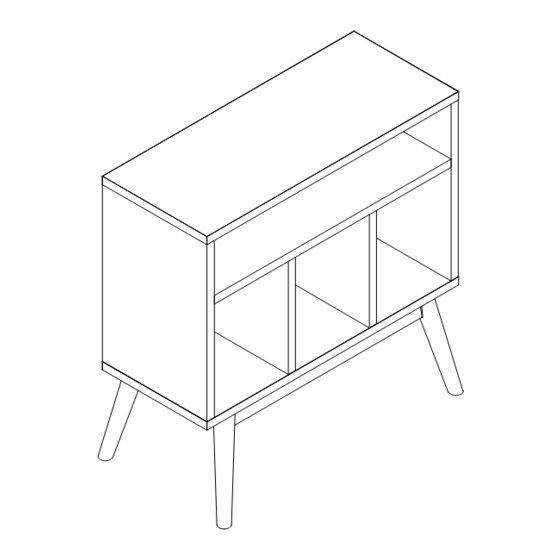

Jagger Record Cabinet 36''W
SKU 626728
Thank you for your purchase. If you have any questions pertaining to the assembly of this
furniture piece, please contact the nearest World Market store. If you are not near a store,
please call our customer service call center toll free at 877-967-5362 for assistance.
ALL PRODUCTS SOLD AT WORLD MARKET ARE NOT
FOR COMMERCIAL USE AND ARE INTENDED FOR
RESIDENTIAL USE ONLY
2023.07.27
PAGE 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Jagger 626728 and is the answer not in the manual?

Questions and answers

Related Manuals for World Market Jagger 626728

Summary of Contents for World Market Jagger 626728

  • Page 1 Thank you for your purchase. If you have any questions pertaining to the assembly of this furniture piece, please contact the nearest World Market store. If you are not near a store, please call our customer service call center toll free at 877-967-5362 for assistance.

  • Page 2: Component List

    Component List Q.TY LABEL PICTURE DESCRIPTION Top Frame FRONT Bottom Frame FRONT Left Side Frame FRONT Right Side Frame FRONT Left Divider Frame FRONT Right Divider Frame FRONT Mid Back Rail FRONT Fixed Shelf FRONT Back Panel FRONT PAGE 2...

  • Page 3: Hardware List

    Hardware List Q.TY LABEL PICTURE DESCRIPTION Cam lock Ø15 mm Cam Screw Connecting Screw M7 x 50 mm Pan head Screw M3.5 x 25 mm Flat Washer Ø8 x Ø16 x T2 mm Lock Washer Ø8 x Ø13 x T2 mm Nut M8 x 13 mm Wood Screw M4 x 35 mm Anti Tip-kit...

  • Page 4: Assembly Preparation

    Assemble on a clean non-marring surface (such as the product's packing foam). Do not discard any packaging until the product has been fully assembled. In case of missing parts, please contact your nearest World Market store or call our customer service call center at call 1-877-967-5362.

  • Page 5: Assembly Steps

    Assembly Steps Step 1 (H-2) Cam Screw x 14 (T-4) Phillips Screwdriver FRONT OF PANELS Step 1.2: Step 1.1: Step 1.3: FRONT Make sure Cam Screws are tightened fully as shown IMPORTANT: Please make note of the different hardware sizes and ensure you are using the correct size hardware (bolts, screws, and washers) for each step.
  • Page 6 Step 2 (H-8) Wood Screw x 2 (T-4) Phillips Screwdriver FRONT Position Mid Back Rail (E) with Fixed Shelf (F) by inserting pre-installed dowels into the corresponding holes. Secure Mid Back Rail (E) to Fixed Shelf (F) with Wood Screws (H-8) using Phillips Screwdriver (T-4; not included).
  • Page 7 Step 4 FRONT Using a second person to assist you, carefully turn assembly as shown above. Install Back Panel (G) into the inner groove of the Fixed Shelf (F) and make sure Back Panel (G) is oriented correctly. Step 5 (H-1) Cam Lock x 4 (T-1) Allen key Follow Arrow...
  • Page 8 Step 6 (H-3) Connecting Screw x 8 (T-1) Allen key FRONT Carefully position Bottom Frame (B) with assembly, making sure it is oriented correctly. Secure Bottom Frame (B) to assembly by first engaging all Connecting Screws (H-3) then fully tightening each one using provided Allen Key (T-1).
  • Page 9 Step 8 (T-1) Allen key (T-4) Phillips Screwdriver (H-1) Cam Lock x 2 (H-4) Pan Head Screw x 4 FRONT Step 8.2: Step 8.1: Follow arrow direction Step 8.1: Using a second person to assist you, carefully position assembly with the back facing up. Insert Cam Locks (H-1) into holes in Mid Back Rail (E), ensuring that the arrows of the Cam Locks (H-1) are pointing toward their corresponding Cam Screws (H-2) upon insertion.
  • Page 10 Step 10 ADJUSTABLE LEVELER Levelers are located on the bottom of each Leg and may be used for additional adjustment if needed for uneven surfaces. Using a second person to assist you, carefully turn The Assembled Unit upright. Assembly is now complete and the product is ready for use. Adjustable levelers are located on the bottom of each leg and may be adjusted by turning outwards, counter-clockwise to help account for uneven surfaces.
  • Page 11 Anti-Tip Measures WARNING Furniture tip overs can result in death or serious injuries. To reduce the likelihood of tip over, this product should be used with the enclosed Anti-Tip Kit. This Anti-Tip Kit is only a deterrent. It is not a substitute for proper adult supervision. Manufacturer and retailer assume no liability for improper installation or excess loads placed on screws, brackets, or straps.
  • Page 12 DO NOT EXCEED RECOMMENDED LOAD. Use with products heavier than the maximum sizes and weights indicated may result instability causing possible injury. Do not allow children under 10 year to move unit. Manufactured for: World Market SKU#: 626728 DO NOT REMOVE THIS LABEL...

  • Page 13: Care And Maintenance

    Place heaviest items in the lowest drawers. Not intended for clothing storage use. All products sold at World Market are not for commercial use and are intended for residential use only. Care & Maintenance DO NOT put hot items directly on furniture surface.
  • Page 14 Customer Service Call Center, Toll Free at 877-967-5362. For valid warranty claims, World Market will repair or replace the product, or offer a full or par�al credit, in the sole discre�on of World Market. This LIMITED ONE-YEAR WARRANTY gives you specific legal rights and you may also have other rights which vary from state to state.
