Assembly Instructions

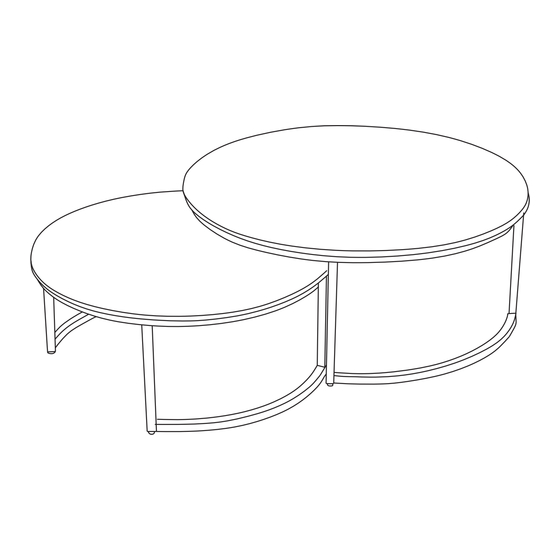

Zanotti Coffee Table
SKU 629628
Thank you for your purchase. If you have any questions pertaining to the assembly of this
furniture piece, please contact the nearest World Market store. If you are not near a store,
please call our customer service call center toll free at 877-967-5362 for assistance.
ALL PRODUCTS SOLD AT WORLD MARKET ARE NOT
FOR COMMERCIAL USE AND ARE INTENDED FOR
RESIDENTIAL USE ONLY.
2023.10.19
Page 1
Advertisement
Table of Contents
Related Manuals for World Market Zanotti 629628
Summary of Contents for World Market Zanotti 629628
- Page 1 Thank you for your purchase. If you have any questions pertaining to the assembly of this furniture piece, please contact the nearest World Market store. If you are not near a store, please call our customer service call center toll free at 877-967-5362 for assistance.
-
Page 2: Component List
Component List LABEL PICTURE DESCRIPTION Large Tabletop Long Leg Large Curved Base Small Tabletop Short Leg Small Curved Base Hardware List LABEL PICTURE DESCRIPTION Long Allen Bolt (M6x30)mm Short Allen Bolt (M6x20)mm Flat Washer (M6x1)mm Spring Washer M6 Tool List LABEL PICTURE DESCRIPTION... -
Page 3: Assembly Preparation
Assembly Preparation Before Beginning: Page 3... -
Page 4: Assembly Steps
Assembly Steps Step 1 (H-2) Short Allen Bolt x 8 (H-3) Flat Washer x 8 (H-4) Spring Washer x 8 (T-1) Allen Key x 1 Turn Large/Small Tabletop (A/D) upside down onto a clean, non marring surface. Place Leg (B) in corresponding positions on bottom of Large Tabletop (A) and Leg (E) for Small Tabletop (D). - Page 5 Assembly Steps Step 2 (H-1) Long Allen Bolt x 8 (H-3) Flat Washer x 8 (H-4) Spring Washer x 8 (T-1) Allen Key x 1 Position each Large Curved Base (C) with the assembled Long Legs (B) on the Large Tabletop (A) and each Small Curved Leg (F) with the assembled Short Legs (E) on the Small Tabletop (D) as shown.
- Page 6 Assembly Steps Step 3 ADJUSTABLE LEVELER Levelers are located on the bottom of each leg and may be used for adjustment if needed for uneven surfaces. Option A Option B Turn assembly right side up. The Tables are designed to be nested in two ways. For Option B, the LARGE TABLE must be lifted and places on top of the SMALL TABLE.
- Page 7 Page 7...
- Page 8 Page 8...
